Z1p

Handheld | TETRA

Highlights

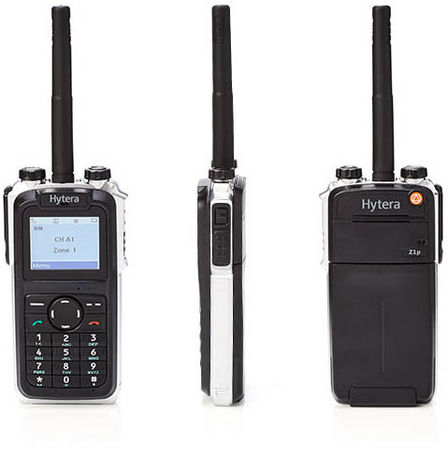

diagram indicating highlights of Z1p

Innovative Design

At only 23 mm thick, this small handheld radio is perfectly suited to concealed applications. A strategically placed emergency button and mic allow for the screen to be concealed and optional covert audio accessories complete the covert communication package

Robust and Reliable

Dustproof and waterproof (IP67), withstanding submersion in 1 metre of fresh water for a duration of up to 30 minutes, the Z1p meets the requirements to operate outdoors

Secure Communication

TETRA security features (such as End-to-End encryption) and in-built tamper proofing protect against direct attacks, ensuring your radio communication is reliably protected

Versatile Operation

The Z1p provides rapid access to the TETRA radio network in trunked mode (TMO), communicates between radios in direct mode (DMO) and can also boost the area of operation via DMO Repeater mode (licensed).

Voice and Data Services

Thanks to the integrated GPS function precise positioning is available, as well as many other voice and data services according to the TETRA standard

Functions

Created with Sketch. RF Power

High 3W transmit power to improve coverage without the need for an additional license.

Created with Sketch. Full Call Out

Use the radio as a pager with integrated resource management function.

Created with Sketch. OTAP (Over The Air Programming)

Make adjustments to the existing programming of the radio using the free OTAP application.

Created with Sketch. Status Remote Control

Control the radio remotely by sending it specific status messages.

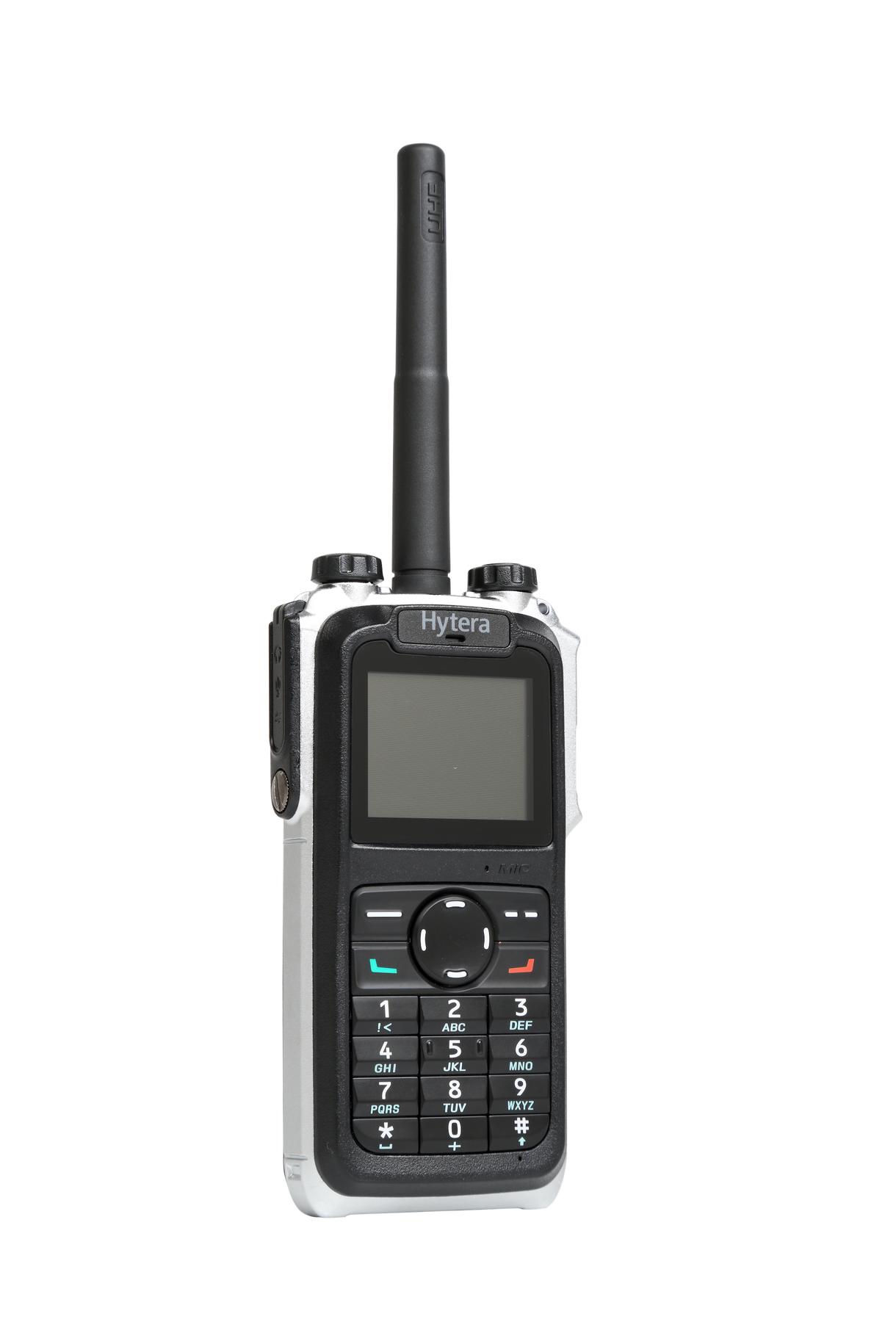

Z1P 9

Created with Sketch. Passwords, PINs and Encryption

Protect your workforce against eavesdropping or "man in the middle" attacks by applying a PIN/PUK at switch on, protect the programming with a password and use Air Interface Encryption and End to End Encryption.

Created with Sketch. Man Down

Keep your workforce safer and let the radio generate an alarm when it does not move or is tilted over the programmed angle.

Accessories for Z1p

Included as standard with Z1p Included as standard with Z1p

Antenna

Battery

Charger & Power

Audio

Car Kit

Carrying

Cables

Mounting

Related products that work with the Z1p

Technical Specifications

General

Frequency Range
F1 : 320 - 380MHz F3 : 380 - 430MHz F4 : 405 - 475MHz F5 : 806-870 MHz
Battery Life
1400mAh, 16hr
Dimensions(W×H×D)
120 x 58 x 23 (mm)
Weight
268g (with standard battery and antenna,metal ) 255g (with standard battery and antenna)
Display
160 x 128 pixels, 65536 colors 1.8 inch, 4 rows
Keypad
Full Keypad
Programmable Buttons
23

Environmental Specifications

Dust & Water Intrusion
IEC60529, IP67

Voice calls

Individual, Hooking
YES
Individual, non-Hooking
YES
Group, with Late Entry, TPID
YES
Notification Talkgroups
YES
Priority calls (group/indiv, HD/FD), 15 levels incl pre-emption
YES
via Repeater
YES
Repeater Type 1A, single call single frequency
YES
Repeater SDS and Status
YES
Repeater Air Interface Encryption DMO-2C
YES
Repeater Call Initiate and Participate
YES
via Gateway
YES
Full Duplex
YES
Telephony: PSTN, PABX, DTMF
YES
Phonebook restricted individual calls
YES
Broadcast
YES
Open group Call (DMO)
YES
DGNA
YES
DGNA "drag and drop"
YES
CAD (Call Authorised by Dispatcher)
YES
Standard DMO and TMO Folders
YES
Favourite folder (TMO & DMO mixed)
YES
Audio Profiles (Silent, Normal, Loud etc)
YES

User Safety and convenience

Lone Worker
YES
Man Down
YES
(Silent) Emergency call to Selected group
YES, with hotmic
Emergency Status
YES
Emergency Protect mode
YES
Emergency call via gateway or repeater
YES
Tactical Emergency (to predefined group)
YES
GPS, LIP and NMEA
YES
GPS Triggers (distance, time, status, Emergency, TX-I etc)
YES
GPS Overspeed alarm
YES
GPS via repeater or gateway
YES
GPS Route Trace (display distance and relative speed)
YES
Ambiance Listening
YES
Bluetooth
YES
Vibrate
YES
RUA (Radio User Aliasing)
YES
Low battery Alert
YES
No Coverage' Alert
YES
CallOut (Full)
YES
Configurable Keypad Lock
YES
Transmit Inhibit (TX-I) (with status)
YES
Group Change Voice broadcast
YES
Multiple Menu languages
YES
Time Synchronisation with GPS or Network time
YES
Customised Menu items
YES
Startup Logo & Screensaver Logo
YES
Customisable Alert tones
YES
Rugged accessory connector for accessories
YES

Data

Send & Receive Status, shortcut keys
YES
Send & Receive SDS, shortcut keys
YES
SDS-1, 2, 3, 4, TL
YES
Flash SDS / Status, with Timer, initiate and/or receive
YES
Long text message (TMO)
YES
Status Remote Control
YES
Short Data Template (TMO)
YES
Work Order (TMO)
YES
OTAP(Over The Air Programming) (TMO)
YES
Packet Data, Single Slot (TMO)
YES
Packet Data, Multi Slot (TMO)
YES
Packet Data User Authentication
YES
Peripheral Equipment Interface (PEI)
YES
WAP (TMO)
YES
Circuit Mode Data (TMO)
YES
JAVA Platform 2.0 (TMO)
YES

Network operation

Fallback
YES
Energy Economy mode
YES
Seamless Cell Reselection
YES
Multiple Networks
YES
Automatic Network Selection
YES

Security

Authentication
SWMI Initiated
Mutual Authentication (SWMI Initiated)
Mutual
Air Interface Encryption Classes
Classes 1,2, 3 and 3G
Air Interface Encryption Keys
SCK, DCK, CCK, GCK
Air Interface Encryption OTAR
OTAR of SCK, CCK and GCK
Air Interface Encryption Algorithms
Clear, TEA1, TEA2, TEA3, TEA4
Temporary Enable / Disable
YES
Permanent Disable
YES
End to End Encryption - Embedded AES128 / AES256
YES
End to End Encryption - SIM Card
YES
End to End Encryption - Voice calls
YES
End to End Encryption - SDS
YES
PIN & PUK
YES
Password Protected programming
YES
Encrypted TEI query
YES
