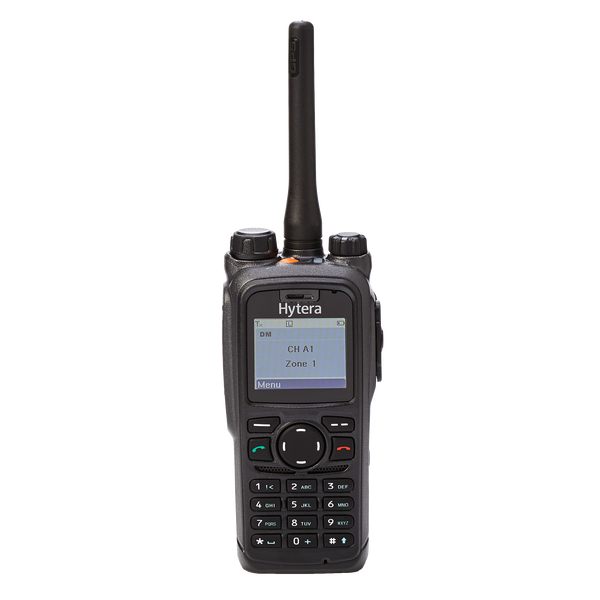

PT580H Plus UL913

Handheld | TETRA

Highlights

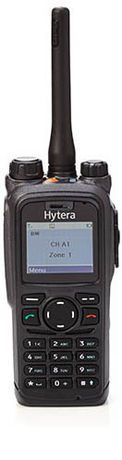

diagram indicating highlights of PT580H Plus UL913

Versatile Operation

The PT580H Plus UL913 provides rapid access to the TETRA radio network in trunked mode (TMO), communicates between radios in direct mode (DMO) and can also boost the area of operation via DMO Repeater mode (licensed)

Safer Workforce

Protecting the user with lone worker, man down alarm and emergency alarm features

Dustproof and Waterproof

IP67 rating for ingress protection, withstanding submersion in 1 metre of fresh water for a duration of up to 30 minutes

Voice and Data Services

Thanks to the integrated GPS function precise positioning is available, as well as many other voice and data services according to the TETRA standard

Clear Communication

The PT580H Plus features an advanced audio chip with the latest noise cancelling capability. Users working in noisy environments therefore benefit from excellent audio quality

Functions

Created with Sketch. Reception Performance Improvement

2dB of receiver sensitivity improvement via the hardware optimization.

Created with Sketch. Voice Improvement

Using unique AGC algorithm with fast automatic adjustment.

Created with Sketch. GPS Improvement

Tracking sensitivity is up -165dBm to ensure the positioning ability is more stable, hot start time is 1 sec.

Created with Sketch. Noise Cancelling

Noise cancelling chip ensures voice is clearer under noisy environments,

Accessories for PT580H Plus UL913

Included as standard with PT580H Plus UL913 Included as standard with PT580H Plus UL913

Systems that work with PT580H Plus UL913

Technical Specifications

General Specification

Frequency Bands
380-430MHz / 405-475MHz / 806-870MHz
Dimensions (HxWxD)
127.5 x 55 x 43.mm
Weight
408g(with battery and antenna)
Battery
2400mAh Li-Ion battert
Battery Life ( TMO 5-5-90 duty cycle)
> 24 Hours (2400mAh)
Operating Voltage
7.4V

User Interface

LCD Color Display
1.8inch, 160*128 pixels, 65536 colors
Talkgroup-TMO
6000
Talkgroup-DMO
4000
Phone Book
2000
lnbox
400
Outbox
50
Drafts
50
Folder-TMO
200
Folder-DMO
50
State Message
200

RF Specification

RF Channel Bandwidth
25KHz
RF Power Output
1W
RF Power Level Accuracy
±2dB
RF Power Control
5dB per step, 4 levels and 3 steps in total
Receiver Class
ETSI EN 392-2/396-2 Class A & Class B
RX Static Sensitivity
≤-116dBm(typical-118dBm) 806-870MHz: ≤-115dBm(typical-116dBm)
RX Dynamic Sensitivity
≤-107dBm(typical-109dBm) 806-870MHz: ≤-106dBm(typical-107dBm)
Audio Power Output
2W

GPS Specifications (For the Model with GPS)

Sensitivity
< -146dBm Acquisition Sensitivity < -165dBm Tracking Sensitivity
Horizontal Position Accuracy
≤2.5m (50% probable)@-130dBm
Cold Start (Time to First Fix)
35s
Hot Start (Time to First Fix)
1s
Note
Conditions: Open Sky environment, 130dBm signal strength, 24H static

Environmental

Operating Temperature
-30°C - +60°C (non-hazardous environment) -30°C - +55°C (hazardous environment)
Storage Temperature
-40°C - +85°C
Humidity
ETS 300 019 -1-7 Class 7.3E; MIL-STD 810G
Water and Dust Protection
IP65/66/67/68 Per IEC60529
Drop, Shock & Vibration
ETS 300 019 -1-7 Class 5M3; MIL-STD 810 G GJB150A-2009
