EAN18

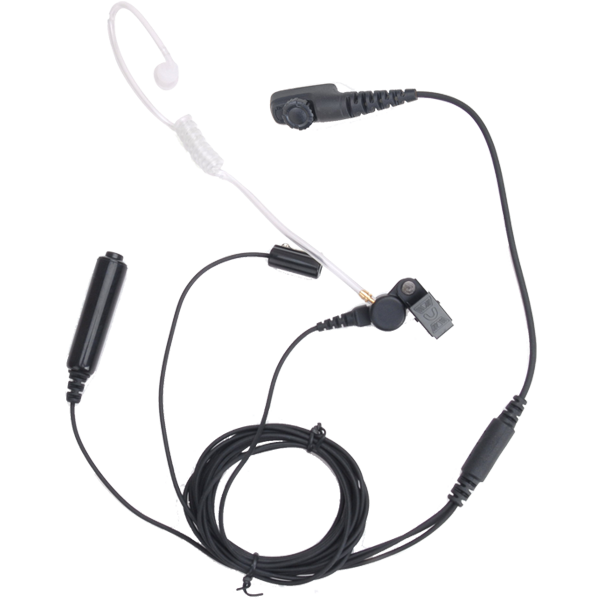

3-Wire Earpiece with Acoustic Tube, Microphone and PTT (Black)
3-wire earpiece with detachable acoustic tube, clip, separate PTT and microphone for discreet communication (Black)
Highlights
Functions
Technical Specifications
Specifications
- Weight
- about 50 g
- Color
- black
- PTT key
- available
- VOX
- none
- Emergency Key
- none
- Radio connector
- 16-pin
- Microphone sensitivity
- –42 ±3 dB @ 1 kHz 3.0 V 2.2 kOhm, 0 dB = 1 V/Pa
- Speaker power
- 10 mW (rated); 300 mW (max.)
- Speaker impedance
- 220 Ω ±15% @ 1 kHz
- Speaker frequency response
- 117 ±3 dB @ 1 kHz at 10 mW
- Ingress protection
- IP54
- Operating temperature
- –20℃ to 60℃
- Storage temperature
- –20℃ to 80℃
- Suitable radios
- PD705, PD705G, PD755, PD755G, PD785, PD785G, PD985, PT560H, PT580H, PT580H Plus
