PT580H PLUS S

Handheld | TETRA

Highlights

diagram indicating highlights of PT580H PLUS S

Versatile Operation

The PT580H Plus S provides rapid access to the TETRA radio network in trunked mode (TMO), communicates between radios in direct mode (DMO) and can also boost the area of operation via DMO Repeater mode (licensed)

Safer Workforce

Protecting the user with lone worker, man down alarm and emergency alarm features

Dustproof and Waterproof

IP67 rating for ingress protection, withstanding submersion in 1 metre of fresh water for a duration of up to 30 minutes

Voice and Data Services

Thanks to the integrated GPS function precise positioning is available, as well as many other voice and data services according to the TETRA standard

Clear Communication

The PT580H Plus features an advanced audio chip with the latest noise cancelling capability. Users working in noisy environments therefore benefit from excellent audio quality

Functions

Created with Sketch. RF Power

High 3W transmit power to improve coverage without the need for an additional license.

Created with Sketch. Full Call Out

Use the radio as a pager with integrated resource management function.

Created with Sketch. OTAP (Over The Air Programming)

Make adjustments to the existing programming of the radio using the free OTAP application.

Created with Sketch. Passwords, PINs and Encryption

Protect your workforce against evesdropping or "man in the middle" attacks by applying a PIN/PUK at switch on, protect the programming with a password and use Air Interface Encryption and End to End Encryption.

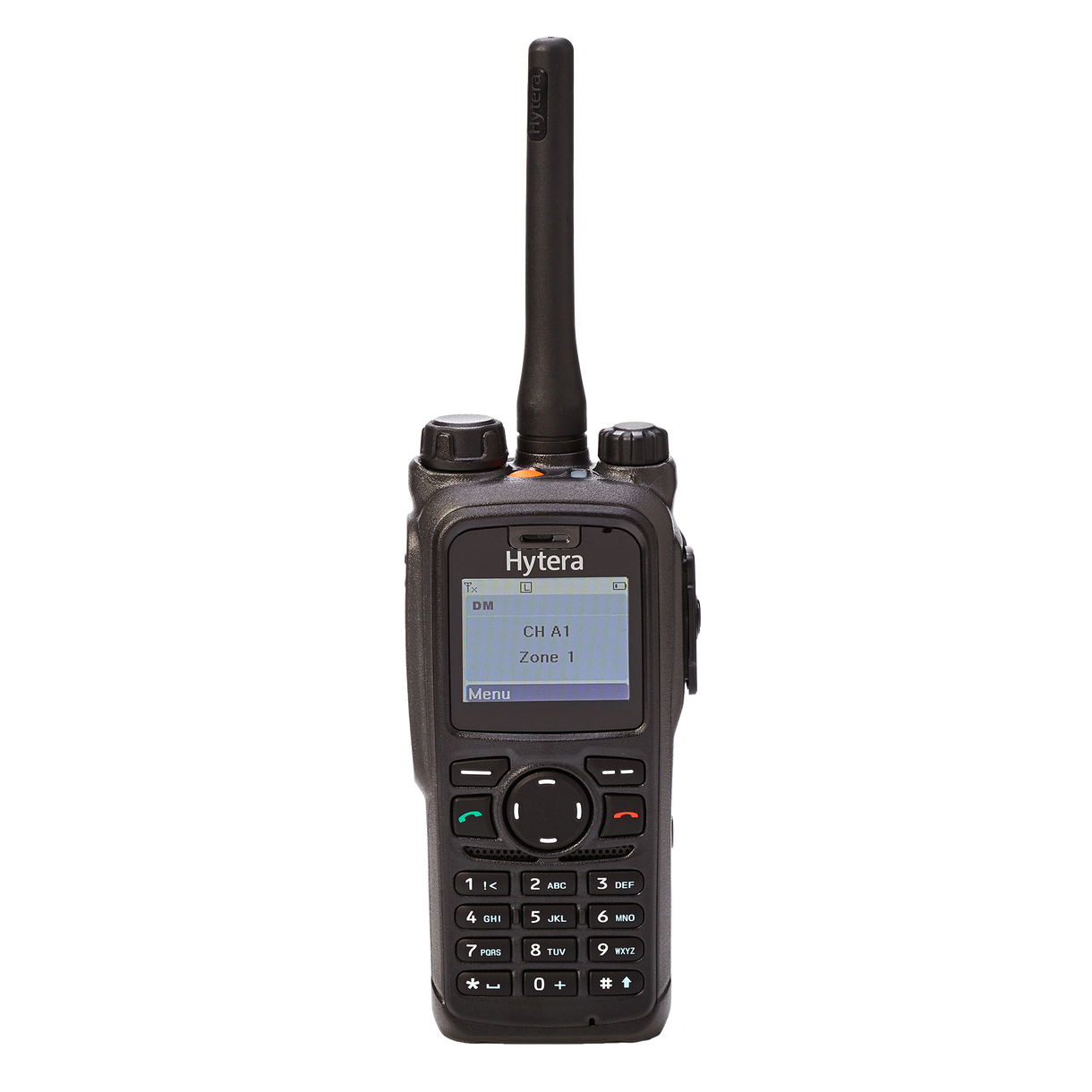

Hytera Pt580 H Plus S 01 Front

Created with Sketch. Status Remote Control:

Control the radio remotely by sending it specific status messages.

Created with Sketch. Man Down

Keep your workforce safer and let the radio generate an alarm when it does not move or is tilted over the programmed angle.

Accessories for PT580H PLUS S

Included as standard with PT580H PLUS S Included as standard with PT580H PLUS S

Antenna

Battery

Charger & Power

Audio

Car Kit

Carrying

Mounting

Cables

Related products that work with the PT580H PLUS S

Technical Specifications

General

Frequency Range
F1 : 320-380MHz F3 : 380-430MHz F4 : 405-475MHz F5 : 806-870MHz
Battery Life
1800mAh, 20hr
Dimensions(W×H×D)
127.5 x 55 x 36.5 (mm)
Weight
374g (with standard battery and antenna)
Display
160 x 128 pixels, 65536 colors 1.8 inch, 4 rows
Keypad
Full keypad
Programmable Buttons
23

User Interface

Display
1.8inch, 160*128 pixels, 65536 colors
Talk Group-TMO
6000
Talk Group-DMO
4000
Telephone book
2000
Inbox
400
Outbox
50
Drafts
50
Folder-TMO
200
Folder-DMO
50
State Message
200

RF Specifications

Channel Bandwidth
25KHz
RF Power Output
3W(1.8W For 806-870MHz)
RF Power Level Accuracy
±2dB
RF Power Control
5dB per step, 5 levels and 4 steps in total
Receiver Class
ETSI EN 392-2/396-2 Class A and Class B
RX Sensitivity(Static)
≤-116dBm(typical-118dBm) 806-870MHz: ≤-115dBm(typical-116dBm)
RX Sensitivity(Dynamic)
≤-107dBm(typical-109dBm) 806-870MHz: ≤-106dBm(typical-107dBm)
Audio Power Output
2W(Peak 3W)

GPS Specifications (For the Model with GPS)

RX Sensitivity
Acquisition sensitivity: -146dBm Tracking sensitivity: -165dBm
Horizontal Position Accuracy
≤2.5m (50% probable)@-130dBm
Cold Start (Time to First Fix)
<35s
Hot Start (Time to First Fix)
<1s
Note
Conditions: Open Sky environment, 130dBm signal strength, 24H static

Environmental

Operating Temperature
-30℃ ~ +60℃
Storage Temperature
-40℃ ~ +85℃
Humidity
ETS 300-019-1-7 Class 7.3E MIL-STD-810 G
Dust & Water Protection
IP65/66/67/68 Per IEC60529
Vibration,Drop & Shock
MIL-STD-810 G ETS 300-019-1-7 Class 5M3 GJB150A-2009
