PT590

Handheld | TETRA

Highlights

diagram indicating highlights of PT590

    Functions

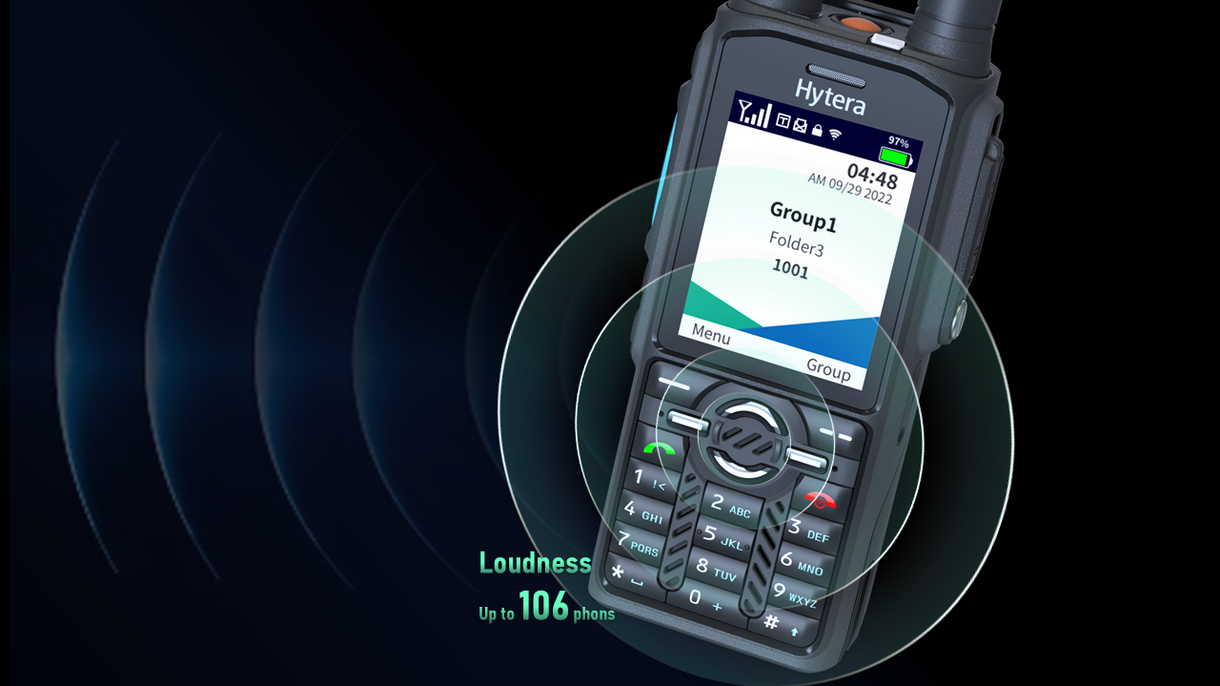

    Created with Sketch. Superior Audio Quality

    PT590 equips a powerful loudspeaker which has an innovative acoustic cavity design and a large acoustic aperture for 106 phons of audio loudness. It can help users to hear clear sounds even in a noisy environment. Water porting technology is also used to drain out any water that gets into the speaker cavity, ensuring the audio clarity is maintained. AI-based noise cancellation technology can decrease 30dB background noise and howling. No matter what noise environment the calling party is in, it ensures that the called party hears a clear sound.

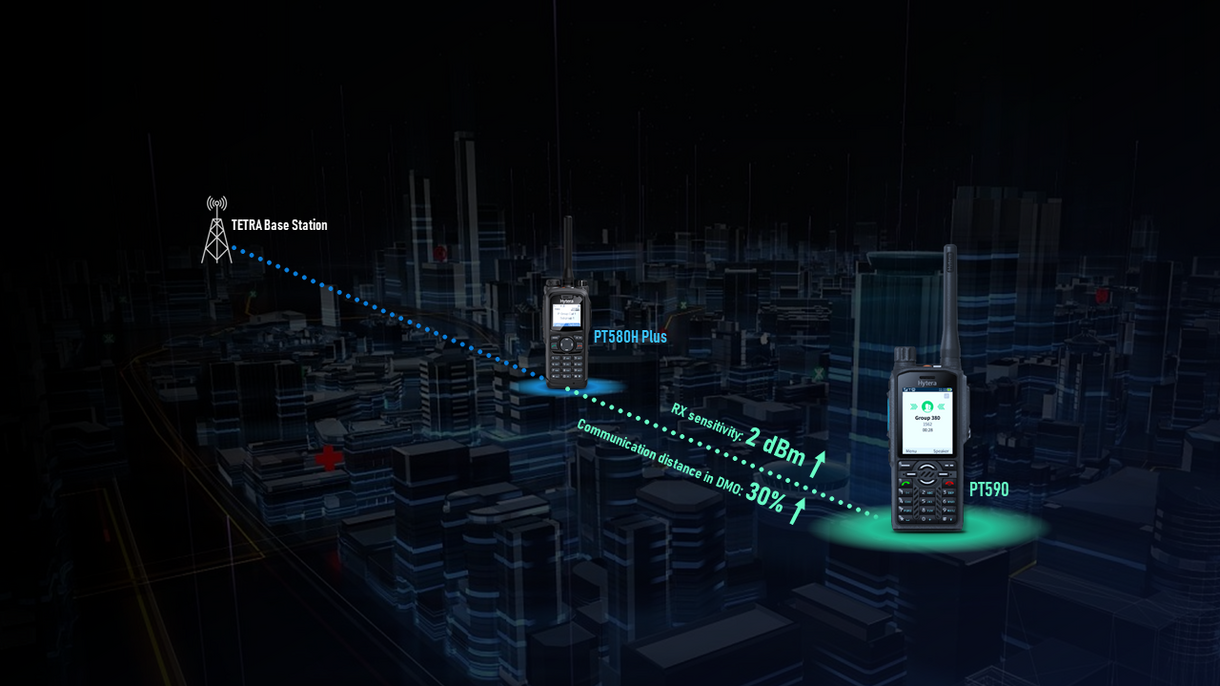

    Created with Sketch. Extended Radio Range

    The PT590 is trustworthy when your personnel take it and go out for work. With sustained and stable Class 3 (3 W) transmitting power and industry-leading receiving sensitivity (–120 dBm), the PT590 provides stable communications without losing any information even at a distance or in the edge area. Your personnel always keep connected anywhere and anytime.

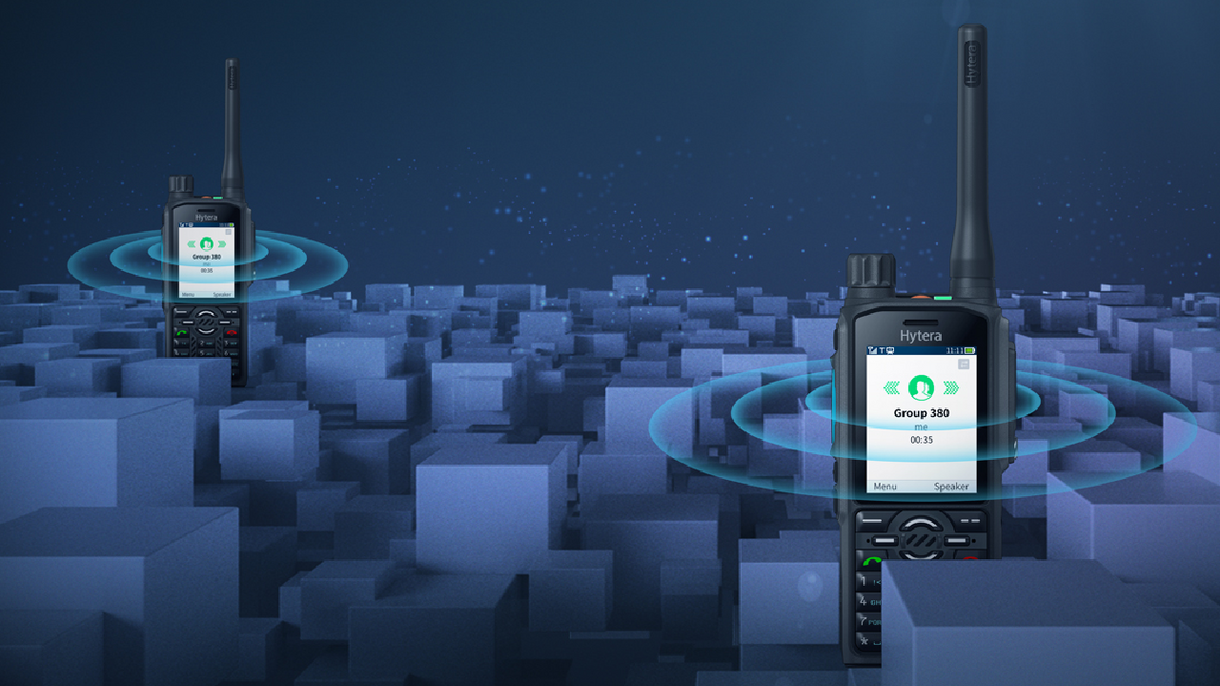

    Created with Sketch. Accurate Positioning

    The PT590 applies dual-frequency positioning technology unprecedentedly. By receiving and processing satellite signals in two frequency bands at the same time, it effectively compensates and corrects the signal distortion that occurs after the satellite signal passes through the atmosphere. As a result, the PT590 positioning accuracy is improved to an industry-leading level—within 1 meter.

    Icon 24px Created with Sketch. Better User Friendliness

    Delightfully light and surprisingly slim, this radio is just 285 g in weight and 31 mm in depth. It is easy to carry all day long and comfortable to operate with one hand. The large, textured PTT button and the independent four navigation keys are more finger-friendly. The three programmable buttons can be optionally set as quick access to frequently used features with a single press. The 2.4-inch LCD screen of the PT590 is semi-transparent and semi-reflective, ensuring clear readability in direct sunlight and reducing eye strain. The PT590 abandons the traditional list-style menu and has a new friendly UI design. The 9-grid menu design helps your personnel get immediate access to the function.

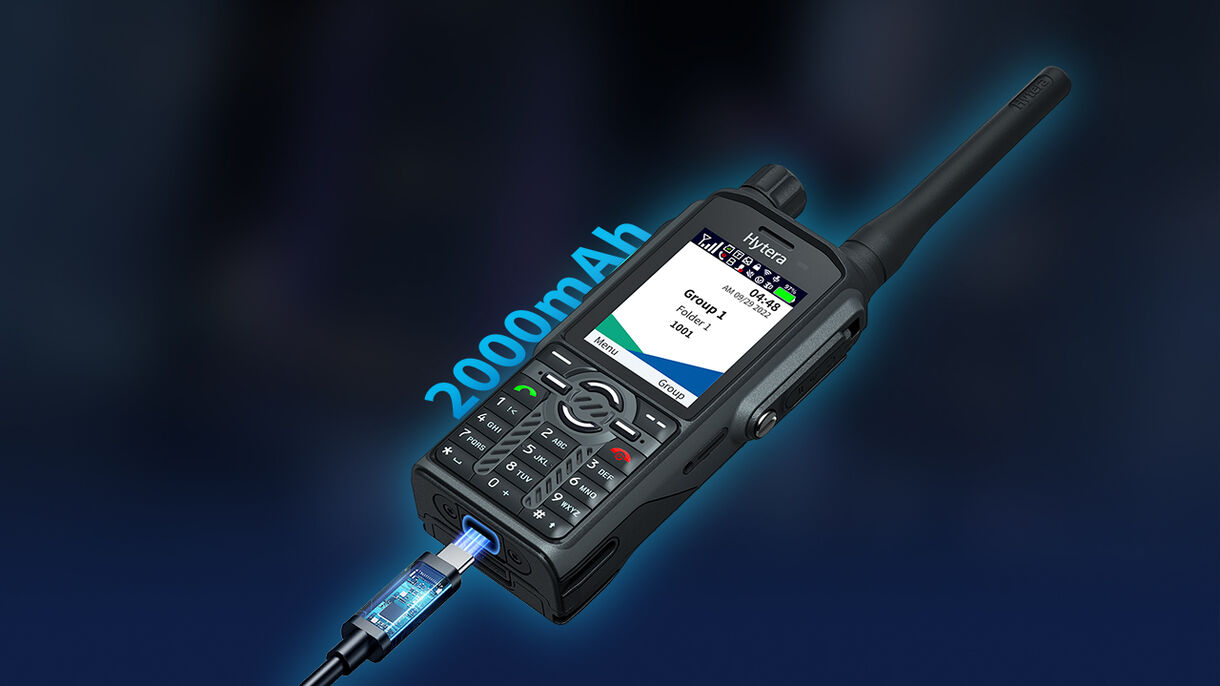

    Created with Sketch. Long Lasting Battery

    The 2,000 mAh Li-polymer battery, together with the innovative low power consumption technology, can last up to 22 hours on the 5-5-90 duty cycle. In addition to the traditional charging contacts, the PT590 has an extra USB Type-C port which allows the radio to be charged with mains power or even the power bank anywhere and anytime. The 18 W fast charging can fully charge the PT590 in only 1.5 hours. Even just a 30-minute quick charge can give the PT590 at least 10 hours power for unexpected long shift.

    Created with Sketch. Control Your Radio on Voice*

    We introduced the voice command in the PT590 for the first time. This function supports group call, talk group change, and function switch like turning on BT or location service. So users just stay focused on what they're doing, while making the voice-initiated call. *For future release.

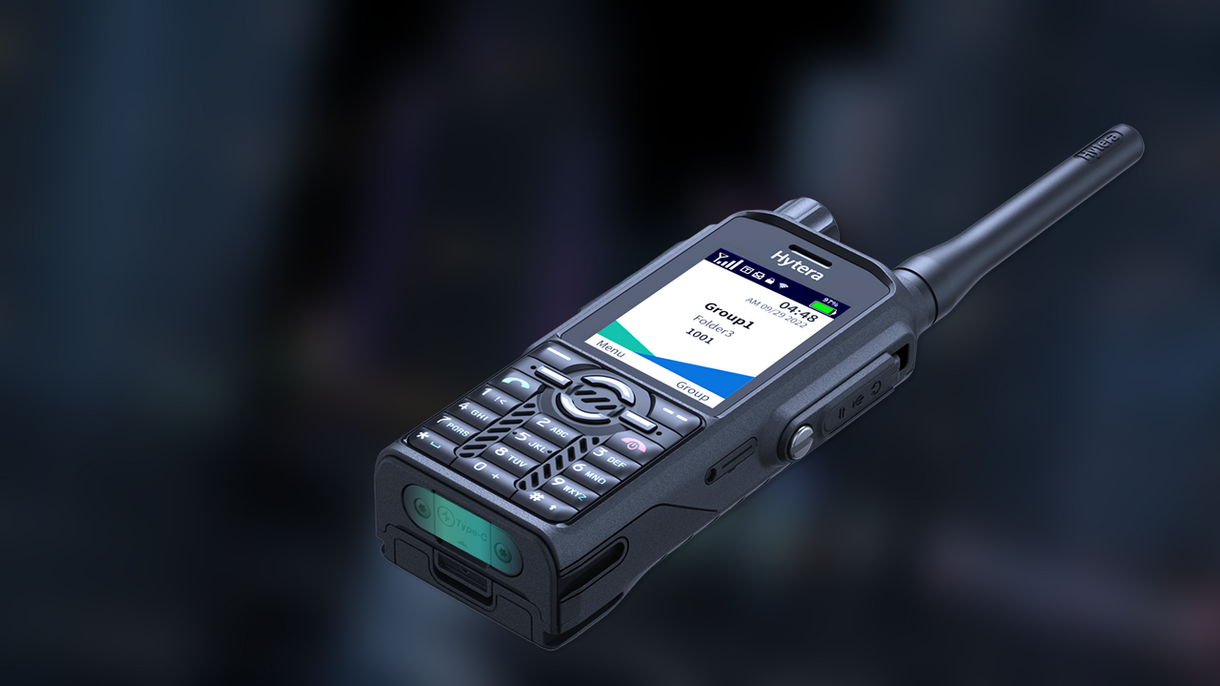

    Created with Sketch. Professional USB Type-C Port

    Besides the charging function, this USB Type-C port provides programming and upgrading functions as well. This unique design brings you unprecedented convenience especially when no programming cable is available at hand. To ensure the reliability of this port, advanced nano-coating technology is adopted to protect the internal structure from corrosion and oxidation. This helps ensure a stable connection after a long time of use.

    Accessories for PT590

    Included as standard with PT590 Included as standard with PT590

    Related products that work with the PT590

    Technical Specifications

    General

    Frequency Range
    Fv: 380-475 MHz
    Dimensions (H×W×D) mm
    125 x 55 x 31 mm
    Weight
    285 g
    Operating Voltage
    7.7 V
    Battery
    2000mAh
    Battery Life (TMO 5/5/90 duty cycle)
    >22 hours

    User Interface

    Display
    2.4 inch, 320*240 pixels, 262K colors
    Talk Group-TMO
    12000
    Talk Group-DMO
    6000
    Telephone book
    2000
    Inbox
    ≤550
    Outbox
    ≤550
    Drafts
    ≤550
    Folder-TMO
    200
    Folder-DMO
    50
    State Message
    200

    RF Specifications

    Channel Bandwidth
    25 kHz
    RF Power Output
    3 W
    RF Power Level Accuracy
    ±2 dB
    RF Power Control
    5 dB per step
    Receiver Class
    ETSI EN 392-2/396-2 Class A and Class B
    RX Sensitivity (static)
    -118 dBm (min)
    -120 dBm (typical)
    RX Sensitivity (dynamic)
    -108 dBm (min)
    -110 dBm (typical)
    Audio Power Output
    2 W (Peak 3 W)

    GPS Specifications

    RX sensitivity
    -149 dBm acquisition sensitivity
    165 dBm tracking sensitivity
    Horizontal position accuracy
    <1.0 m (95% Probable, -130 dBm)
    TTFF (time to first fix) cold start
    <35 seconds
    TTFF (time to first fix) hot start
    <1 seconds
    Conditions:
    Open Sky environment
    -130 dBm signal strength
    24 H static

    Environmental

    Operating temperature
    -20°C to + 60°C
    -30°C to + 70°C (limited performance)
    Storage temperature
    -40°C to + 85°C
    Dust & water protection
    IP65, IP66, IP67, IP68 (2 m, 4 h)
    Humidity
    <95%
    Vibration, drop & shock
    MIL-STD-810 H
    EN300 019-1-7 5M3
    GJB150A
