EAN24-P

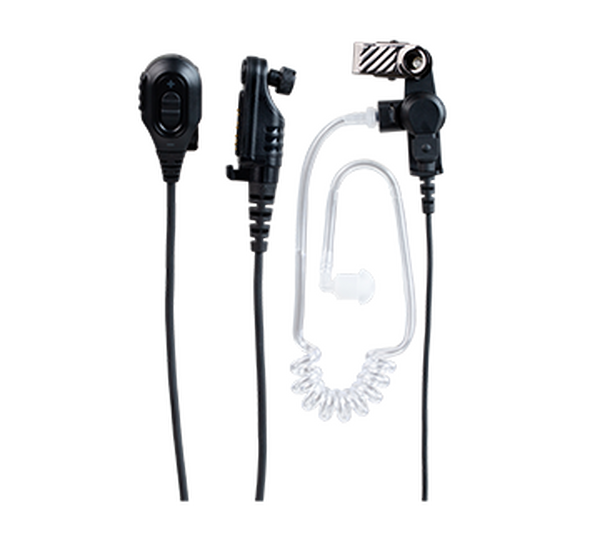

Earpiece with Acoustic Tube and In-line PTT (Black)
Earpiece with detachable acoustic tube, clip , in-line PTT and microphone (Black)
Highlights
Functions
Technical Specifications
Specifications
- Weight
- about 55g
- Color
- black
- PTT key
- available
- VOX
- YES (activation in conjunction with the radio's VOX function)
- Emergency Key
- none
- Radio connector
- 13-pin connector
- Microphone sensitivity
- -42±3 dB @ 1 kHz 3.0 V 2.2 kΩ, 0 dB = 1 V/Pa
- Speaker power
- 10 mW (rated); 30 mW (max.)
- Speaker impedance
- 220 Ω ±15% @1kHz
- Speaker frequency response
- 110 ±4dB @1kHz at 10mW
- Speaker sensitivity
- 116±3 dB @ 1 kHz 1 mW
- Ingress protection
- none
- Operating temperature
- –20℃ to 60℃
- Storage temperature
- –40℃ to 85℃
