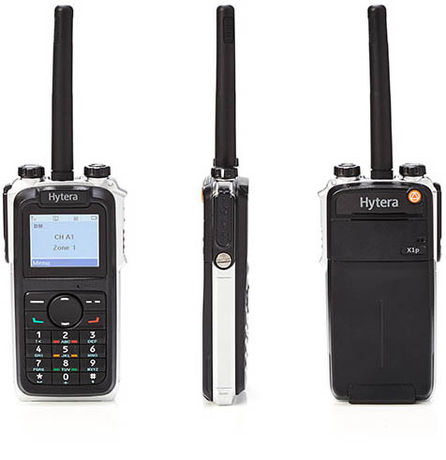

X1p (Discontinuation Date: March 31st, 2024)

Handheld | DMR

Highlights

diagram indicating highlights of X1p (Discontinuation Date: March 31st, 2024)

Rugged and Reliable

Dust and waterproof, rated IP67, sustaining performance in harsh environments

GPS Location

Positioning and tracking as standard, also including man down feature

Enhanced Encryption

Delivers secure digital communication

Wireless Convenience

Bluetooth enabled to support covert audio accessories

Intelligent Design

Secondary microphone and tactical emergency button to allow user to conceal colour display

Functions

Created with Sketch. Lone Worker

The lone worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.

Created with Sketch. Man Down

The man down feature will let you know if the radio has been tilted past a certain angle. This may happen for instance if the radio user has fallen over or is unconscious or injured. The alarm will be triggered after a warning is issued to the user.

Created with Sketch. GPS

Enabling location based services to improve safety and control.

Created with Sketch. Emergency Mode

Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm. Also receive emergency notifications.

Hytera X1 P 01

Created with Sketch. Bluetooth Audio

Wireless connectivity to optional audio devices including covert earpieces to improve user experience.

Created with Sketch. Pseudo Trunking

Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to handset or to repeater.

Created with Sketch. XPT

Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources more efficiently, dynamically assigning channel resource without needing a dedicated control channel.

Accessories for X1p (Discontinuation Date: March 31st, 2024)

Included as standard with X1p (Discontinuation Date: March 31st, 2024) Included as standard with X1p (Discontinuation Date: March 31st, 2024)

Antenna

Battery

Charger & Power

Car Kit

Audio

Mounting

Carrying

Cables

Related products that work with the X1p (Discontinuation Date: March 31st, 2024)

Technical Specifications

General

Frequency Range
VHF: 136-174MHz UHF1: 400-470MHz UHF2: 450-520MHz UHF3: 350-400MHz UHF5: 806-941MHz
Channel Capacity
1024 (64 zones with 256 channels per zone)
Digital Protocol
ETSI-TS102 361-1,2 & 3
Battery Life (5-5-90 Duty Cycle)
1400mAh, Analogue 9h, Digital 12h
Dimensions(W×H×D)
120 X 57 X 21mm
Weight
Approx 240g (optional 1100mAh Li-ion)
Display
160 x 128 pixels, 65536 colors 1.8 inch, 6 rows
Keypad
Full Keypad
Programmable Buttons
4

Environmental Specifications

Dust & Water Intrusion
IP67 Standard

Features

RRS
YES
Telemetry
YES
Option Board
YES
Intrinsically Safe Option
NO
Radio Check
YES
Alert Call
YES
Stun / Unstun
YES
Remote Monitor
YES
Priority Interrupt
YES
IP Site Connect
YES
Roaming
YES
Work Order
YES
5 Tone Signalling
YES
2 Tone Signalling
YES
HDC1200 Signalling
YES
DTMF (Phone Patch)
YES
Intelligent audio
YES
VOX
YES
Priority Scan
YES
GPS SMS
YES
Vibration
YES
Scrambler (Analogue)
YES
Digital Encryption
Basic encryption as standard (10, 32 & 64 character keys). 40 bit Enhanced Encryption as Standard (latest firmware required)Advanced encryption (Hytera or DMRA 128 bits and 256bits AES) available via chargeable licence file.
Multiple Key Encryption Decode
YES
Multilanguage Menu
YES
Power on & off user logo programming
YES
Voice Interrupt
Yes (TX Interrupt for voice call, emergency call, remote dekey, text message.)
No of Contacts (Conventional)
Digital 1024 Analogue 2-Tone 32 Analogue HDC1200 200 Analogue 5-Tone 255
No of Contacts (Trunking)
Private Contacts 512 Group Contacts 1024
Text Messaging
256 characters
Quick Text Messages
Up to 25 pre-programmed via CPS
MPT1327 / 1343 Trunking
Yes via free of charge licence key
Tier 3 Trunking
Available via chargeable licence file
Over-the-Air Programming
Yes via smartdispatch 4.0
Analogue Only Version
Not Available
Full Duplex Calls
NO
Micro SD Card
NO
Voice Recording
NO
Data Services via Bluetooth
NO
Single Frequency Repeater
NO
Auto Power Select
Yes (V8.0 firmware or later)
