ES-02 (EOL)

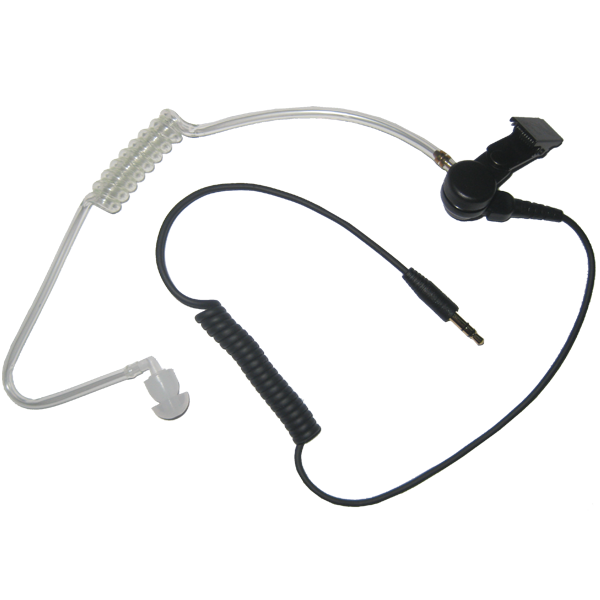

Earbud with Acoustic Tube (Receive-Only)
Reliable and ergonomically designed earpiece with acoustic tube to be used with various base sets. 3.5mm jack plug.
Highlights
Functions
Technical Specifications
Specifications
- Weight
- about 20 g
- Color
- black
- PTT key
- none
- VOX
- none
- Emergency key
- none
- Connector
- 3.5mm jack plug
- Speaker power
- 10 mW (rated), 300 mW (max.)
- Speaker impedance
- 90 Ω ±15% @1kHz
- Speaker frequency response
- 117 ±3 dB @1kHz @ 10 mW
- Ingress protection
- none
- Operating temperature
- –20℃ to 60℃
- Storage temperature
- –40℃ to 85℃
- Applicable devices in combination with PTT&MIC controller cable
- ACM-01: TC-446S, TC-510, TC-610, TC-620, TC-700, PD4 and PD5 series
- ACN-01: PD7 series, PD985, PT560H, PT580H Plus
- ACN-02: X1e, X1p, Z1p, PD6 series, PDC550
- ACN-02P: HP5, HP6 and HP7 series, PDC680/PTC680 (A10), PDC550
- ACN-05: PDC680, PTC680, PDC760, PTC760
- ACS-01: BD3 series, PD3 series
- SM08M3: TC-446S, POWER446, TC-508, TC-610, TC-620, TC-700, BD505LF, PD505LF, BD505, BD555, BD615, PD405, PD415, PD485, PD505, PD565
- SM13M1: POWER446, TC-610, TC-620, TC-700, BD505, BD505LF, BD555, BD615, PD405, PD415, PD485, PD505, PD505LF, PD565
- SM13N5: TC-610P, TC-700P, TC-780, TC-780M, TC3000, TC3600
