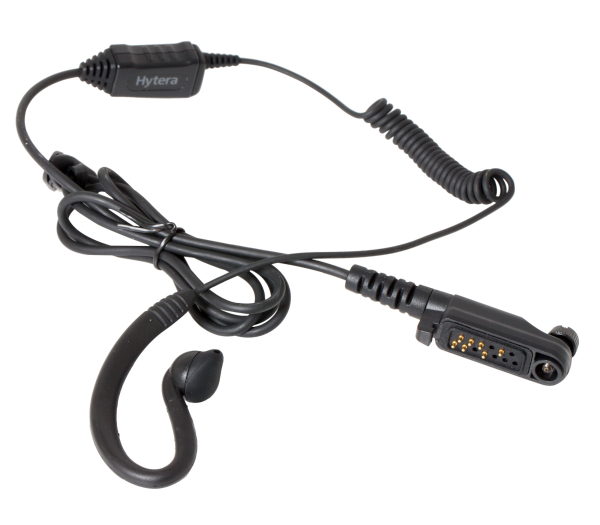

EHN26-P

Audio

Highlights

Functions

Technical Specifications

Specifications

Weight
about 35g
Color
black
PTT key
available
PTT cycles
≥ 100,000
VOX
YES (activation in conjunction with the radio's VOX function)
Emergency key
none
Radio connector
13-pin connector
Microphone sensitivity
-42 ±3 dB @1kHz 2.0V 2.2KΩ; 0dB=1V/Pa
Speaker power
10 mW (rated); 30 mW (max.)
Speaker impedance
32 Ω ±15% @1kHz
Speaker frequency response
100 ±3 dB @1kHz at 0.179V
Speaker sensitivity
105±3 dB @ 1 kHz
Ingress protection
none
Operating temperature
–20℃ to 60℃
Storage temperature
–40℃ to 85℃
