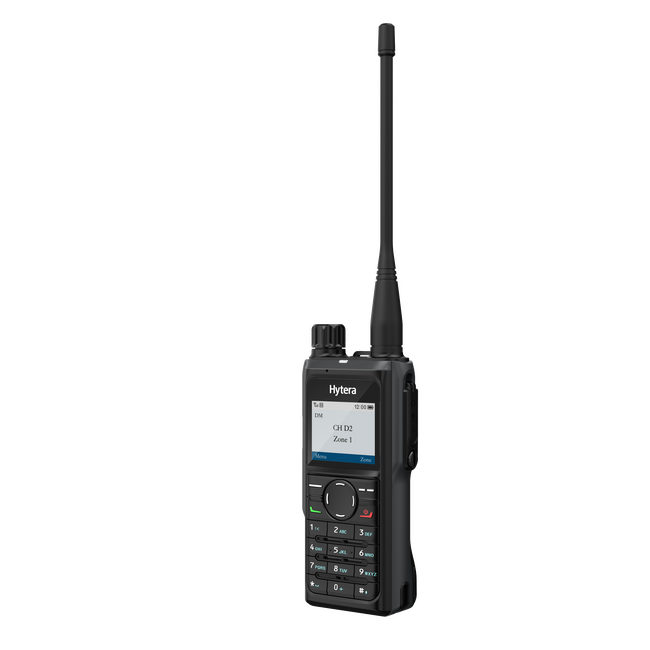

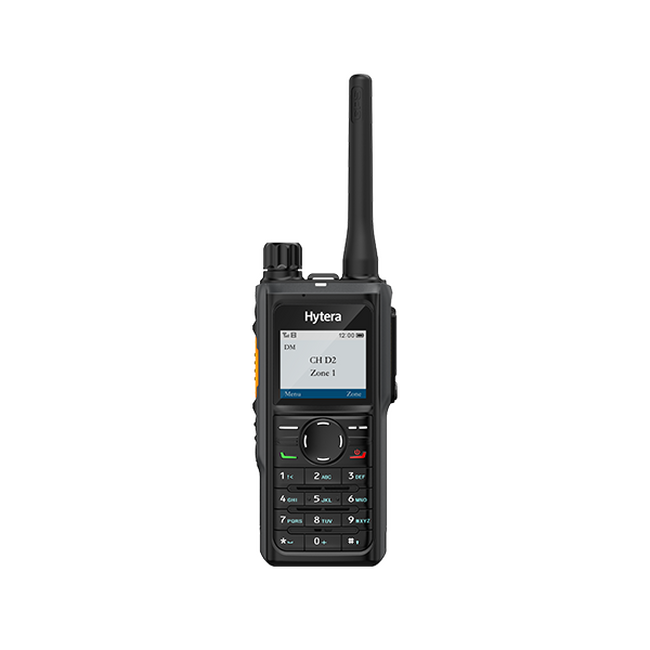

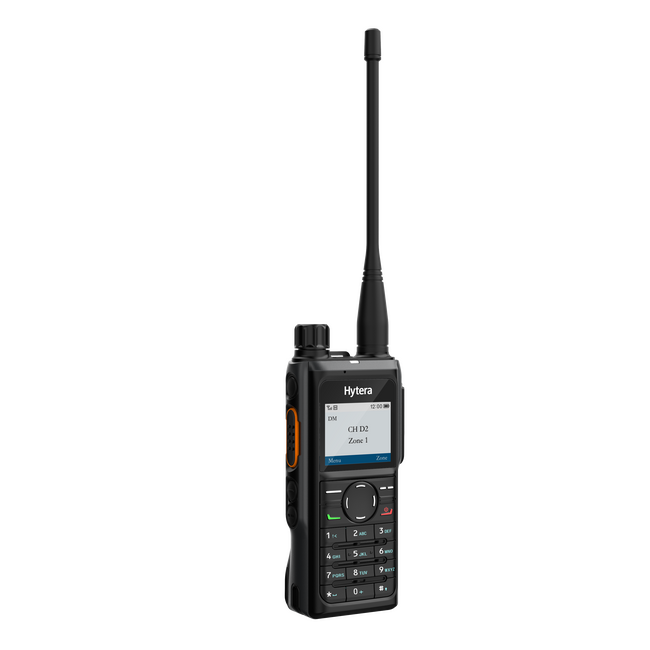

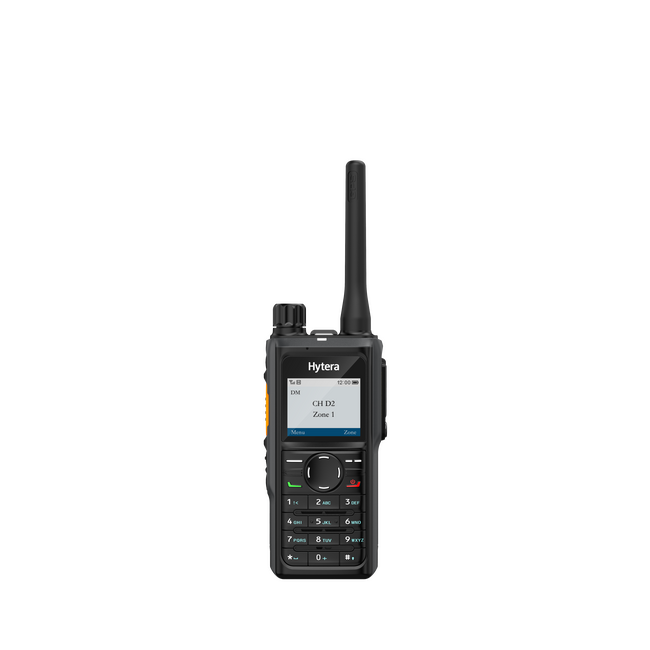

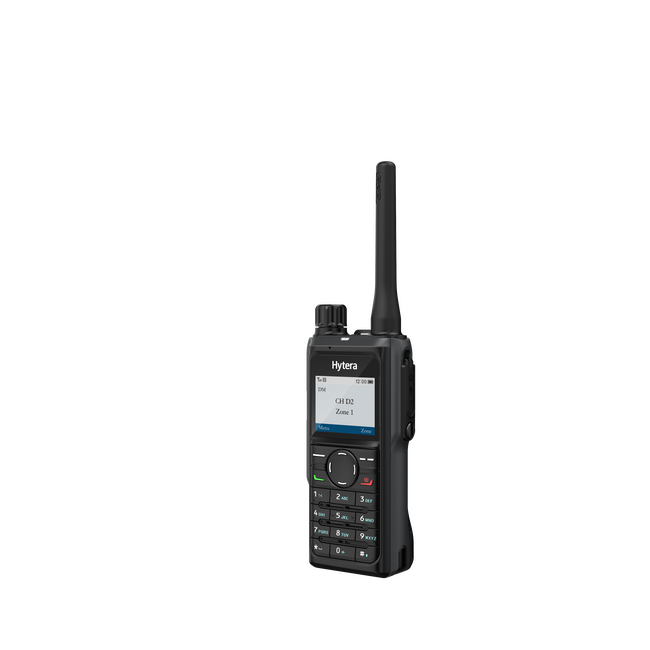

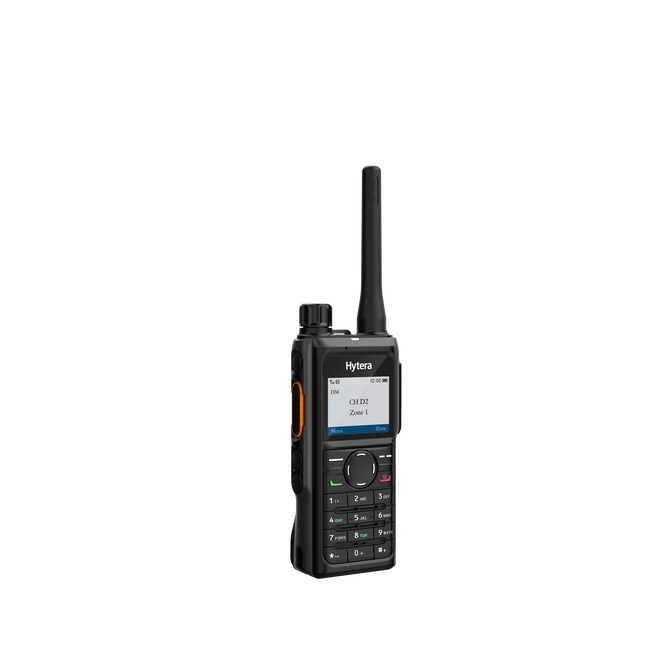

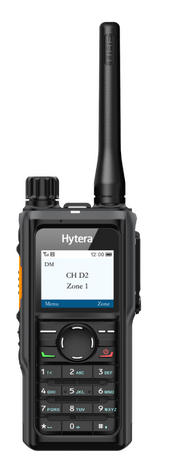

HP689
Slim, professional, digital two-way radio
Small and light in style, the HP689 delivers class-leading audio performance and extended coverage together with a Lithium Polymer battery, ability to operate in extreme environments and supports abundant features. It is an easy to-use tool for customer-facing staff, enabling them to focus on their daily tasks and improve efficiency.
Highlights
Thinner and Lighter
Compact design with 31.5mm in thicknesses, 280g in weight and large PPT for easy carrying and operation.
Longer battery life
Innovative and large capacity Li-polymer battery to realize a shift life of 20 hours on high transmit power in 5/5/90 mode.
More intuitive and efficient
1.8" HD TFT-LCD display and new intuitive Ul for you to quick access and get the critical info at first sight.
Louder and clearer audio
Al-based noise cancellation technology to decrease the unwanted background noise and howling.
Ehanced Coverage
High receiver sensitivity and transimitted power to ensure communication in weak signal area.
Easy Operation
Unified knob for channel and volume selection,360° smart knob and multiple programmble buttons for easy operation.
Functions
Light and Stylish
The streamlined HP68X is compact and light and designed for ease of use with a Tactile PTT and programmable buttons afor common functions. The integrated BT5.0 technology provides flexible wireless connection with accessories for hands-free operation.
Clear Audio
The HP68X uses the cutting-edge AI-based noise cancellation technology to decrease the unwanted background noise and reduce howling, maintaining high audio clarity. Users can now hear and be heard regardless of any noise.
Long Battery Life
The HP60X has a long battery life over 20 hours @ 5-5-90 as standard. Users no longer need to charge the radio or change the battery during their shift
Rugged and Durable
Manufactured to meet MIL-STD-810 G standard, the HP68X is IP67 rated and can withstand a 2-meter drop to stand up to a the toughest user environments
Easy to Use
The HP6 series is designed for ease of use in a compact and discreet form. Tactile PTT, programmable buttons and keys allow professionals to respond positively. The integrated BT5.0 technology provides flexible wireless connection with accessories to keep their hands free.
Extended Range
Thanks to the improved receiver sensitivity, the HP6 series provides better connectivity both in marginal areas of coverage and indoors. This will deliver improved safety and operational benefits for operatives in the field.
Roaming
Optional, roaming allows radios to move between sites in the IP Multi-site Connect system or XPT Multi-site system without dropping connection.
Accessories for HP689
Included as standard with HP689
Antenna
Charger & Power
Mounting
Carrying
Audio
Cables
Related products that work with the HP689
DMR Systems
Technical Specifications
General
- Frequency Range
- UHF: 400-527MHz VHF: 136-174MHz
- RF Output Power
- UHF: 1W/ 4W VHF: 1W/ 5W
- Channel Capacity
- 1024(64 zones with 256 channels per zone)
- Channel Spacing
- 12.5kHz / 20kHz / 25kHz
- Digital Protocol
- ETSI-TS102 361-1,-2,-3
- Operating Voltage
- 7.7V (rated)
- Battery
- 2000mAh Li-polymer anti-counterfeit
- Battery Life (5/5/90, Digital, High TX Power)
- 20h (GNSS off), 16h (GNSS on)
- Dimensions (H x W x D)
- 122 x 55 x 31.5mm
- Weight (with antenna and battery)
- 280g
- Display
- LCD, 160 x128pixels, 65536colors, 1.8inch, 6rows
- Keypad
- Full kepad
Receiver
- Sensitivity
- Analogue: 0.18µV (12dB SINAD)
- Analogue: 0.16µV (12dB SINAD) (typical)
- Digital: 0.18µV / BER 5%
- Selectivity
- TIA-603: 60dB @12.5kHz / 70dB @20/25kHz
- ETSI: 60 dB @12.5kHz / 70dB @20/25kHz
- Intermodulation
- TIA-603: 70 dB
- ETSI: 65 dB
- Spurious response rejection
- TIA-603: 70 dB
- ETSI: 70 dB
- Blocking
- TIA-603: 80 dB
- ETSI: 84 dB
- Hum and noise
- 40 dB @12.5kHz
- 43 dB @20kHz
- 45 dB @25kHz
- Related audio power output
- 0.5 W
- Rated audio distortion
- <3%
- Audio response
- +1 to -3 dB
- Conducted spurious emission
- < -57 dBm
Transmitter
- RF power output
- UHF: 1W / 4W
- VHF: 1W / 5W
- FM modulation
- 11K0F3E @12.5kHz
- 14K0F3E @20kHz
- 16K0F3E @25kHz
- 4FSK digital modulation
- 12.5kHz data only: 7K60FXD
- 12.5kHz data and voice: 7K60FXW
- Conducted/radiated emission
- -36dBm @<1GHz; -30dBm @>1GHz
- Modulation limiting
- ±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz
- FM hum and noise
- 40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz
- Adjacent channel power
- 60dB @12.5kHz; 70dB @20/25kHz
- Audio distortion
- <3%
- Digital vocoder type
- AMBE+2™
- Digital protocol
- ETSI-TS102 361-1,-2,-3
Environmental Specifications
- Dust & Water Intrusion
- IP67 Standard
- Operating Temperature
- -30°C to +60°C
Location Service
- GNSS
- GPS, GPS+GLONASS, GPS+BDS
- TTFF (time to first fix) cold start
- < 1 minute
- TTFF (time to first fix) hot start
- < 10 seconds
- Horizontal accuracy
- < 5 meters
