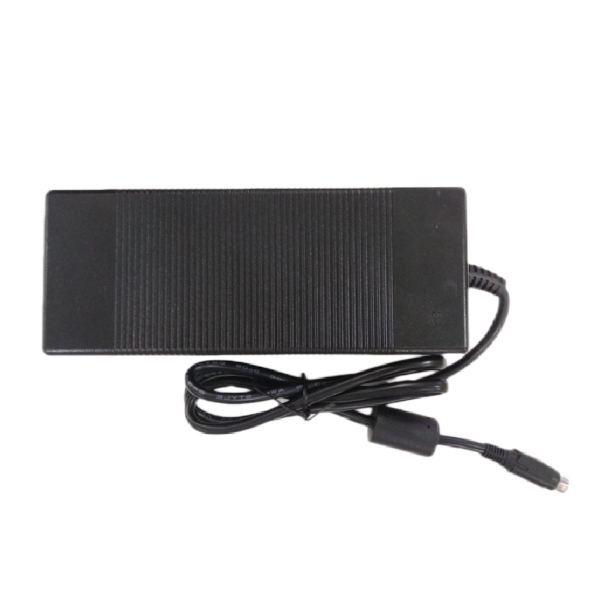

PS15002

Charger & Power

Highlights

Functions

Technical Specifications

Specifications

Operating Voltage
90–264 V AC
Output
12 V DC, 7 A
Connector type
Low Voltage Power Plug 2.5 x 5.5mm
Energy efficiency level
V
Certification
CE, UL, C-Tick and KC
Operating temperature
0°C to 45°C
Storage temperature
-40°C to 70°C
Suitable multi-unit chargers
MCA02, MCA03, MCA06, MCA08, MCA10, MCL19, MCA22, MCL23, MCL30, MCL33, MCL34, MCL35, MCL35-S, MCL36, MCN05
