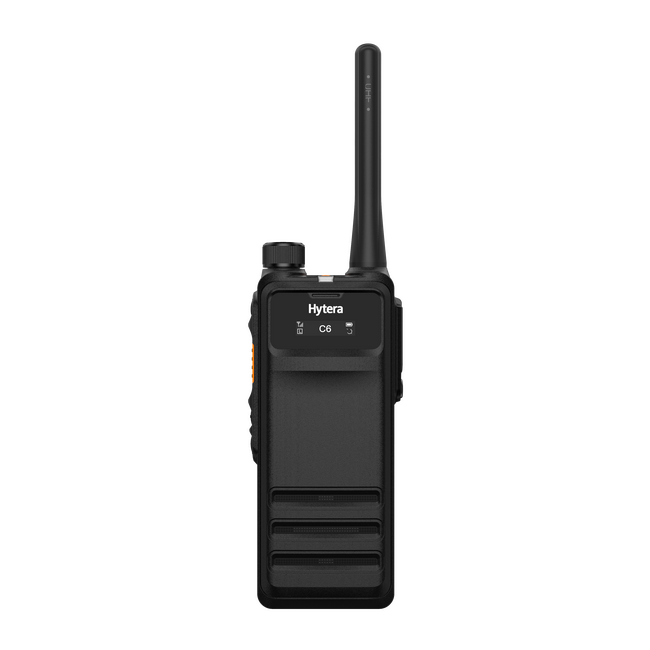

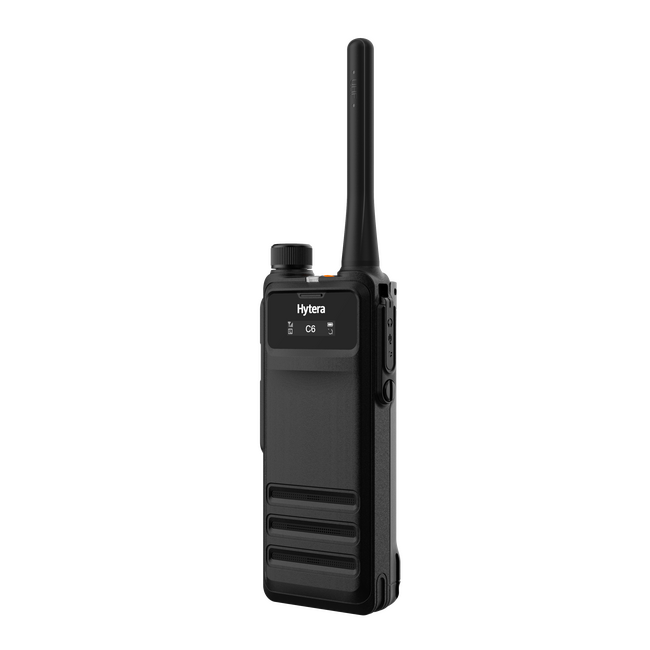

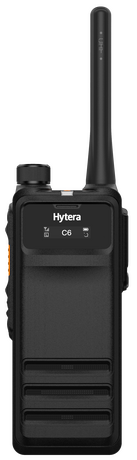

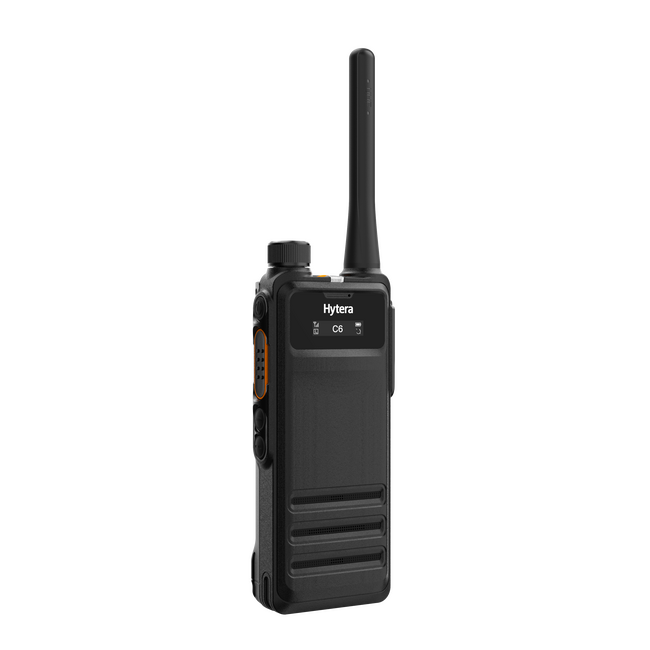

HP709

Handheld | DMR

Highlights

diagram indicating highlights of HP709

    Functions

    Created with Sketch. Thinner and Lighter

    An optimized mechanical design and a compact lithium polymer battery which fits discreetly into the HP70X's design makes the radio only 29.5mm thick and 290g in weight.

    Created with Sketch. Louder and Clearer Audio

    The HP70X has louder and clearer audio though an optimized forward facing speaker and AI-based noise cancellation that decreases the unwanted background noise and howling and improves communication efficiency.

    Created with Sketch. Longer Battery Life

    The latest in proven lithium polymer technology is used in the battery used with the HP70X . The battery is lighter and smaller than ever before, yet still delivers 24 hours of battery life (5/5/90) to provide radio operation for your entire shift.

    StayConnected-0x20 Enhanced Coverage

    Increased receiver sensitivity extends the coverage range and improves audio quality in weak signal areas.

    Created with Sketch. Higher Level of Ruggedness

    IP68 rated (submersible to a depth of 2 meters for 4 hours in fresh water) and able to withstand a 2-meter drops onto concrete allows it to withstand the toughest environments.

    Accessories for HP709

    Included as standard with HP709 Included as standard with HP709

    Antenna

    Charger & Power

    Mounting

    Carrying

    Audio

    Cables

    Related products that work with the HP709

    Technical Specifications

    General

    Frequency Range
    UHF: 350-470 MHz VHF: 136-174 MHz
    Channel Capacity
    1024
    Zone Capacity
    64
    Dimensions(W×H×D)
    132 x 55 x 29.5mm
    Weight
    290g
    Display
    0.91 inch OLED Display
    Battery Life (5-5-90 Duty Cycle)
    UHF: 26 Hours/22 Hours (GNSS) VHF: 25 Hours/21 Hours (GNSS)

    Receiver

    Sensitivity
    Analogue: 0.18µV (12dB SINAD)
    Analogue: 0.16µV (12dB SINAD) (typical)
    Digital: 0.18µV / BER 5%
    Selectivity
    TIA-603: 60dB @12.5kHz / 70dB @20/25kHz
    ETSI: 60 dB @12.5kHz / 70dB @20/25kHz
    Intermodulation
    TIA-603: 70 dB
    ETSI: 65 dB
    Spurious response rejection
    TIA-603: 70 dB
    ETSI: 70 dB
    Blocking
    TIA-603: 80 dB
    ETSI: 84 dB
    Hum and noise
    40 dB @12.5kHz
    43 dB @20kHz
    45 dB @25kHz
    Related audio power output
    0.5 W
    Rated audio distortion
    <3%
    Audio response
    +1 to -3 dB
    Conducted spurious emission
    < -57 dBm

    Transmitter

    RF power output
    UHF: 1W / 4W
    VHF: 1W / 5W
    FM modulation
    11K0F3E @12.5kHz
    14K0F3E @20kHz
    16K0F3E @25kHz
    4FSK digital modulation
    12.5kHz data only: 7K60FXD
    12.5kHz data and voice: 7K60FXW
    Conducted/radiated emission
    -36dBm @<1GHz; -30dBm @>1GHz
    Modulation limiting
    ±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz
    FM hum and noise
    40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz
    Adjacent channel power
    60dB @12.5kHz; 70dB @20/25kHz
    Audio response
    +1 to -3 dB
    Audio distortion
    <3%
    Digital vocoder type
    AMBE+2™
    Digital protocol
    ETSI-TS102 361-1,-2,-3,-4

    Environmental Specifications

    Dust & Water Intrusion
    IP68
    Humidity
    Per MIL-STD-810G
    Shock & Vibration
    Per MIL-STD-810G

    Location Service

    GNSS
    GPS, GPS+GLONASS, GPS+BDS
    TTFF (time to first fix) cold start
    < 1 minute
    TTFF (time to first fix) hot start
    < 10 seconds
    Horizontal accuracy
    < 5 meters
