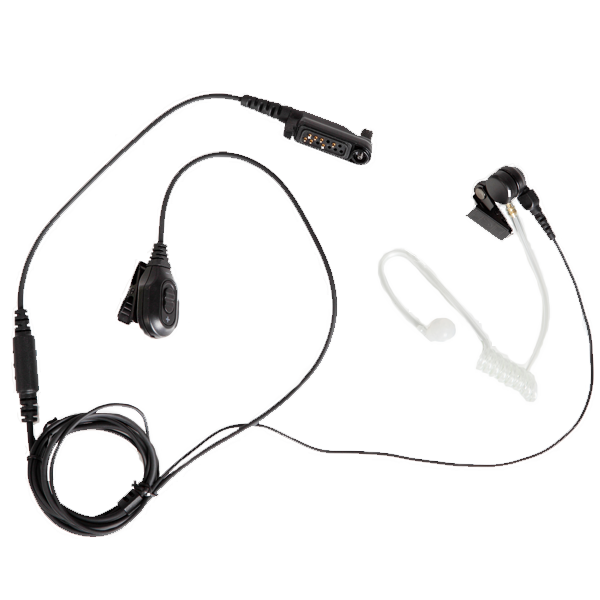

EAN24 (EOL)

Audio

Highlights

Functions

Technical Specifications

Specifications

Weight
about 55g
Color
black
PTT key
available
VOX
YES (activation in conjunction with the radio's VOX function)
Emergency Key
none
Radio connector
13-pin connector
Microphone sensitivity
-42±3 dB @ 1 kHz 3.0 V 2.2 kΩ, 0 dB = 1 V/Pa
Speaker power
10 mW (rated); 30 mW (max.)
Speaker impedance
220 Ω ±15% @1kHz
Speaker frequency response
110 ±4dB @1kHz at 10mW
Speaker sensitivity
116±3 dB @ 1 kHz 1 mW
Ingress protection
none
Operating temperature
–20℃ to 60℃
Storage temperature
–40℃ to 85℃
