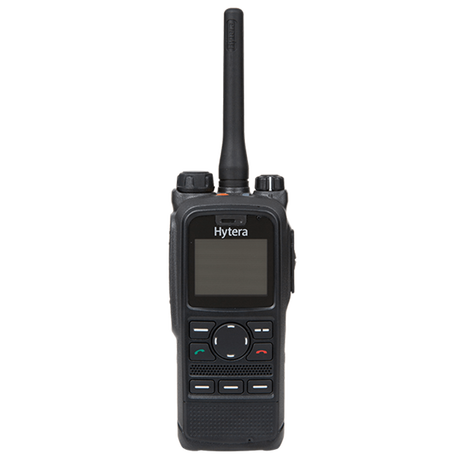

PT560H

Handheld | TETRA

Highlights

diagram indicating highlights of PT560H

Versatile Operation

The PT580H Plus S provides rapid access to the TETRA radio network in trunked mode (TMO), communicates between radios in direct mode (DMO) and can also boost the area of operation via DMO Repeater mode (licensed).

Safer Workforce

Protecting the user with lone worker, man down alarm and emergency alarm features.

Dustproof and Waterproof

IP67 rating for ingress protection, withstanding submersion in 1 metre of fresh water for a duration of up to 30 minutes.

Voice and Data Services

Precise positioning is available due to the integrated GPS function, as well as many other voice and data services according to the TETRA standard.

Clear Communication

The PT580H Plus features an advanced audio chip with the latest noise cancelling capability. Users working in noisy environments therefore benefit from excellent audio quality.

Functions

Created with Sketch. Versatile Voice Calls

Supporting various voice call types, including; Private Call, Group Call, All Call and Emergency Call.

Created with Sketch. Lone Worker

The lone worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.

Created with Sketch. Bluetooth Audio

Wireless connectivity to audio devices to improve user experience.

Pt560 H 16

Created with Sketch. GPS

Global Positioning System, enabling location based services to improve safety and control.

Created with Sketch. Man Down

The man down feature will let you know if the radio has been tilted past a certain angle. This may happen for instance if the radio user has fallen over or is unconscious or injured. The alarm will be triggered after a warning is issued to the user.

Accessories for PT560H

Included as standard with PT560H Included as standard with PT560H

Antenna

Battery

Charger & Power

Car Kit

Audio

Cables

Carrying

Mounting

Related products that work with the PT560H

Technical Specifications

General

Frequency Range
F3 : 380 - 430MHz
Channel Spacing
25KHz
Available Battery
2000mAh Li-ion (standard), 2500mAh Li-ion (option)
Battery Life
1800mAh (20hrs), 2500mAh (27hrs)
Dimensions(W×H×D)
127.5 x 55 x 39.5mm
Weight
368g (with 2000mAh battery and antenna)
Display
160 x 128 pixels, 65536 colors 1.8 inch, 4 rows
Keypad
Partial Keypad
Programmable Buttons
8

User Interface

Display
1.8inch,160*128pixels,65536colors
Talk Group-TMO
6000
Talk Group-DMO
4000
Telephone book
2000
Inbox
400
Outbox
50
Folder-TMO
200
Folder-DMO
50
State Message
200

Transmitter Specification

RF power
Max 3W(1.8W for 806-870MHz), 4 steps of 5dB

Receiver Specification

Sensitivity (Static)
-116dBm (typical -118dBm)
Sensitivity (Dynamic)
-107dBm (typical -109dBm)
Audio Power Output
2.0W

Environmental Specifications

Dust & Water Intrusion
IEC60529, IP68
Drop, Shock & Vibration
MIL-STD- 810 G; ETS 300 019-1-7 5M3
