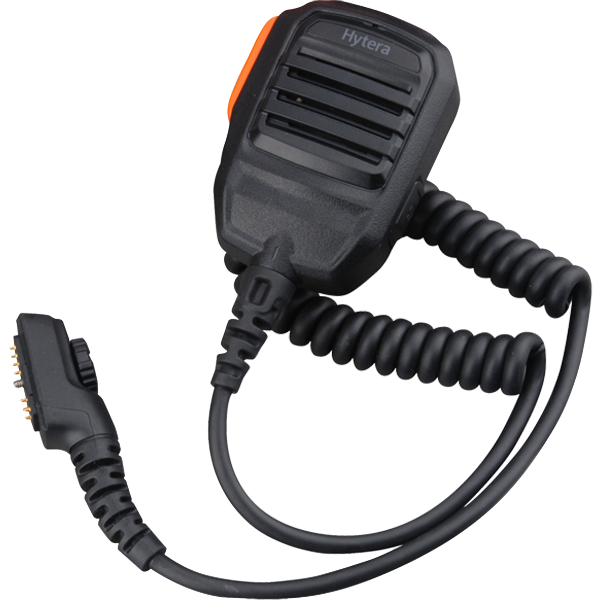

SM18N3
Remote Speaker Microphone (IP54)
IP54 compliant remote speaker microphone with emergency call button and 3.5mm external earpiece jack.
Highlights
Functions
Technical Specifications
Specifications
- Dimensions (H×W×D) mm
- 86.3 x 62.1 x 43.8
- Weight
- about 160 g
- Color
- black
- PTT key
- available
- Emergency key
- available
- Radio connector
- 16-pin connector
- Earpiece jack
- none
- Microphone sensitivity
- –42±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa
- Speaker power
- 1 W (rated),1.5 W (max.)
- Speaker impedance
- 8 Ω ±15% @ 1.5kHz
- Speaker frequency response
- 93±4dB @ 1 kHz 1 W/30 cm
- Ingress protection
- IP54
- Operating temperature
- –30℃ to 70℃
- Storage temperature
- –40℃ to 85℃
- Applicable radios
- PT560H and PT580H Plus
