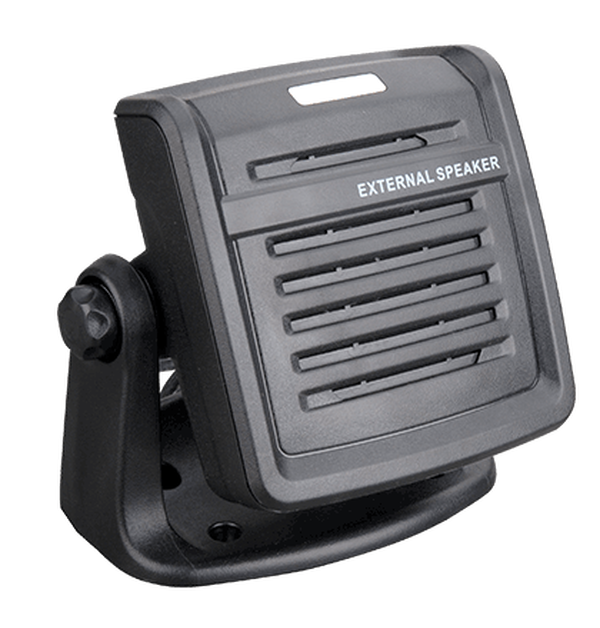

SM09S1 (EOL)

Audio

Highlights

Functions

Technical Specifications

Specifications

Dimension
155.6 mm x 92.5 mm x 140.2 mm
Weight
about 774g
Color
black
Radio connector
Car kit SPK plug
Speaker power
15 W (rated); 20 W (max.)
Speaker impedance
8 Ω ±15% @500 Hz
Speaker frequency response
88 ±2 dB @800 Hz (1 W/1 m) @ 600, 700, 800, 900 Hz AVE
Ingress protection
none
Operating temperature
-30°C to 70°C
Storage temperature
-40°C to 85°C
