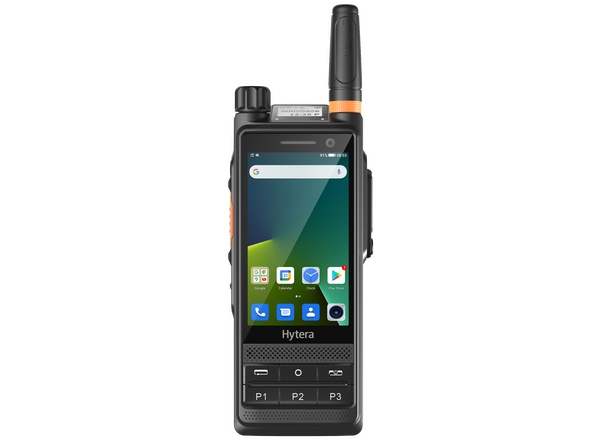

PDM680
Rugged MCS Radio
As a professional rugged radio, the PDM680 delivers reliable mission-critical voice communications, and mission-critical video and data services for those working in the most challenging conditions.
Highlights
Functions
Professional MCS Radio
Compliant with 3GPP MCS, the PDM680 delivers MCPTT, MCVideo, and MCData services to ensure mission critical communications for public safety. The PDM680 is equipped with a native Hytera HyTalk MC app - a 3GPP-compliant MCS solution.
D2D Communication
Built with Digital Mobile Radio (DMR) technology, the PDM680 can provide D2D communications where LTE connectivity is unavailable. Moreover, the PDM680 features MCS-DMR Simulcall to call both MCS devices and DMR radios at the same time.
Rugged and Durable
The streamlined and intuitive user interface enables quick access to critical information. The radio's IP68 rating means it can handle dust and drops of up to 1.5 meters without a case, and its MIL-STD 810H certification makes it reliable in extreme environments.
Best-in-Class Audio Quality
The PDM680 audio can reach a maximum SPL of 118 dB. Even at 30 cm away from the sound source, the loudness level is as high as 98 dBPhon. Moreover, AI-based noise cancellation technologies minimize the background noise and boost the audio clarity.
Powered by Android
With GMS certified Android platform, the PDM680 is compatible with various third-party applications to enhance productivity. PDM680 is equipped with a 13-Pin connector and USB Type-C port for reliable connection and charging. And the radio supports WLAN, BT, and NFC (optional).
All-round Security Assurance
Signature authentication ensures system security. All data at rest is full-disk encrypted, while E2EE protects the data and voice in transit. The industry-leading remote management puts the radio in complete control.
Accessories for PDM680
Included as standard with PDM680
Antenna
Battery
Charger & Power
Audio
Cables
Carrying
Other
Related products that work with the PDM680
LTE-PMR Convergence Solution
Technical Specifications
Connectivity
- DMR
- Frequency range: 340–470 MHz TX power: 1 W/4 W
- Broadband
- TDD-LTE: B34/B38/B39/B40/B41
- FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28
- W-CDMA: B1/B2/B4/B5/B8
- TD-SCDMA: B34/B39
- CDMA: CDMA 1xRTT BC0, CDMA2000 1xEV-DO BC0
- GSM: 850/900/1800/1900 MHz
- LTE
- 3GPP LTE Rel-12
- WLAN
- IEEE 802.11 a/b/g/n/ac, 2.4 GHz/5 GHz
- BT
- V5.0 BDR/EDR/BLE
- NFC (Optional)
- 13.56 MHz
- Positioning
- GPS/BDS/GLONASS/Galileo/QZSS/A-GPS/NLP In open areas: TTFF (cold start) < 60s TTFF (hot start) < 10s Horizontal accuracy ≤ 2 m (> 5 SVs, –130 dBm, CEP for 50%)
General
- Dimensions (H x W x D)
- 145.7 mm x 60 mm x 29.1 mm (with standard battery)
- 145.7 mm x 60 mm x 33.1 mm (with high capacity battery)
- Weight
- 328±5 g (with standard battery and antenna)
- 373±5 g (with high capacity battery and antenna)
- Display
- Main screen Size: 3.6 inches Resolution: 1280 x 720 Colour depth: 24 bits Capacitive touch technology, usable with gloves and capacitive stylus
- Top screen Size: 0.92 inch Resolution: 128 x 88 Colour: black and white
- Camera
- Front camera 8 MP, fixed focus
- Rear camera 16 MP, auto focus
- Battery
- Standard: 2,400 mAh, Li-polymer battery, 7.7 V (rated)
- Optional: 4,000 mAh, 7.7 V (rated)
- Memory
- RAM: 4 GB ROM: 64 GB eMMC Expandable to 256 GB with Micro SD card
- Card Slots
- 2 Nano Sim
- 1 Micro SD card
- 1 encryption card
- AP Processor
- 8-core, 2.2 GHz
- Operating System
- Android 10
- Google Certification
- Google Mobile Services
- Audio Output
- Output power: 2 W
- Audio distortion: ≤ 3%
- Audio loudness: 118 dBSPL, 98 dBPhon
- Ports
- USB Type-C port
- 13-Pin accessory connector
- Video Format
- 3GPP(.3gp), MPEG-4(.mp4), QuickTime(.mov), WEBM(.webm), Windows Media(.asf,.wmv), RealMedia(.rmvb, .rm), MPEG-PS(.mpg, .mpeg), MPEG-TS(.ts), AVI(.avi), Matroska(.mkv)
- Video Quality
- Front camera: 1080P HD, 30 fps
- Rear camera: 4K; 1080P HD, 30 fps
- Image Format
- JPEG(.jpg), GIF(.gif), PNG(.png), BMP(.bmp)
- Audio File Format
- MP3(.mp3), WAV(.wav), 3GPP(.3gp), MPEG-4(.mp4,.m4a), ATDS raw AAC(.aac), MPEGTS(.ts), FLAC(.flac), MIDI(.midi, .xmf, .mxmf), RTTTL/RTX(.rtttl, .rtx), OTA(.ota), iMelody(.imy), Ogg(.ogg), Matroska(.mka), QCELP(.qcp), RealMedia(.ra), Windows Media(.wma), AC3(.ac3)
- Sensor
- Proximity sensor Ambient light sensor 6-axis sensor (accelerometer + gyroscope) Magnetometer Accelerometer
Enviormental
- Water and Dust Resistance
- IEC 60529 IP68
- Shock and Vibration Resistance
- MIL-STD-810 H
- ESD
- IEC 61000-4-2 (level 4), ±8 kV (contact), ±15 kV (air)
- Operating Temperature
- –20℃ to +60℃
- Storage Temperature
- –30℃ to +80℃
- Humidity
- Per MIL-STD 810H, ≤ +65℃, 95%RH
