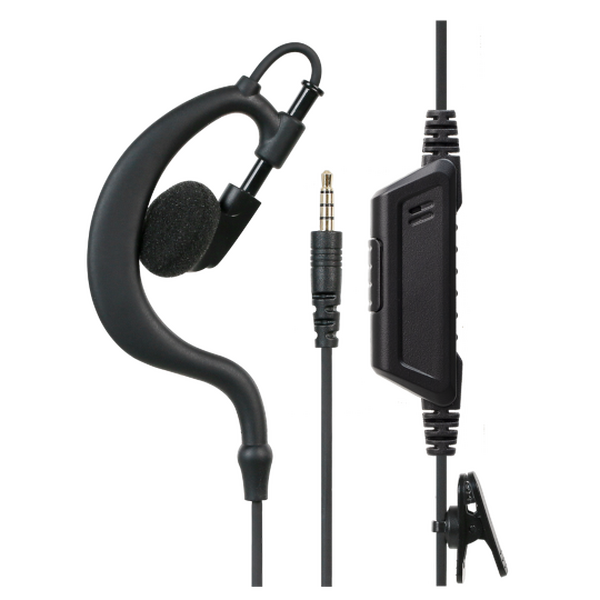

EHS24 (EOL)
Highlights
Functions
Technical Specifications
Specifications
- Weight
- about 28 g
- Color
- black
- PTT Key
- available
- VOX
- none
- Emergency Key
- none
- Radio connector
- 3.5mm jack plug (4-pin)
- Microphone Sensitivity
- -42 ±3 dB @1 kHz 3.0 V 2.2 kOhm
- Speaker Power
- 10 mW (max.)
- Speaker Impedance
- 32 Ω ±15% @1 kHz
- Speaker Frequency Response
- 112 ±4 dB @1 kHz at 1 mW
- IP Rating
- none
- Operating Temperature
- -20℃ to +60℃
- Storage Temperature
- -40℃ to +85℃
- Compatible radios
- MNC360, PNC550, PNC560, PDM680, PDC680, PTC680
