PNC560
5G XSecure Rugged Device
The PNC560 gives you the best of two worlds - a professional PTT radio and a hardened productivity smartphone. It offers you mission-critical push-to-talk (MCPTT) over 5G/LTE network with super-fast speed and low latency, supporting team communication & collaboration with a simple key press. The PNC560 is an ultra-secure device designed for professionals who need utmost data security protection. It employs a multi-layer security mechanism integrated in both hardware and software design to provide comprehensive & adequate data protection on the device.
Highlights
Barcode Scanner
Optional Barcode / QR code scanner available on special model
DEDICATED, LARGE PTT BUTTON
Real-time communication
TOUGH BODY
1. IP68 dust & water proof 2. 1.5m drop resistant
DUAL 5G ACCESS
Lightning-fast speed
TRIPLE CAMERAS
1. 8M front camera 2. Wide-angle rear camera 3. Telephoto rear camera
5,040 mAh HIGH-CAPACITY BATTERY
1. Detachable battery, longer working time 2. Desktop charger + 18W QC3.0, easy & fast battery charging
6.3-INCH 1080P TOUCHSCREEN
1. Dewdrop full screen 2. Outdoor glove operation
Charging
USB Type C & Charger
Functions

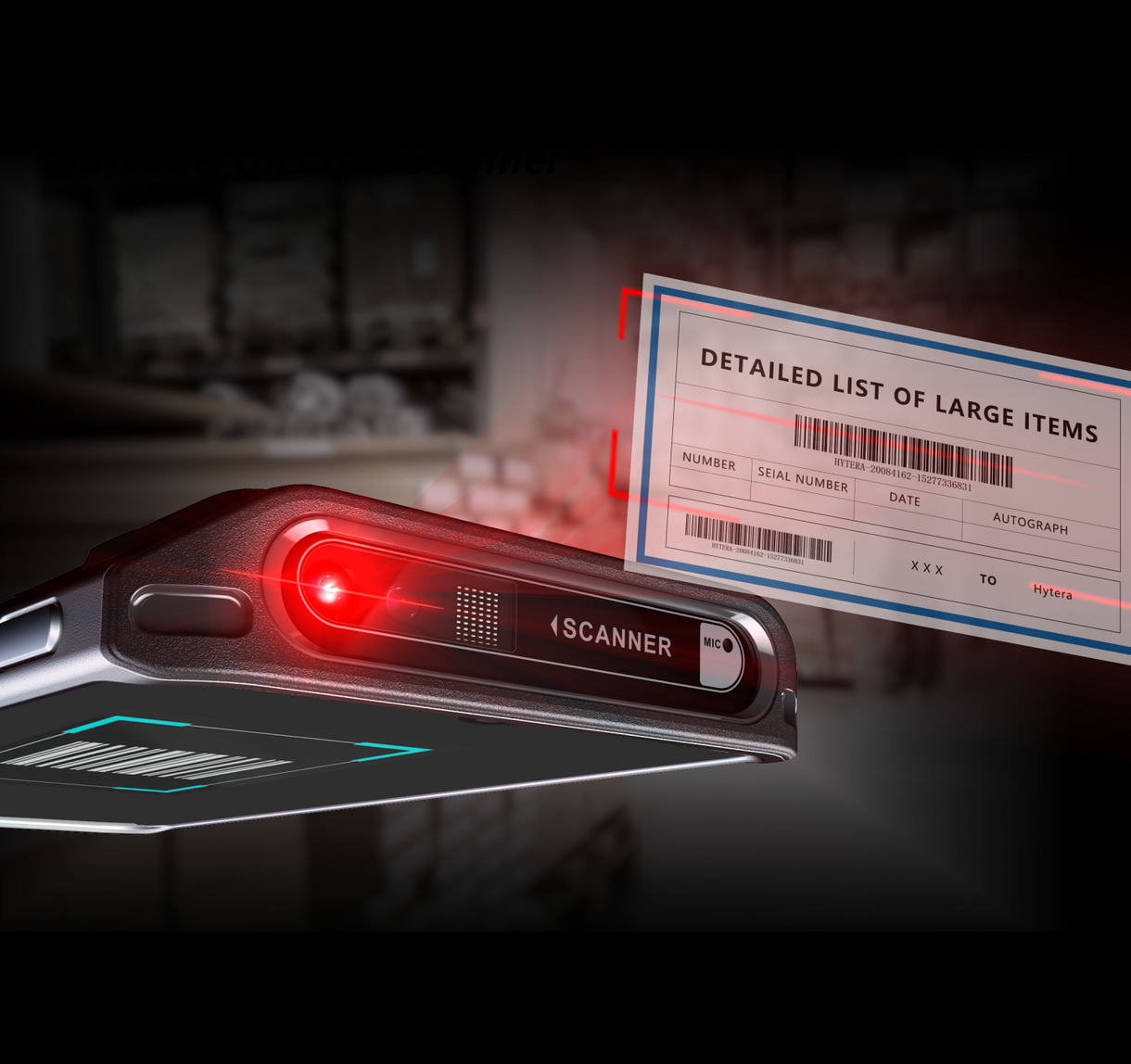

Barcode/QR code Scanner*
PNC560 can quickly read barcodes or QR codes to obtain the information at the daytime or nighttime. It greatly helps boost the productivity of warehouse staff, ticket officers, and more.
ANDROID 12 ECOSYSTEM
Latest Android OS brings more security, more efficiency and more productivity
3GPP MCX Services
The PNC560 supports dedicated 3GPP MCX service QCIs and 40ms short MSP for eMBMS service and complies with the latest 3GPP release features by the HyTalk MC platform.
DUAL DOMAINS
Isolation between business data and personal data, harmonize business security and personal privacy, one device for two roles
BIOMETRIC ID
1. Fingerprint unlock and authentication, integrated with side power button, one step to use, simplified and secured 2. Face unlock and authentication, fast security check for outdoor glove operations
Unbreakable Data Security
PNC560 employs a multi-layer security mechanism integrated in both hardware and software design to provide comprehensive & adequate data protection on the device.
Loud and Clear Audio
The dual-speaker, together with the intelligent power amplifier, enable PNC560 to deliver a loud audio. The AI-based noise cancellation, echo reduction, and wind noise cancellation help to filter the noise and recognize the voice to improve clarity.
6.3-inch FHD+ Full-screen
The PNC560 features a massive 6.3-inch full HD screen with a dewdrop notch. This screen is sunlight readable and works with gloves and wet fingers, ideal for use on construction, manufacturing, and industrial sites.
3 High-resolution Cameras
Triple cameras featuring video stabilization solution, low-light photography, and high dynamic range technology, easy to capture stable videos and sharp pictures on the move, day or night, near or far.
Unmatched Durability
Rated with IP68, PNC560 is exceptionally resistant to water and dust. Furthermore, the PNC560 stands up to 1.5-meter drop and extreme temperatures from –20°C to +60°C.
Accessories for PNC560
Included as standard with PNC560
Audio
Cables
Other
Charger & Power
Battery
Related products that work with the PNC560
LTE-PMR Convergence Solution
Technical Specifications
General
- Frequency Band
- 5G: N1/N2/N3/N5/N20/N28/N41/N66/N71/N78 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28 LTE-TDD: B38/B39/B40/B41/B42/B43/B48 GSM: 850/900/1800/1900 WCDMA: B1/B2/B4/B5/B8
- Operating System
- Android 12
- Memory
- RAM: 4 GB, ROM: 64 GB/RAM: 6 GB, ROM: 128 GB Micro SD: 256 GB (Max)
- Dimensions (H x W x D)
- 166.6 x 77.1 x 13mm
- Weight
- About 270 g
- Screen Size
- 6.3 inches
- Cameras
- Front: 8 MP, Rear: 48 MP*and 8 MP
- Charging
- USB Type C; Charger
- Battery
- 5,040 mAh
- Card Slot
- 2 x Nano SIM, 1 x Micro SD
- Speaker
- 3W dual speakers
- Positioning
- GPS/BDS/GLONASS/GALILEO/A-GPS
- BT
- BT 5.0
- NFC
- Available
Multimedia
- Video Resolution
- 1080p@30fps
- Video File Format
- Mp4, 3GP
- Video Coding Format
- P0, H.264, BP/MP/HP, SP/ASP, DivX 4x/5x/6x, VP9, MP
- Photo File Format
- JPG, GIF, BMP, PNG, WebP
- Audio File Format
- MP3
- Audio Coding Format
- ACC+, eAAC, AMR-NB, AMR-WB, G.711, Windows Media Audio, (WMA) 9/10 Pro
Environment
- Operating Temperature
- -20℃ to +60℃
- Storage Temperature
- -30℃ to +70℃
- ESD
- IEC 61000-4-2, (ESD)±12 kV (Air); ±8 kV (Contact)
- Ingress Protection
- IP68
- Drop-proof
- 1.5m
