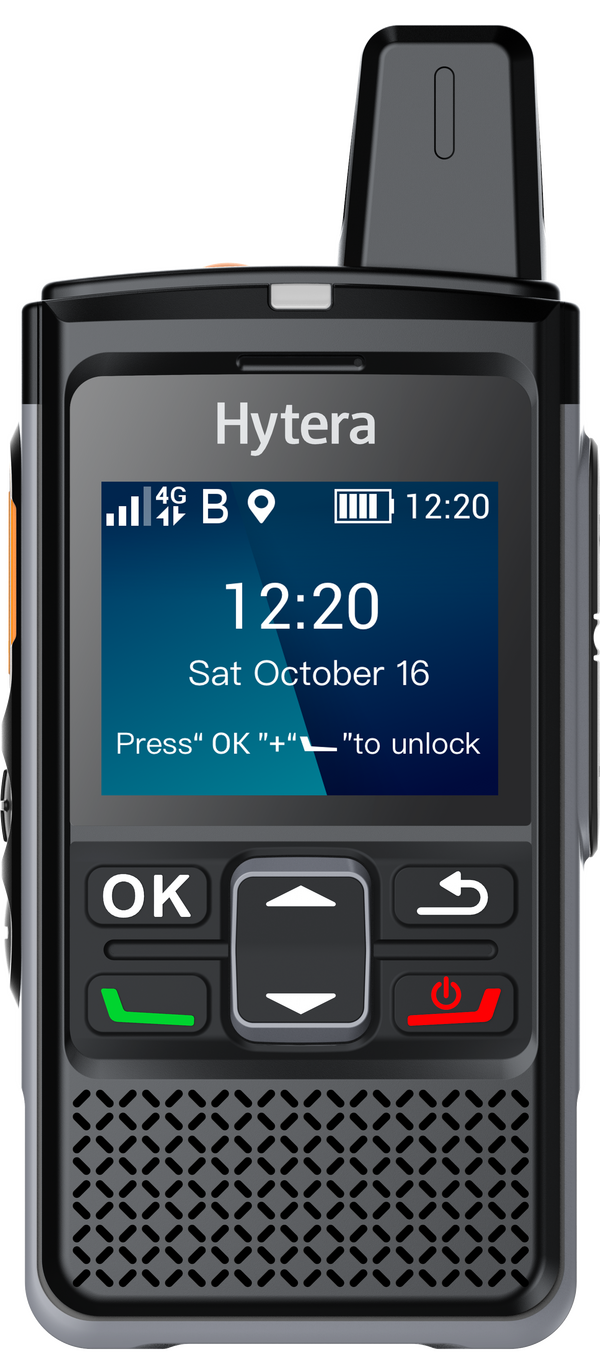

PNC360S

Handheld | LTE

Highlights

diagram indicating highlights of PNC360S

Compact and Portable

The enhanced ergonomic design with 26.5mm thickness, makes the radio easier to use with one hand.

Crystal Auido Performance

The built-in speaker has a diameter of 36 millimeters, the maximun of audio power achieves 3 watt,More than that, the radio uses howling suppression technology to prevent echoes between two radios at least 3 meters apart. This allows you and your coworker to work closely together, without feedback noise.

Stable Communication

With cutting-edge network optimization algorithms, the radio ensures uncompromised communication even when you are working in the area with weak 4G signal

Longer-lasting Battery

Comes with a 4,000 mAh battery. It has the longest standby time ever, up to 60 hours. That means the radio can last for more than two days on a single charge.

Reliable and Durable

Certified with IP67 rating and MIL-STD-810H standard, the PNC360S always performs as expected in any harsh environments

Emergency Key

Functions

StayConnected-0x20 Smoother communication

Thanks to the exterior antenna design, the radio RX sensitivity is improved by 2 dB. This makes you enjoy smoother communication even in areas with weak signal such as suburb, indoor, or underground.

Created with Sketch. Best-in-class audio

The PNC360S provides loud and clear audio even in noisy environments. The 3.0-watt built-in speaker ensures speech loudness, and the distortion suppression and noise cancellation technologies are adopted to boost the audio clarity. With the howling suppression algorithm, no feedback howling occurs between two radios within 3 meters.

Created with Sketch. Longer-lasting battery

The PNC360S comes with a 4,000 mAh battery that provides power for an entire shift easily on a single charge. The fast charging gives you hours of power in minutes of charge.

Created with Sketch. Precise positioning

With various combination of GPS, BDS, GLONASS, and Galileo and higher-precision positioning module, the radio can be located faster and more precise for efficient dispatch.

Created with Sketch. Reliable and durable

Certified with IP67 rating and MIL-STD-810H standard, the PNC360S is made tough to withstand water, dust, shock, extreme temperatures, and sudden drop up to 1.2 meters. It always performs as expected in any harsh environments.

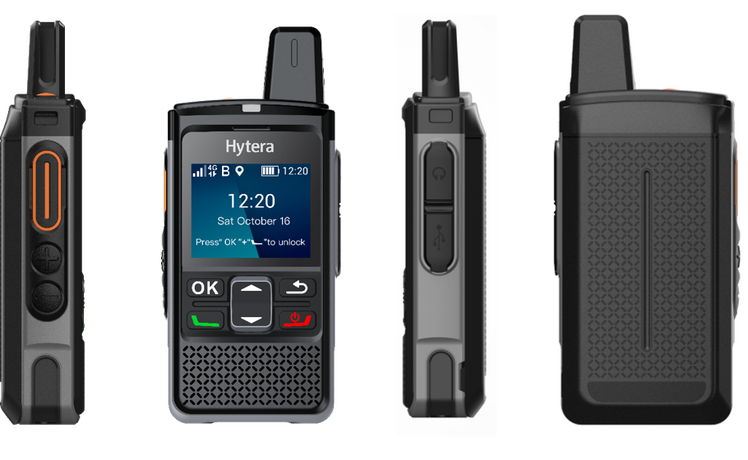

Created with Sketch. Compact and portable

With 26.5 mm thickness, the PNC360S is compact and superbly portable. It fits comfortably in your palm or pocket. The enhanced ergonomic design, especially the one-sided key layout, makes the radio easier to use with one hand. And the anti-slip texture surface can reduce accidental drops even in moist conditions.

电池 PNC360 S 2

Accessories for PNC360S

Included as standard with PNC360S Included as standard with PNC360S

Systems that work with PNC360S

Technical Specifications

General

Dimensions (H x W x D)
104mm*54.6mm*26.5mm
Weight
About 190g (including back clip)
Memory
1GB RAM+8GB ROM
Non-touch Screen Size
1.77 inches
SIM Card
1 Nano-SIM
BT
BT4.1
WIFI
2.4GHz, 802.11 b/g/n
Positioning
GPS/BeiDou/Glonass/Galileo/AGPS
Battery
4,000 mAh, detachable
Speaker Power
2 W (rated), 3 W (max)

Environmental

Storage Temperature
-30°C to +70°C
Operating Temperature
-20°C to +60°C
Ingress Protection
IP67
Certification
MIL-STD-810H,CE,FCC

Frequency

European & Asian Areas
GSM: 850/900/1800/1900
CDMA: BC0
WCDMA: B1/B3/B5/B8
TD-SCDMA: B34/B39
LTE TDD: B38/B39/B40/B41
LTE-FDD: B1/B3/B5/B7/B8/B20/B26/B28
American Areas
FDD-LTE: B2/B3/B4/B5/B7/B12/B13/B17/B26/B28 TDD-LTE: B38/B41
WCDMA: B2/B4/B5
GSM: 850/900/1800/1900
