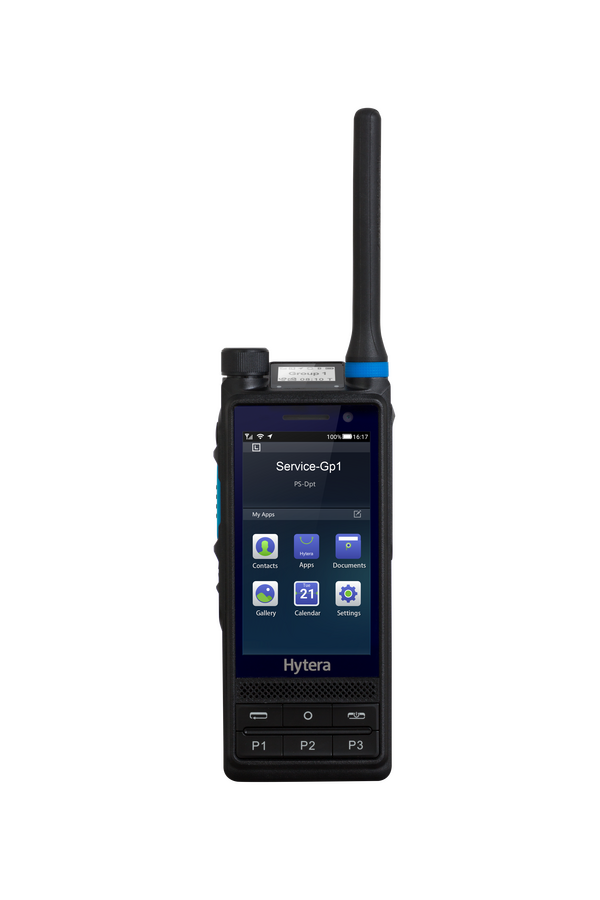

PTC680

Handheld | LTE | TETRA

Highlights

diagram indicating highlights of PTC680

Broadband and Narrowband Converged

Broadband data is supported by an LTE network (private or public), while the narrowband requirement is delivered by a private PMR network (TETRA).

Multiple Security Assurances

The device supports authentication and both software and hardware encryption to prevent voice and data theft.

Rugged and Reliable

Dust and waterproof, rated IP68.

SmartKey

Allows the user to quickly toggle between widgets and applications on the device screen.

Functions

Created with Sketch. Crystal Clear Audio

The PTC680 uses patented enlarged front chamber technology and has a professional acoustic design to provide up to 128dB of loudness. Multi-mic Noise Reduction, Wind Noise Suppression, Echo Cancellation are used to compete with the background noise in any environment. Therefore, the audio is always crystal clear.

Created with Sketch. Flexible Connectivity

PTC680 supports wired PIN connection and connections over WiFi, BT and NFC to a wide range of audio accessories, making it optimum for the frontline operatives to use their radios with higher efficiency.

Created with Sketch. Compact and Light Weighted

Although the PTC680 combines a mission-critical radio and a smartphone into a single device, it is fully TETRA trunking functional to support all TETRA features with only 325g in weight, easy to carry and wear, and also provides intuitive controls to help users get in touch as soon as possible and, perform various programmable features to different missions. It has 6cm in width with big rounded corner on the back to deliver an unrivalled tactile feedback for palmfitted one hand operation.

Created with Sketch. All-round Security Assurance

Multiple defensive mechanisms have been built to the PTC680 to safeguard your mission-critical communications. Signature authentication and preconfigured Se Android security strategy utilized to ensure the system security. All static user data is full-disk encrypted, while E2EE and AIE are used to secure data transmission. The management to PTC680 is based on industry standards to make the radio in complete control.

Created with Sketch. Advanced Global Positioning

The PTC680 uses five GNSS (Global Navigation Satellite System) and A-GNSS* (Assisted Global Navigation Satellite System) to make quick and accurate positioning in open outdoor areas, while Location-based Service (LBS) or WiFi when moving to buildings or areas not covered by GNSS, enabling the track to the user and device all the time.

Icon 24px Created with Sketch. Multimedia Gathering

Thanks to the high definition cameras and large screen, the frontline operatives now can use PTC680 to clearly capture critical photographic evidence or record the important moments during the mission. Don’t worry about the space, because the PTC680 has a large-capacity memory for storage, in addition, a micro SD

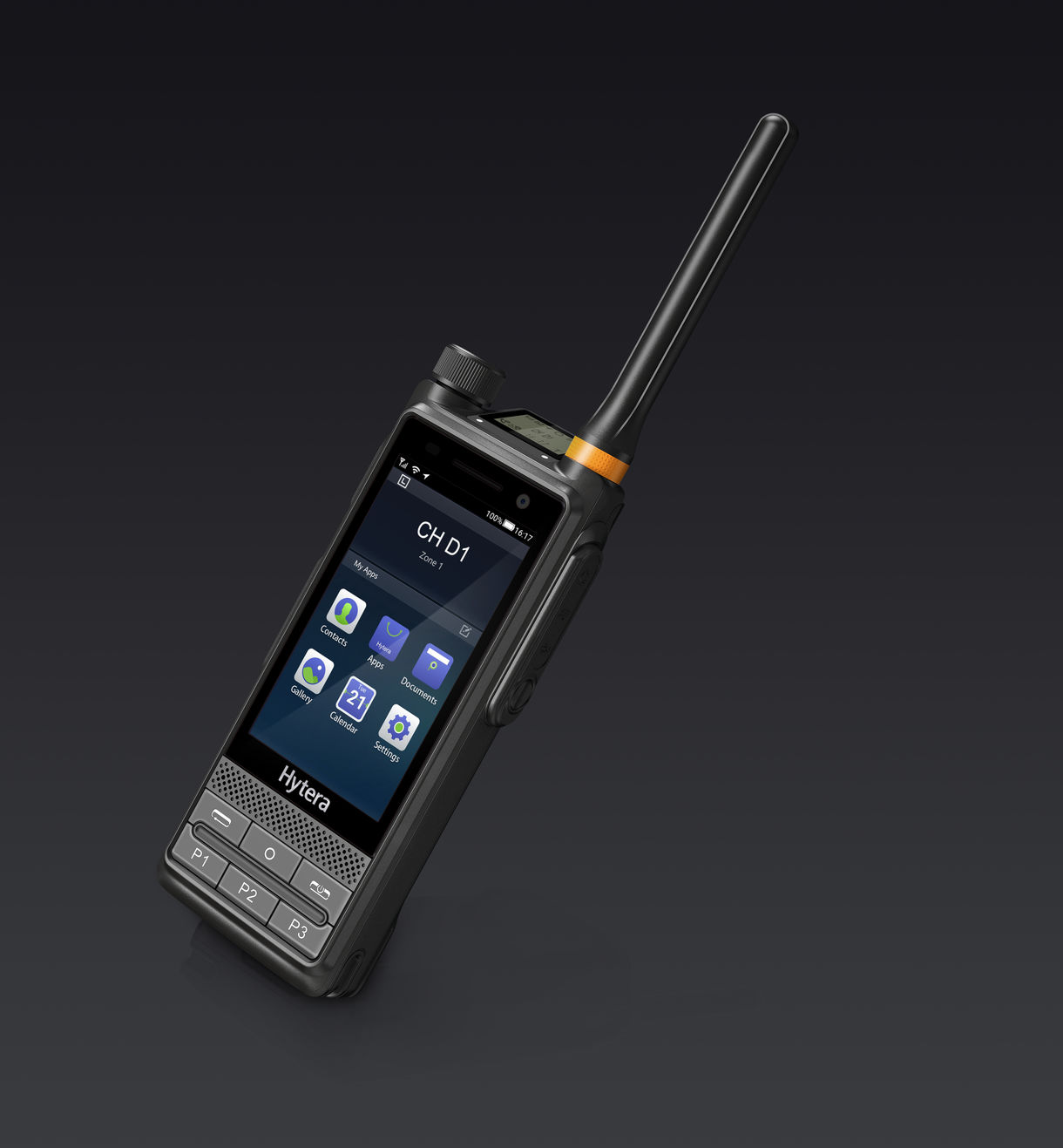

Pdc680 8

StayConnected-0x20 Complete Control via Smart MDM

Smart MDM is the system to remotely manage your PTC680 in batch. It takes 5 minutes only to wirelessly program 100 radios, which saves 95% of time compared with wired programming. Stay in complete control over the radio with many other features for example remote firmware and software upgrades, multi-command, feature and application permissions, over-the-air wipe and lock capability, data backup and recovery.

Created with Sketch. Efficient API for Narrowband

The PTC680 has standard android API for custom development of PMR features to match different requirements. The custom applications can be better shown and performed on its large screen. Together with the existing features the radio can provid

Accessories for PTC680

Included as standard with PTC680 Included as standard with PTC680

Antenna

Battery

Charger & Power

Carrying

Audio

Other

Cables

Related products that work with the PTC680

Technical Specifications

General Specifications

Dimensions(H x W x D)
140 x 60 x 29.1mm
Weight(with antenna & battery
About 325g
AP Processor
8-core, 1.8GHz
Operation System
Android 7.0
Memory
Broadband: RAM: 3GB; ROM: 32GB eMMC Expandable to 128GB with Micro SD card Narrowband: Expandable to 16GB with Micro SD card
Ports
20PIN Accessory/Charging Port
Top Screen
0.92"Color: black & white
Main Screen
3.6" 1280x720, Color depth: 24bit Capacitive, Touch Screen, Gloves Proofed, Passive Stylus Pen
Slots
2x Nano SIM card slots 1x Narrowband Micro SD card slot 1x Broadband Micro SD card slot
Front Camera
5MP, Fixed Focus
Rear Camera
13MP, Auto Focus
Sensors
Proximity Sensor Ambient Light Sensor 3-axis sensor+Gyroscope Barometer Geomagnetic sensor Accelerometer

Wireless Data Communication

TETRA
350-475MHz
LTE
3GPP LTE FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28 TDD-LTE: B38/B39/B40/B41
CDMA
CDMA 1xRTT BC0 CDMA2000 1xEV-DO BC0
WCDMA
B1/B2/B4/B5/B8
TD-SCDMA
B34/B39
GSM
850/900/1800/1900MHz
WiFi
802.11 b/g/n, 2.4GHz
BT
V4.2, BDR/EDR/BLE
Positioning
GPS/BDS/GLONASS/Galileo/QZSS Position performance for open zone : TTFF (Cold boot)< 1minutes Horizontal position accuracy < 10meters

Transceiver

Channel Spacing
25KHZ
TX Power
3W (Class 3)
1.8W (Class 3L)
1W (Class 4)
RX Sensitivity
Static: ≤-116dBm(-118dBm typ.)
Audio Output
2W

Video

Video File Types
3GPP(.3gp),MPEG-4(.mp4), QuickTime(.mov), WEBM(.webm), Windows Media(.asf,.wmv), RealMedia(.rmvb, .rm), MPEG-PS(.mpg, .mpeg), MPEG-TS(.ts), AVI(.avi), Matroska(.mkv)
Image File Types
JPEG(.jpg), GIF(.gif ), PNG(.png), BMP(.bmp)
Video Recording Quality
Front Camera: 1080P HD up to 30 frames per second(fps) Rear Camera: 1080P HD up to 60 frames per second(fps)
Watermark
Video and imaging

Audio

File Types
MP3(.m -TS(.ts), FLAC(.flac), MIDI(.midi, .xmf, .mxmf ), RTTTL/RTX(.rtttl, .rtx), OTA(.ota), iMelody(.imy), Ogg(.ogg), Matroska(.mka), QCELP(.qcp), RealMedia(.ra), Windows Media(.wma), AC3(.ac3)
Input
Multi-Mic Noise Reduction, Wind Noise Suppression, Echo Cancellation

Environment

Dust and Water Proofing
IEC60529- IP68 (2m, 4h) IEC60529-IP66
Shock and Vibration
MIL-STD-810 G
ESD
IEC 61000-4-2 (Level 4), ±8 kV (Contact), ± 15 kV (Air)
Operating Temperature
-20°C ~ +60°C
Storage Temperature
-30°C ~ +80°C
Humidity
Per MIL-STD 810 G, ≤ +65°C,95%RH

Battery

Standard
2400 mAh Li-polymer, 7.7V(Rated)
Optional
4000 mAh, 7.7V(Rated)
