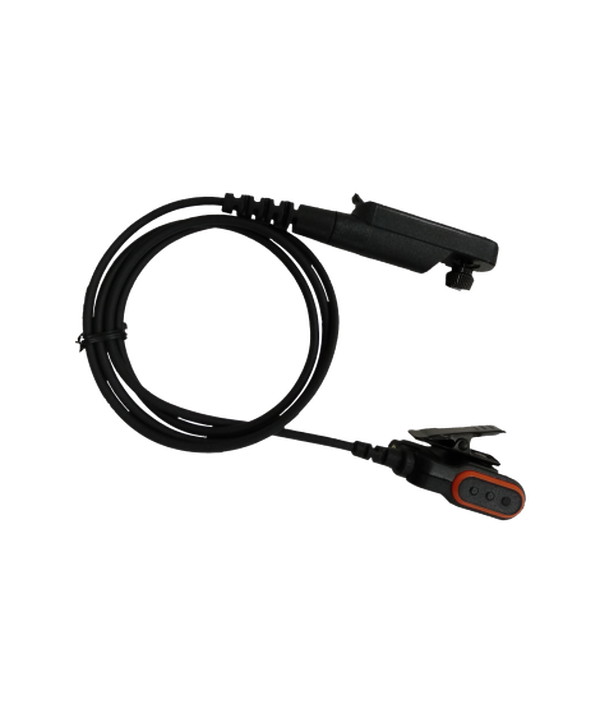

ACN-05 (EOL)
PTT&MIC cable
The MIC/PTT unit can be clipped for comfortable wearing.A short flying lead from the MIC/PTT is terminated with a 3.5mm audio jack socket, which connects the earpiece such as ES-01, ES-02, EH-01, EH-02 or EHS20.
Highlights
Functions
Technical Specifications
Specifications
- Weight
- about 40g
- Color
- black
- PTT key
- available
- Emergency key
- none
- Radio connector
- 13-pin connector
- Earpiece connector
- 3.5 mm jack socket
- Microphone sensitivity
- -43 ±3 dB @1kHz 3.0V 2.2K, 0dB=1V/Pa
- Ingress protection
- none
- Operating temperature
- -20°C to 60°C
- Storage temperature
- -40°C to 75°C
