PDC760

Handheld | LTE | DMR

Highlights

diagram indicating highlights of PDC760

Broadband and Narrowband Converged

Broadband data is supported by an LTE network (private or public), while the narrowband requirement is delivered by a private PMR network (DMR).

Multiple Security Assurances

The device supports authentication and both software and hardware encryption to prevent voice and data theft.

Situational Awareness

Advanced audio technology supported by in-built GPS positioning and front and rear cameras supporting 4K HD video for information gathering.

Rugged and Reliable

Dust and waterproof, rated IP67, with scratch and shatter-resistant Gorilla® Glass 3.

Rapid Charging

The latest smart battery technology delivers fast charge, 3 times faster than regular batteries. With 80% of the battery capacity charged within 30 minutes.

SmartKey

Allows the user to quickly toggle between widgets and applications on the device screen.

Functions

Created with Sketch. Accessory Options

Optimise with high capacity power and charger options, as well as the impressive VM685 Video Speaker Microphone for media streaming.

Created with Sketch. Dual Bluetooth

Bluetooth V4.2 delivers an enhanced data rate with low energy consumption through a secure connection for wireless connectivity.

Icon 24px Created with Sketch. Flexible Applications

Utilise the Hytera app development program (ADP), or push APK files to your device to improve your efficiency. You can even utilise the onboard applications and sensors provided.

Created with Sketch. OTAP

The Hytera Mobile Device Management (MDM) client can track device activity, push apps and updates over the air to your advanced radio fleet.

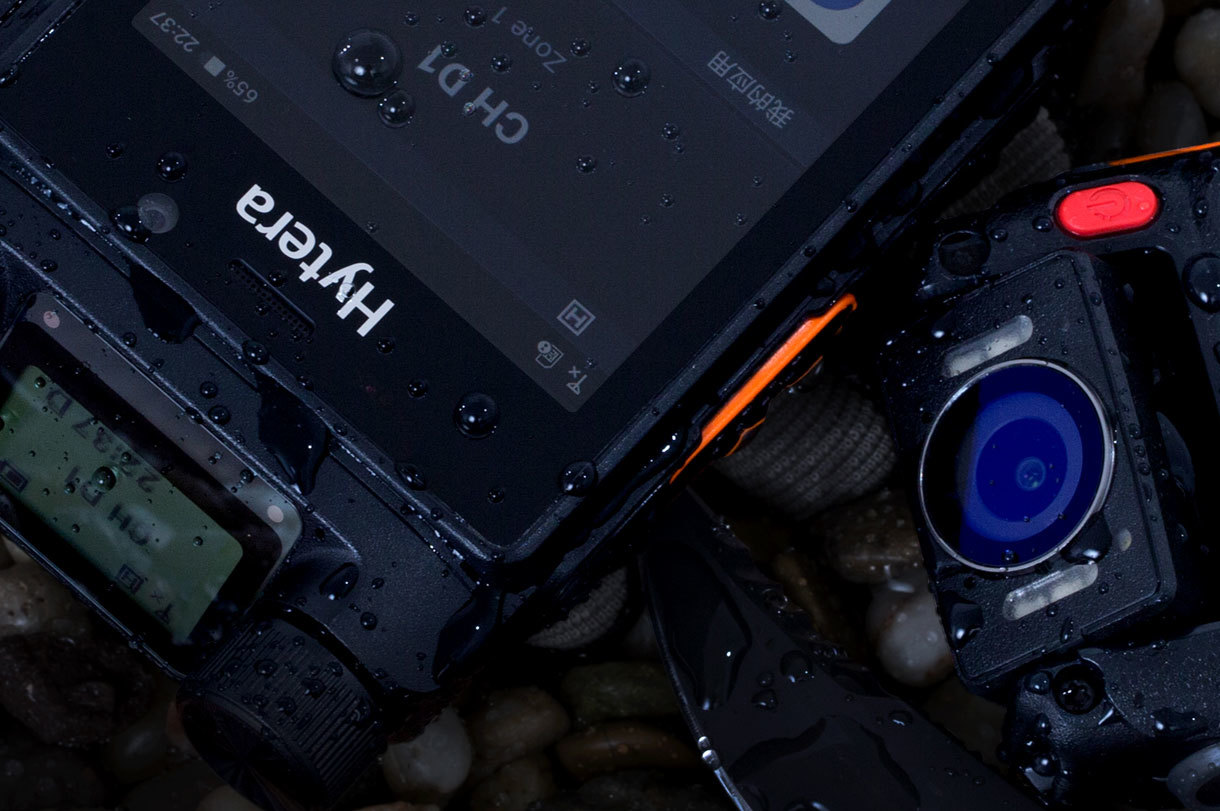

Pdc760 Closeup Creative

Created with Sketch. Roaming

Traverse networks, moving from LTE to DMR and back seamlessly to ensure you always remain connected. Dual SIM slots as standard.

Created with Sketch. Wi-Fi

Wireless connectivity for MDM programming and all manner of data applications, even operating as a portable hotspot.

Accessories for PDC760

Included as standard with PDC760 Included as standard with PDC760

Battery

Antenna

Charger & Power

Carrying

Audio

Cables

Other

Car Kit

Bodycam

Related products that work with the PDC760

Technical Specifications

Standard Functions and Frequency Range

Frequency Range
ETSI DMR TIER II & TIER III, UHF1: 350-527 MHZ
LTE Band
3GPP LTE FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28 TDD-LTE: B38/B39/B40/B41
CDMA
CDMA 1xRTT BC0 CDMA2000 1xEV-DO BC0
GSM
850/900/1800/1900MHz
Wi-Fi
802.11 b/g/n, 2.4GHz
NFC
13.56MHz
Dual BT
V4.2 LE+EDR
Positioning System
GPS, BDS, GLONASS
Sensors
Proximity Sensor, Ambient Light Sensor, 6-axis E-Compass, Barometer, Gyroscope, Accelerometer

General Specifications

Dimensions (H x W x D)
139.5 x 68 x 25.3mm
Weight (with antenna & battery)
≤378g
AP Processor
8-core, 2.0GHz
Memory
Broadband RAM: 3 GB ROM: 32 GB eMMC Expandable to 128 GB with Micro SD cardNarrowband Expandable to 16 GB with Micro SD card
Ports
20 PIN Heavy duty Accessory connector
Top Display Resolution
1.0” 128 x 96
Main Display Resolution
4.0” 800x480 Capacitive, Touch screen, Gloves Compatible
Front & Rear Cameras
13MP Auto Focus
Operating Voltage
7.6V(Rated)
Battery
2900 mAh Li-polymer, 4000 mAh (Optional)
Battery Life
Standard Battery : 14h (12h voice(5:5:90)+2h video) : Optional Battery : 20h (18h voice(5:5:90)+2h video)

Environmental Specifications

Dust & Water Intrusion
IP67
Shock and Vibration
MIL-STD-810 G

Transmitter Specifications

Channel Spacing
25/20/12.5kHz
TX Power
1W/4W
RX Sensibility
≤-121dBm
Frequency Stability
±0.5ppm
Antenna Impedance
50Ω
Audio Output
2W(Rated)
Microphone
NRR: 30dB (Static), 20dB(Non-static) AEC: > 60dB

Video, Photo Resolution & Format

Video File Types
3GPP(.3gp), MPEG-4(.mp4), QuickTime(.mov), WEBM(.webm), Windows Media(.asf,.wmv), RealMedia(.rmvb, .rm), MPEG-PS(.mpg, .mpeg), MPEG-TS(.ts), AVI(.avi), Matroska(.mkv)
Image File Types
JPEG(.jpg), GIF(.gif), PNG(.png), BMP(.bmp)
Video Recording Quality
Front Camera: 13MP 1080P HD up to 30 frames per second (fps), Rear Camera:13MP 4K HD
Watermark
Video & Photo

Audio

Audio
MP3(.mp3), WAV(.wav), 3GPP(.3gp), MPEG-4(.mp4,.m4a), ATDS raw AAC(.aac), MPEG-TS(.ts), FLAC(.flac), MIDI(.midi, .xmf, .mxmf), RTTTL/RTX(.rtttl, .rtx), OTA(.ota), iMelody(.imy), Ogg(.ogg), Matroska(.mka), QCELP(.qcp), RealMedia(.ra), Windows Media(.wma), AC3(.ac3)
Input
Triple Mic Noise Suppression, Wind Noise Suppression, Echo Cancellation

Features

RRS
NO. Planned for future release.
GPS
YES
Telemetry
NO. Planned for future release.
Option Board
NO
Intrinsically Safe Option
NO
Bluetooth Audio
YES
Radio Check
NO. Planned for future release.
Alert Call
NO. Planned for future release.
Stun / Unstun
YES
Remote Monitor
YES
Priority Interrupt
YES
IP Site Connect
NO. Planned for future release.
Roaming
YES
Work Order
NO. Planned for future release.
5 Tone Signalling
NO
2 Tone Signalling
NO
HDC1200 Signalling
NO
DTMF (Phone Patch)
YES in R1.5
Intelligent audio
YES
VOX
YES in R2.0
Priority Scan
NO. Planned for future release.
GPS SMS
YES in R2.0
Vibration
YES
Emergency Mode
YES
Lone Worker
YES in R2.0
Mandown
YES in R2.0
Scrambler (Analogue)
YES in R2.0
Digital Encryption
E2EE, basis encryption10/32/64
Multiple Key Encryption Decode
YES
Multi-language Menu
YES
Pseudo Trunking in DMO and RMO
YES in R2.0
Power on & off user logo programming
YES
Voice Interrupt [PTT]
YES
No of Contacts (Conventional)
1024
No of Contacts (Trunking)
512
No. of Channels (Conventional)
1024
No. of Zones (Conventional)
128
Text Messaging
YES
Quick Text Messages
YES
MPT1327 / 1343 Trunking
YES in R2.0
Tier 3 Trunking
YES
Over-the-Air Programming
YES
Analogue Only Version
YES
Data Services via Bluetooth
YES
Auto Power Select
NO
