MarineLink™ COM series

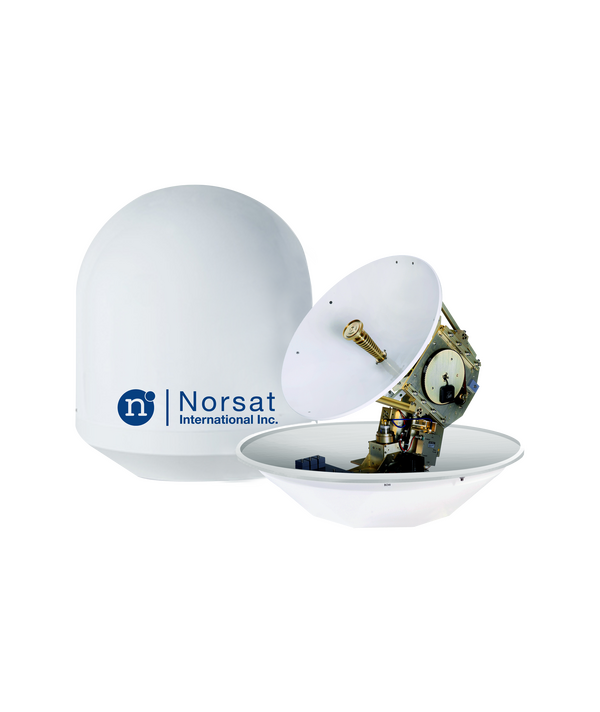

Norsat MarineLink™ COM series
Norsat MarineLink™ COM series provides reliable and uninterrupted satellite communication at sea. The MarineLink’s 3-axis operating platform and 360 degree high-speed tracking design ensures a reliable link in even the most rugged conditions. With its simple setup and pre-programmed satellite almanac, staff with minimal training can have a MarineLink system up and transmitting in just a matter of minutes.
Highlights
Functions
Accessories for MarineLink™ COM series
Included as standard with MarineLink™ COM series
Related products that work with the MarineLink™ COM series
Technical Specifications
COM100X
- Dish Diameter
- 100 cm (39”)
- Antenna Dimensions
- 144 cm (D) x 152 cm (H)
- Antenna Weight
- 120 kg
- Radome Material
- FRP
- Frequency Band
- TX: 7.9 ~ 8.4 GHz RX: 7.25 ~ 7.75 GHz
- G / T
- 16.37 dB/K
- RX / TX Gain
- 36.5 dBi / 8.15 dBi
- LNB
- Linear / Internal PLL
- BUC
- 50 / 100 / 125 / 150 / 175 W
- Operating Platform
- 3-Axis
- Cross Angle
- ±35˚
- Ship Motion (Roll/Pitch/Yaw)
- ±24˚ / ±14˚ / ±8˚
- Tracking Speed
- More than 90˚ / sec
- Azimuth Range
- Unlimited
- Skew Control
- Automatic (-95˚ ~ +95˚)
- Elevation Angle
- -20˚ ~ +105˚
- Vibration Damper
- Wire Rope Isolator/ Shock Absorber
- Temperature
- -20˚C to 55˚C
- Humidity
- Up to 100% @ 40˚C
- Antenna Input Power
- 48VDC, 3.2A / 48VDC, 2.3A
COM120KU
- Dish Diameter
- 120 cm (47”)
- Antenna Dimensions
- 161 cm (D) x 163 cm (H)
- Antenna Weight
- 138 kg
- Radome Material
- FRP
- Frequency Band
- TX : 13.75 ~ 14.5 GHz RX : 10.7 ~ 12.75 GHz
- G / T
- 20.79 dB/K
- RX / TX Gain
- 40.95 dBi / 42.87 dBi
- LNB
- Linear / Internal PLL
- BUC
- 2 / 3 / 4 / 6 / 8 / 10 / 16 / 20 / 40 W
- Operating Platform
- 3-Axis
- Cross Angle
- ±35˚
- Ship Motion (Roll/Pitch/Yaw)
- ±25˚ / ±15˚ / ±8˚
- Tracking Speed
- More than 90˚ / sec
- Azimuth Range
- Unlimited
- Skew Control
- Automatic (-95˚ ~ +95˚)
- Elevation Angle
- -10˚ ~ +120˚
- Vibration Damper
- Rubber Damper/ Shock Absorber
- Temperature
- -20˚C to 55˚C
- Humidity
- Up to 100% @ 40˚C
- Antenna Input Power
- 90 to 264V~, 47/63Hz, 17A
COM150KU
- Dish Diameter
- 150 cm (59”)
- Antenna Dimensions
- 212 cm (D) x 206 cm (H)
- Antenna Weight
- 260 kg
- Radome Material
- FRP
- Frequency Band
- TX : 13.75 ~ 14.5 GHz RX : 10.7 ~ 12.75 GHz
- G / T
- 22.89 dB/K
- RX / TX Gain
- 43.8 dBi / 45.25 dBi
- LNB
- Linear / Internal PLL
- BUC
- 2 / 3 / 4 / 6 / 8 / 10 / 16 / 20 / 40 W
- Operating Platform
- 3-Axis
- Cross Angle
- ±35˚
- Ship Motion (Roll/Pitch/Yaw)
- ±25˚ / ±15˚ / ±8˚
- Tracking Speed
- More than 90˚ / sec
- Azimuth Range
- Unlimited
- Skew Control
- Automatic (-95˚ ~ +95˚)
- Elevation Angle
- -10˚ ~ +120˚
- Vibration Damper
- Wire Rope Isolator/ Shock Absorber
- Temperature
- -20˚C to 55˚C
- Humidity
- Up to 100% @ 40˚C
- Antenna Input Power
- 90 to 264V~, 47/63Hz, 17A
COM150X
- Dish Diameter
- 150 cm (59”)
- Antenna Dimensions
- 212 cm (D) x 206 cm (H)
- Antenna Weight
- 314 kg
- Radome Material
- FRP
- Frequency Band
- TX: 7.9 ~ 8.4 GHz RX: 7.25 ~ 7.75 GHz
- G / T
- 19.7 dB/K
- RX / TX Gain
- 39 dBi / 40 dBi
- LNB
- Linear / Internal PLL
- BUC
- 50 / 100 / 125 / 150 / 175 W
- Operating Platform
- 3-Axis
- Cross Angle
- ±35˚
- Ship Motion (Roll/Pitch/Yaw)
- ±25˚ / ±15˚ / ±8˚
- Tracking Speed
- More than 90˚ / sec
- Azimuth Range
- Unlimited
- Skew Control
- Automatic (-95˚ ~ +95˚)
- Elevation Angle
- -10˚ ~ +120˚
- Vibration Damper
- Wire Rope Isolator/ Shock Absorber
- Temperature
- -20˚C to 55˚C
- Humidity
- Up to 100% @ 40˚C
- Antenna Input Power
- 90 to 264V~, 47/63Hz, 17A
