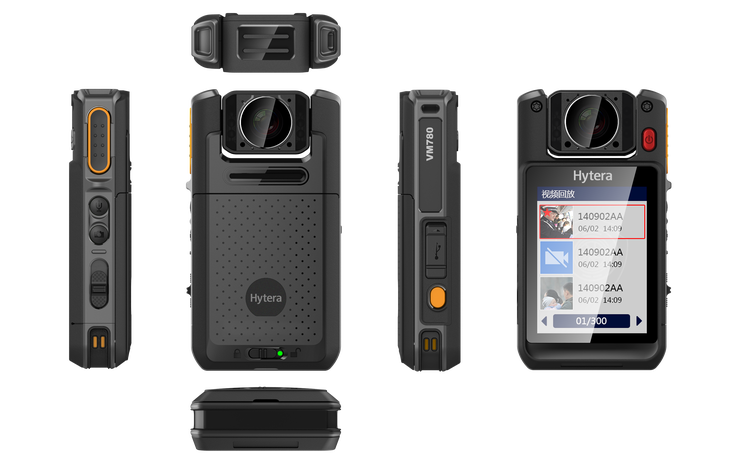

VM780

Highlights

diagram indicating highlights of VM780

Slimline and Compact

This lightweight device weighs less than 200g including the standard battery.

Ergonomic Design

Easy-to-use device includes buttons for functionalities such as video recording, image capturing and PTT button.

Simple Charging and Programming

The micro USB interface can be used to charge, export data and audio output (3-in-1 function port).

Charging Contact

Separate port for charging and data collection (2-in-1 function port).

Loud and Clear Audio

The camera has a powerful 3-watt speakers to deliver loud and clear audio during the call, even in high noise environments.

Outstanding Recording Performance

216° rotatable camera, 1080p high definition image and videos captured.

2.8”Color Touch Screen

High Capacity Battery

Equipped with a 3500mAh battery, VM780 can provide more than 9 hours battery life for continuous video shooting with 720P@30FPS. Besides, extra battery replacement is supported.

Functions

Created with Sketch. ADVANCED DATA ENCRYPTION

VM780 adopts the AES256 advanced encryption technology to protect all the captured evidence (including images, audio and video) in local storage or during transmission.

Data Acq 2 Created with Sketch. ON-SITE REAL-TIME VIDEO STREAMING

With 3G/4G/Wi-Fi, this device can transmit on-site real-time video back to the command and dispatch centre, allowing the dispatcher to see how events unfold on the field.

Created with Sketch. AUDIO GROUP CALL

Using the dispatcher, VM780 can initiate one-to-one and one-to-many calls with other VM780s over 3G/4G or Wi-Fi network. This instant communication feature enhances users efficiency.

Created with Sketch. HD ROTATABLE CAMERA

The VM780 lens can be rotated vertically, providing optimal angle of the view and flexible wearing positions for users to capture critical events.

Created with Sketch. BE A POC RADIO

The VM780 serves as a two-way radio with the Push-To-Talk over Cellular (PoC) applications. Over 3G/LTE/WLAN network, this camera allows you to make a voice call simply by pressing the PTT key. The camera has a powerful 3-watt speakers to deliver loud and clear audio during the call, even in high noise environments.

4G-20x20 ON-SITE REAL-TIME VIDEO STREAMING

With 3G/LTE/WLAN, VM780 can transmit the on-site real-time video back to the command & dispatching center, to let the dispatcher see how events are actually unfolding in the field.

IMG 0863

Accessories for VM780

Included as standard with VM780 Included as standard with VM780

Related products that work with the VM780

Technical Specifications

Size and Weight

Dimensions (H x W x D)
114.5mm x 61mm x 25.5mm
Weight (Including Battery)
<195g (2500mAh), <205g (3500mAh)
Lens
Glass lens, scratch-resistant
Battery Life
>9hrs (continuous recording with 720P@30FPS, daytime, normal operation)
Battery Capacity
2500mAh/3500mAh
Charging Time
<4hrs
Screen Size
2.8-inches
Screen Resolution
240 x 320 QVGA
Colour Type
TFT-LCD colour touch screen

Memory Capacity

Memory
RAM: 2GB; Storage: 16GB/ 32GB/ 64GB/ 128GB

Connection/ Protection/ Compatibility

Wi-Fi
802.11 b/ g/ n
Bluetooth
BT4.2
Connector
Micro USB, 4-pin contact port

Accessories

Standard
USB cable, power adapter, belt clip, battery, user manual
Optional

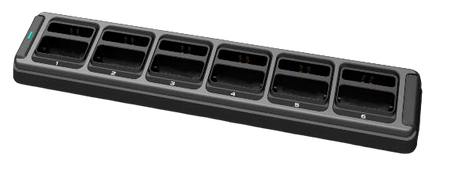

Multi-unit charger (with data collection function), earpiece, carrying belt, strap
