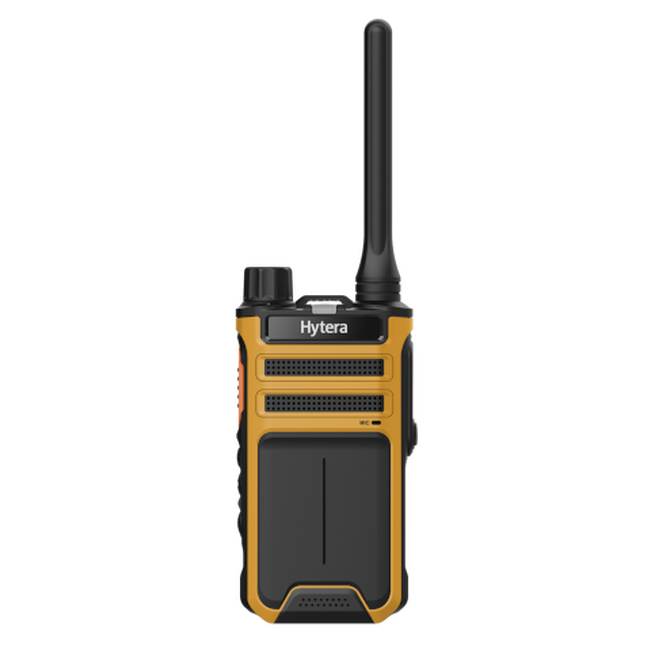

AP529LF

Handheld | Analogue

Highlights

diagram indicating highlights of AP529LF

Aesthetic Design

For ease of use

PTT Key

Push-to-talk key easily accessible

High Reliability

The AP529LF is IP66-graded water-proof and dust-proof and meets stringent MIL-STD-810H military requirements for protection against vibration

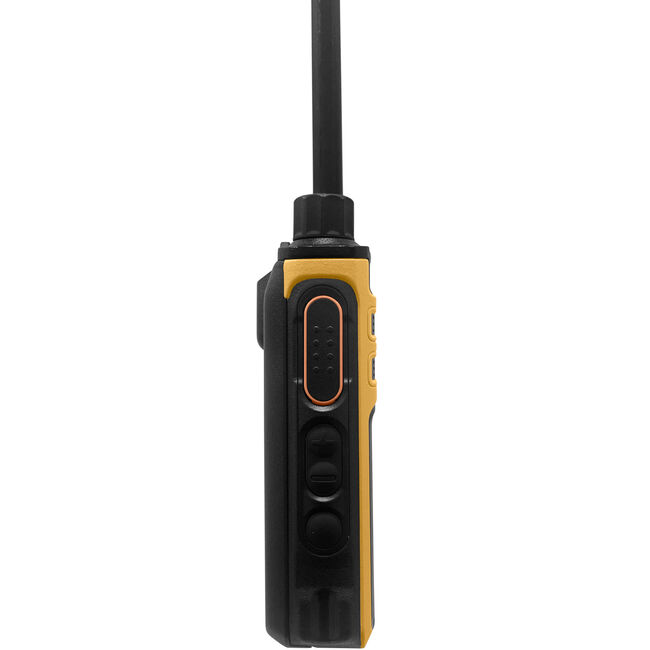

Independent Volume Keys

Extends the knob life and can keep the volume settings unchanged after restart

Anti-Slip and Durable Texture

Anti-abrasive housing for better handling

Type-C USB port

Allows to charge the radio with a power bank anywhere

Functions

Created with Sketch. Deliver Crystal-Clear Audio

From the 3-watt speaker to the advanced noise cancellation algorithm, AP529LF eliminates unwanted ambient noise, reduces distortion, and suppresses howling caused by radios close to each other. So AP529LF delivers loud and clear audio, helping the users get business-essential information to be more productive at any time.

StayConnected-0x20 Communicate Throughout the Workplace

AP529LF comes with the high-sensitivity RX module and high-efficiency monopole antenna for stronger signal penetration. Thus, the users can communicate smoothly even with low battery or in weak signal areas. Additionally, the antenna has the unique thickened thread design for great flexibility, better radiation efficiency, prolonged service life, and extended communication range.

Created with Sketch. Outlast Your Shift

Long-lasting battery life keeps the users connected throughout an extended shift. With the low power consumption design and the 4,000 mAh Li-polymer battery, AP529LF can work for up to 25 hours on a single charge. Through the 10W power adapter and the Type-C USB cable, AP529LF can be fully charged in just 3 hours.

Created with Sketch. Trustworthy Quality

AP529LF is built with Hytera quality. At Hytera, quality is everywhere, from the world's largest professional mobile radio (PMR) production line, to strict supplier management system, to stringent quality control process. All of these contributes to the durability and reliability of each radio.

Accessories for AP529LF

Included as standard with AP529LF Included as standard with AP529LF

Related products that work with the AP529LF

Technical Specifications

General

Frequency Range
446.0 - 446.2 MHz
Channel Capacity
32
Zone Capacity
2
Zone Channel
16
Channel Spacing
12.5kHz
Operating Voltage
3.7V (rated)
Battery
4000 mAh Li-Polymer
Battery Life (5/5/90 Duty Cycle)
25h
Frequency Stability
±0.5ppm
Antenna Impedance
50Ω
Dimensions (H x W x D)
105 x 55 x 29.5mm
Weight (with antenna & battery)
200g

Receiver

Sensitivity
0.18μV (12dB SINAD)
Adjacent Channel Selectivity
TIA-603: 60dB@12.5kHz; 70dB@20/25kHz
ETSI: 60dB@12.5kHz; 70dB@20/25kHz
Intermodulation
TIA-603: 70dB@12.5/20/25kHz
ETSI: 65dB@12.5/20/25kHz
Spurious Response Rejection
TIA-603: 70dB@12.5/20/25kHz
ETSI: 70dB@12.5/20/25kHz
Blocking
TIA-603: 80dB; ETSI: 84dB
Hum and Noise
40dB@12.5kHz; 43dB@20kHz; 45dB@25kHz
Rated Audio Power Output
0.5W
Rated Audio Distortion
≤3%
Audio Response
+1dB to -3dB
Conducted Spurious Emission
<-57dBm

Transmitter

Power Output
0.5W
FM Modulation
11K0F3E@12.5kHz; 14K0F3E@20kHz; 16K0F3E@25kHz
Conducted/Radiated Emission
-36dBm<1GHz;-30dBm>1GHz
Modulation Limiting
±2.5kHz@12.5kHz;±4.0kHz@20kHz;±5.0kHz@25kHz
FM Hum & Noise
40dB@12.5kHz;43dB@20kHz;45dB@25kHz
Adjacent Channel Power
60dB@12.5kHz; 70dB@20/25kHz
Audio Response
+1dB to -3dB
Audio Distortion
≤3%

Enviornmental

Operating Temperature
-30℃~+60℃(Battery is from -20℃)
Storage Temperature
-40℃ to +85℃
ESD
IEC 61000-4-2 (Level 4)
±8kV (contact); ±15kV (air)
Dust and Water Intrusion
IP66
Humidity
GJB150A-2009、MIL-STD-810 H
Vibration, Drop & Shock
GJB150A-2009、MIL-STD-810 H
