PD505LF

Handheld | DMR

Licence-free digital two-way radio

Packed with functionality and licence-free, the Hytera PD505LF handheld digital two-way radio impresses with its safety features and flexibility to support for both digital and analogue communications, ideal for manufacturing, events and hospitality environments.

For pricing and availability, use the link below to find and contact your local dealer.

Highlights

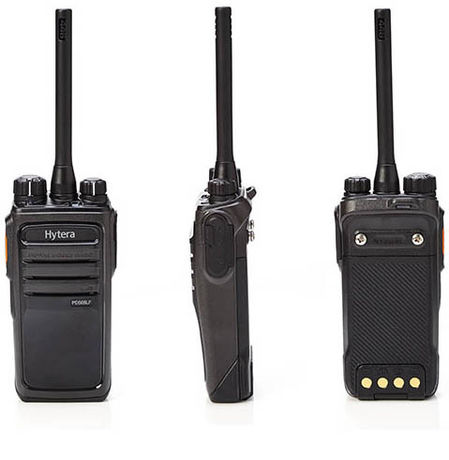

diagram indicating highlights of PD505LF

Clear Communications

Superior audio quality, even in noisy environments, is delivered via a powerful loudspeaker and noise cancelling technology

User-friendly

Simple to pick up and use with a large PTT (push-to-talk) and clear channel selector

Maximise Channel Capacity

Hytera patented Pseudo-trunking technology dynamically utilizes the two timeslots available on a DMR frequency to make efficient use of your channel capacity

Rugged and Reliable

IP54 rated against dust and water, certified to meet US military standards of impact, temperature and humidity

Long Battery Life

Operating time of approximately 16 hours in digital mode

Functions

Accessories for PD505LF

Included as standard with PD505LF Included as standard with PD505LF

Battery

BL2010

Hytera Bl2010

Lithium-Ion Battery (2000mAh)

BL1504

included as standard with this product Hytera Bl1504

Lithium-Ion Battery (1500mAh)

Charger & Power

PS7501

Hytera Ps7501

Power Adapter without power cable

CHV09

Hytera Chv09

Vehicle Power Adapter

CH10A06 (EOL)

Hytera Ch10 A06

Dual Charger (includes PS2005)

CH10L30

CH10 L30 436x494

Rapid-Rate Charger (without adapter)

MCA08

Hytera Mca08

Six-Unit Charger Including Power Adapter

POA59

Hytera Poa59

Charging Unit

POA38 (EOL)

Hytera Poa38

Battery Adapter

MCL32 (EOL)

MCL32 470x390

Multi-unit Charger for Li-ion Battery( 2A)

MCL39

MCL39 600x464

Multi-unit Charger for Li-ion Battery( 2A)

MCA26

MCA26 800x720 new

Multi-unit Charger for Li-ion Battery( 2A)

PS15002

Hytera Ps7501

Power Adapter without power cable

CH10A07

included as standard with this product Hytera Ch10 A07

MCU Rapid-Rate Charger

PS1044

included as standard with this product PS1044 470x558

Universal Standard Switching Power Adapter

Mounting

BRK20

Hytera Brk20

Wall-Mount Installation Kit

Carrying

NCN011

Hytera Ncn011

Nylon Carrying Case

NCN019

NCN019 470x558

LCBN13

Hytera Lcbn13

Universal Nylon Chest Pack

BC08

included as standard with this product Hytera Bc08

Belt Clip

RO03

included as standard with this product Hytera Ro03

Wrist Strap

Audio

ACM-01

Hytera Acm 01

PTT & MIC Water Proof Cable (for use with receive-only Earpiece)

EAM12 (EOL)

Hytera Eam12

Earpiece with Acoustic Tube and In-line PTT (Black)

EAM13 (EOL)

Hytera Eam13

Earpiece with Acoustic Tube and In-line PTT (Black)

EAS03

EAS03 470x558

Earpiece with Acoustic Tube (Receive Only)

EH-01

Hytera Eh 01

C-Style Earpiece (Receive-Only)

EH-02

Hytera Eh 02

Swivel Style Earpiece (Receive-Only)

EHM15 (EOL)

EHM15 A 470x558

D-Style Earpiece with In-line PTT and Microphone (Black)

EHM18-A

EHM18 A 470x558

C-Style Earpiece with In-line PTT and Microphone (Black)

EHM19 (EOL)

Hytera Ehm19

C-Style Detachable Earpiece with In-line PTT and Microphone (Black)

EHM20 (EOL)

Hytera Ehm20

Swivel Style Detachable Earpiece with In-line PTT (Black)

EHS18 (EOL)

Ehs18 470X558

C-Style Earpiece (Receive Only)

ES-01

Hytera Es 01

Earbud without Earpiece (Receive-Only)

ES-02 (EOL)

Hytera Es 02

Earbud with Acoustic Tube (Receive-Only)

ESM12 (EOL)

Hytera Esm12

Earbud with In-line PTT and Microphone (Black)

SM08M3

Hytera Sm08 M3

Remote Speaker Microphone With 3.5mm Audio Jack and Swivel Clip

SM26M1

SM26 M1 352x501

Remote Speaker Microphone (without emergency button)

Cables

PC63

Hytera Pc63

Programming Cable (USB)

Related products that work with the PD505LF

BD505LF

BD505 LF Front

Licence-free DMR Handheld Radio (PMR446)

AP529LF

AP525 LF 600x480

Licence-Free Analogue Radio

Technical Specifications

General

Frequency Range
Licence Free 446MHz
Channel Capacity
24 Analogue, 24 Digital
Digital Protocol
ETSI-TS102 361-1,2 & 3
Battery Life (5-5-90 Duty Cycle)
1500mAh, Analogue 11h, Digital 16h
Dimensions(W×H×D)
115 x 54 x 27mm
Weight
Approx 260g (1500mAh Li-ion)
Display
NO
Keypad
NO
Programmable Buttons
1

Receiver

Sensitivity
Analogue: 0.22µV (12dB SINAD)
Analogue: 0.22µV (12dB SINAD) (typical)
Digital: 0.22µV / BER 5%
Selectivity
TIA-603: 60dB @12.5kHz / 70dB @20/25kHz
ETSI: 60 dB @12.5kHz / 70dB @20/25kHz
Intermodulation
TIA-603: 70 dB
ETSI: 65 dB
Spurious response rejection
TIA-603: 70 dB
ETSI: 70 dB
Blocking
> 84 dB
Hum and noise
40 dB @12.5kHz
43 dB @20kHz
45 dB @25kHz
Related audio power output
0.5 W
Rated audio distortion
<3%
Audio response
+1 to -3 dB
Conducted spurious emission
< -57 dBm

Transmitter

RF Power Output
0.5 W
FM Modulation
11K0F3E@12.5kHz
4FSK Digital Modulation
12.5 kHz data only: 7K60FXD
12.5 kHz data and voice: 7K60FXW
Conducted/Radiated Emission
-36dBm < 1GHz; -30dBm > 1GHz
Modulation limiting
±2.5 kHz @ 12.5 kHz
FM hum and noise
40dB @ 12.5 kHz
Adjacent channel power
60dB @ 12.5 kHz
Audio distortion
≤3%
Digital Vocoder Type
AMBE+2

Environmental Specifications

Dust & Water Intrusion
IP54 Standard
