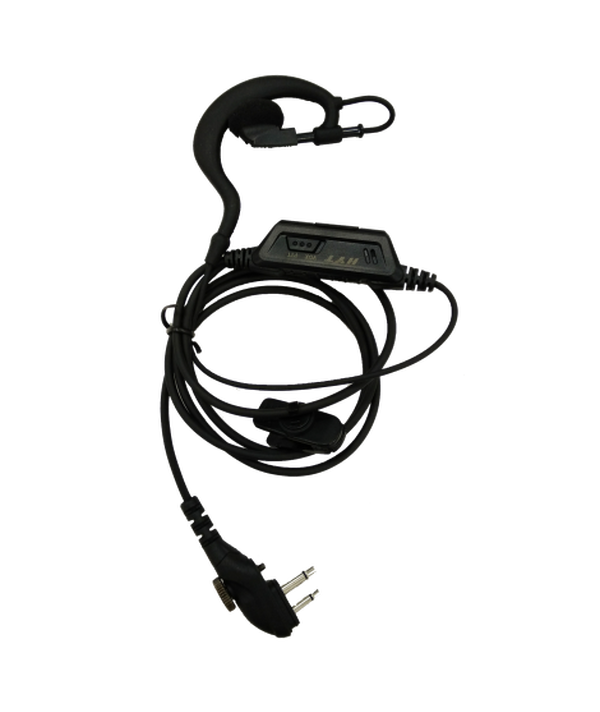

EHM18-A

Audio

Highlights

Functions

Technical Specifications

Specifications

Weight
about 35 g
Color
black
PTT key
available
VOX
available
Emergency key
none
Radio connector
6-pin double jack connector
Microphone sensitivity
-45 ±3dB @1kHz 3.0V 2.2KΩ; 0dB=1V/Pa
Speaker power
20 mW (rated); 30 mW (max.)
Speaker impedance
32 Ω ±15% @1kHz
Speaker frequency response
109 ±4dB @1kHz at 10 mW
Ingress protection
none
Operating temperature
-20 to 60 °C
Storage temperature
-40 to 85 °C
Suitable DMR radios
BD505LF, BD505, BD555, BD615, PD405, PD415,PD485, PD505LF, PD505, PD565
Suitable analogue radios
POWER446, TC-446S, TC-508, TC-510, TC-518, TC-580, TC-610, TC-620, TC-700 - Not for 'P' Version (TC-610P, TC-700P)
