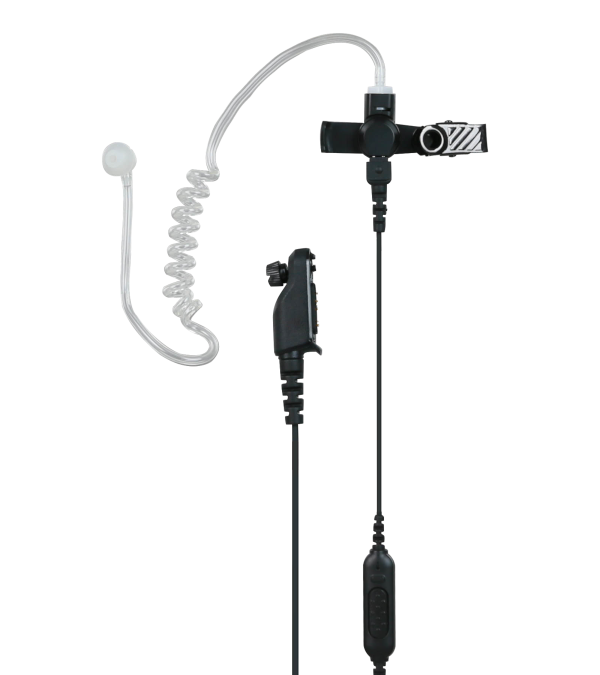

EAN30-P
Earpiece with in-line MIC PTT & Transparent Acoustic Tube with chip for original Hytera verification (directly attached to radio) (RoHS) (REACH)
Highlights
Functions
Technical Specifications
Specifications
- Weight
- about 60g
- Color
- black
- PTT Key
- available
- VOX
- none
- Emergency Key
- none
- Microphone Sensitivity
- -40±3 dB@1 kHz 3.0 V 2.2 kilohm; 0 dB=1 V/Pa
- Speaker Power
- 2 W (rated); 3 W (max.)
- Speaker Impedance
- 16 Ω±15%@2 kHz
- IP Rating
- none
- Operating Temperature
- -30℃ to +65℃
- Storage Temperature
- -40℃ to +75℃
- Compatible radios:
- AP515, AP585, BP515, BP565, AP515LF, AP525LF, BP515LF
