AP519

Handheld | Analogue

Highlights

diagram indicating highlights of AP519

Independent Volume Keys

Extends the knob life and can keep the volume settings unchanged after restart

Aesthetic Design

For ease of use

Anti-Slip and Durable Texture

Anti-abrasive housing for better handling

Functions

StayConnected-0x20 Extended Communications Distance

Brand-new radio frequency scheme and antenna design | Sensitivity up to 0.18 μV | Communication distance increased by 11%

Created with Sketch. Clear and Loud Audio

Noise cancellation | Loudness up to 90 dB (at 30 cm away, 300 Hz –3 kHz), increased by 3.4%

Created with Sketch. Improved User Experience

Flame-retardant polycarbonate plastic housing | Worm finish | Double-shot injection | Long-life keys | Center-placed antenna and knob from the side view | Independent volume keys | 9-pin accessory connector

Created with Sketch. Fast Charging

95% charged in 2.5 hours and fully charged in just 3.15 hours. Thanks to USB Type C connectivity it can be easily charged with standard USB cables and power supply units and even USB power banks.

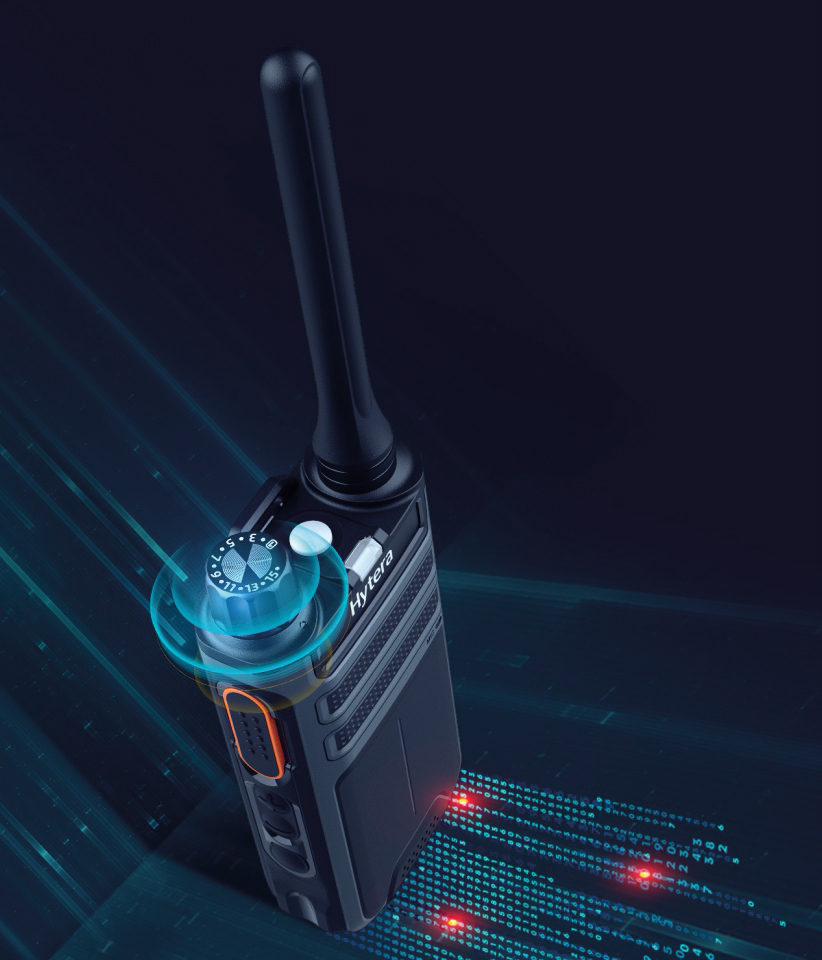

AP5 01

Accessories for AP519

Included as standard with AP519 Included as standard with AP519

Related products that work with the AP519

Technical Specifications

General

Frequency Range
400-470MHz
136-174MHz
Channel Capacity
32
Zone Capacity
2
Channels Per Zone
16
Channel Spacing
12.5kHz/20kHz/25kHz
Operating Voltage
3.7V (rated)
Battery
4000mAh 3.7V
Battery Life (5/5/90 Duty Cycle, High TX Power)
18h
Frequency Stability
±0.5ppm
Antenna Impedance
50Ω
Dimensions (H x W x D)
105*55*29.5mm
Weight (with antenna & battery)
200g ±5g
BT (Optional)
BT 5.0 BLE+EDR

Receiver

Sensitivity
0.18μV (12dB SINAD)
Adjacent Channel Selectivity
TIA-603: 60dB@12.5kHz; 70dB@20/25kHz
ETSI: 60dB@12.5kHz; 70dB@20/25kHz
Intermodulation
TIA-603: 70dB@12.5/20/25kHz
ETSI: 65dB@12.5/20/25kHz
Hum and Noise
40dB@12.5kHz; 43dB@20kHz; 45dB@25kHz
Rated Audio Power Output
0.5W
Rated Audio Distortion
≤3%
Audio Response
+1~-3dB
Conducted Spurious Emission
<-57dBm

Transmitter

RF Power Output
VHF: 4-5W / 1W
UHF: 3-4W / 1W
FM Modulation
11K0F3E@12.5kHz; 14K0F3E@20kHz; 16K0F3E@25kHz
Conducted/Radiated Emission
-36dBm<1GHz; -30dBm>1GHz
Modulation Limiting
±2.5kHz@12.5kHz; ±4.0kHz@20kHz; ±5.0kHz@25kHz
FM Hum & Noise
40dB@12.5kHz; 43dB@20kHz; 45dB@25kHz
Adjacent Channel Power
60dB@12.5kHz; 70dB@20/25kHz

Environmental

Operating Temperature
-30℃ to +60℃
Storage Temperature
-40℃ to +85℃
ESD
IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
Dust and Water Intrusion
IEC60529-IP54
Humidity
MIL-STD-810 G
Shock and Vibration
MIL-STD-810 G
