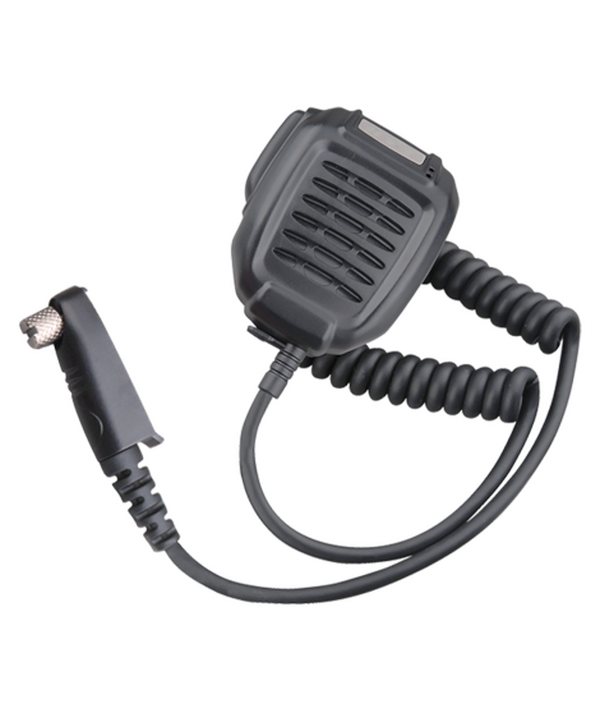

SM08N3-P (EOL)
Remote Speaker Microphone, IP54 with 3.5mm audio jack
Easy to use and compact designed remote speaker microphone with 3.5mm audio jack (for use with receive-only earpiece)
Highlights
Functions
Technical Specifications
Specifications
- Dimensions
- 74 x 58 x 30 mm
- Weight
- about 150g
- Color
- black
- PTT key
- available
- Emergency key
- none
- Audio interface
- 3.5.mm jack
- Radio connector
- 13 pin
- Microphone Sensitivity
- -40 ±3dB @1kHz 3.0V 2.2K; 0dB=1V/Pa
- Speaker Power
- 1W (rated) , 2W (max)
- Speaker Impedance
- 16Ω ±15% @1.5kHz
- Speaker Frequency Response
- 83 ±3dB @1kHz at 1W/30cm
- IP Rating
- IP54
- Operating Temperature
- -30 to 60 °C
- Storage Temperature
- -40 to 85 ℃
- Compatible radios:
- AP515, AP585, BP515, BP565, AP515LF, AP525LF, BP515LF
