BP369

Handheld | DMR

Highlights

diagram indicating highlights of BP369

Stay Informed Across the Workplace

Thanks to the 3W TX power and up to 0.18μV receiving sensitivity, the BP369 enables the users to communicate with each other wherever they are in the workspace.

Save frequencies

With digital communication via time slots your employees can simultaneously hold two calls independently of each other.

0.9 Inch OLED display

Clear and easy to see.

Fast charging

The built-in battery can be fully charged in just 2.5 hours, and a one-hour charge provides 8 hours of communication.

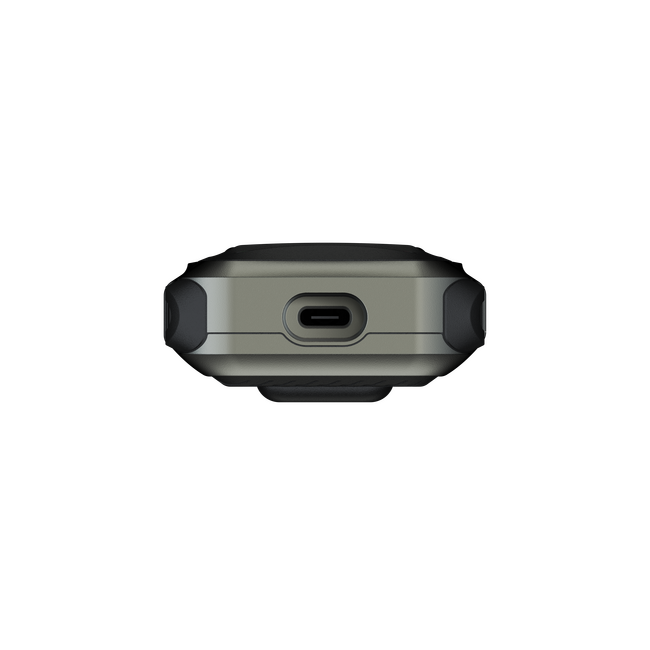

One port fits all

Users can program, upgrade and charge the BP369 through the same Type-C USB port on the bottom.

Functions

Created with Sketch. One Port Fits All

The users can program, upgrade, and charge the BP369 with the same Type-C USB port.

Created with Sketch. Rapid On-the-Go Charging

The battery could be fully charged in just 2.5 hours and 1-hour charging time will bring 8-hour communication.

StayConnected-0x20 Cost-saving Frequency Sharing

By implementing the two-slot communication solution, two users can now transmit their voices simultaneously on the same frequency point, effectively reducing costs.

Created with Sketch. Stay Informed Across the Workplace

Thanks to the 3W TX power and up to 0.18μV receiving sensitivity, the BP369 enables the users to communicate with each other wherever they are in the workspace.

Ergo-20x20 VOX

Using the Voice Operated Transmit (VOX) feature, the users can make a hands-free call without pressing and holding the PTT key.

Accessories for BP369

Included as standard with BP369 Included as standard with BP369

Related products that work with the BP369

Technical Specifications

General

Frequency Range
400~440 MHz, 430~470 MHz
Channel Capacity
256
Zone Capacity
8
Channel Spacing
12.5 kHz/20 kHz/25 kHz
Operating Voltage
3.8 V
Battery
2,200 mAh Li-Polymer
Battery Life (5/5/90 Duty Cycle, High TX Power)
Analog: 10 hours Digital: 14 hours
Weight
135g
Dimensions(H×W×D)
158 mm x 55 mm x 24 mm

Environmental

Operating Temperature
-20 ℃ to +50 ℃
Storage Temperature
-40 ℃ to +85 ℃
