S1 mini
S1 mini/S1 mini LF Business Two-way Radio
Hytera S1 mini/S1 mini LF is a tiny business-ready analog radio for restaurant, book store, or beauty salon, and more. It blends fashion and communication like never before—first-of-its-kind design, minimalist style, reliable PTT service, superb audio, long-lasting battery, and more. This radio helps you better stay connected with your team while staying focused on your customers.
Highlights
Functions
One Charge Double Shifts

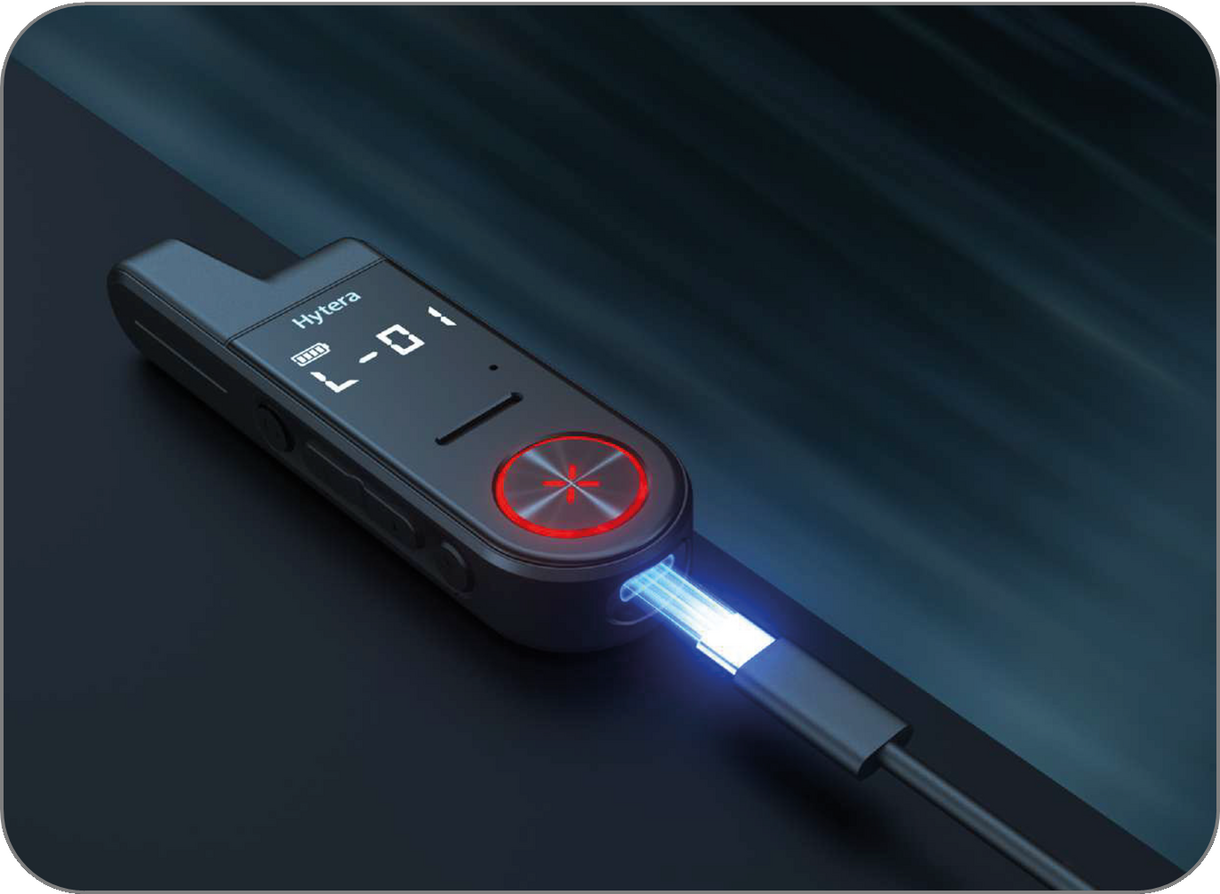

750 mAh Li-polymer battery for 18 hours (0.5W) or 16 hours (1W) of working time and 100 hours of standby time. Universal USB Type-C charging port leaves you worry-free and unconstrained.

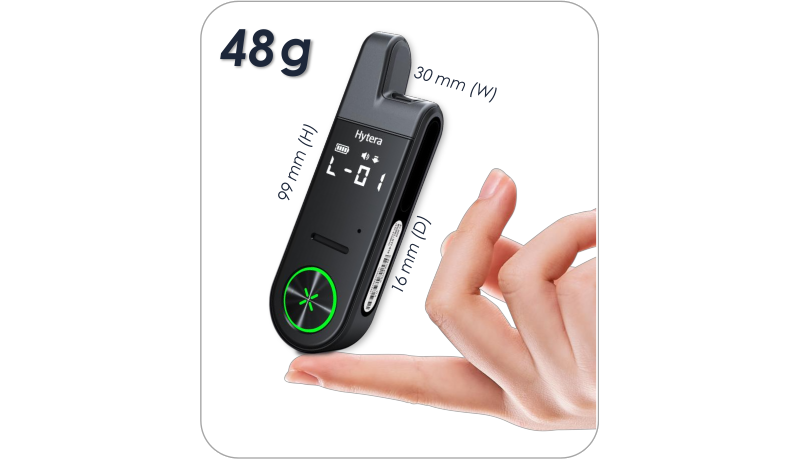

Mini and Light
Only 48 g weight. Go light as air. You can wear an S1 mini/S1 mini LF on the chest, pocket, belt, or lapel. The chic style is suitable for any outfits.
Chat Privately
10 g standard headset — ergonomically engineered with ultra-soft silicone for perfect fit and long-time comfort, adjustable for either ear and delivering clear and pristine audio.

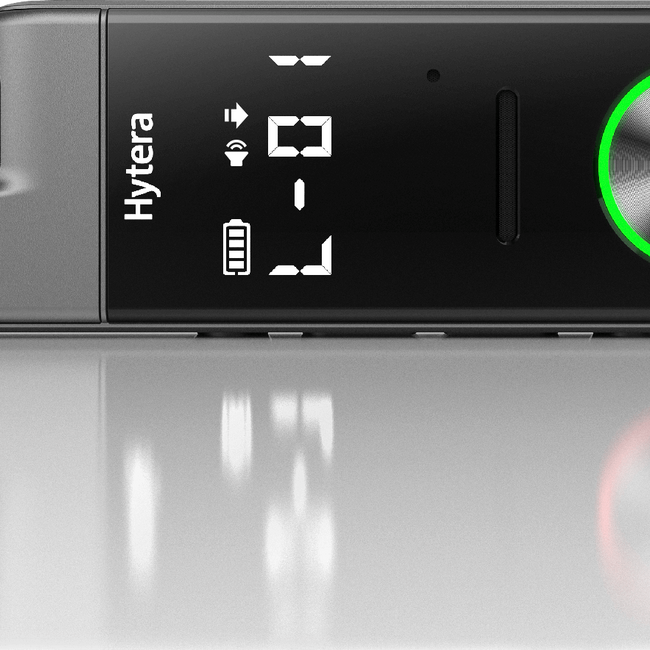

HD Screen
Anti-dirt. Anti-abrasion. Anti-oil. Let you clearly see the channel number, ID, battery level, or other key information.

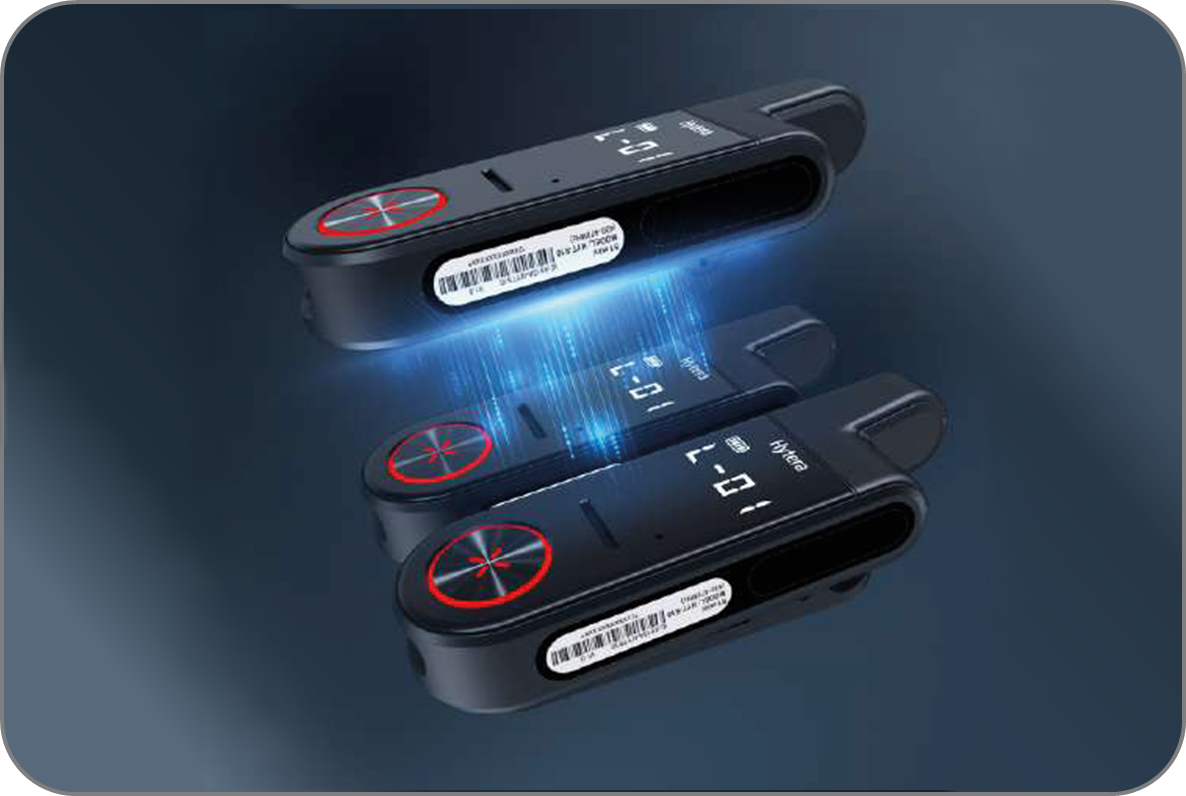

AirClone
Clone configuration data from one S1 mini to many. All done in a flash.

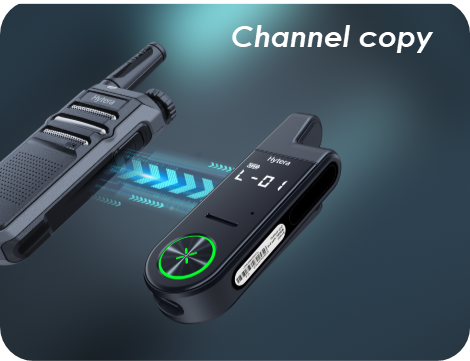

Channel Copy
Quickly communicate with your existing radios, regardless of brands and models. S1 mini protects your assets in its own way.

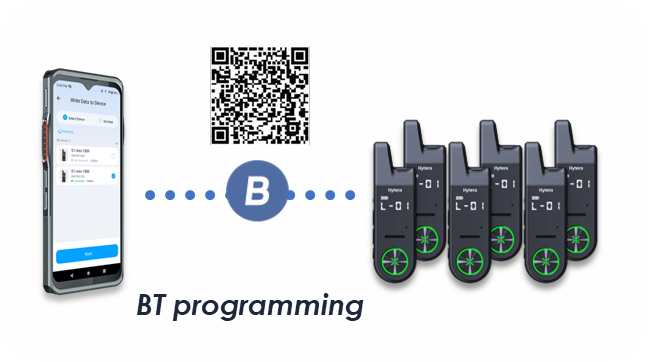

Simple Management
Manage your radio with an Android phone that's always at your fingertips. Programming, batch configuration, backing up frequency information, and more can be performed via Bluetooth.

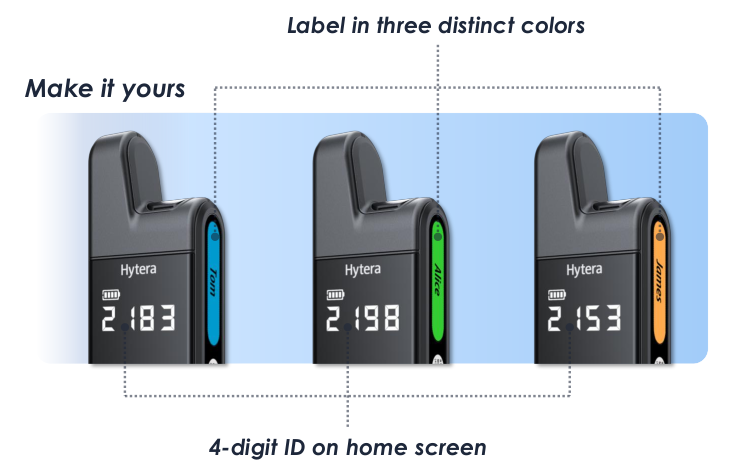

Unique Label Design
The packing box contains three different colored labels that can be attached to the side of the S1 mini. Easy to spot your radio from the crowd.

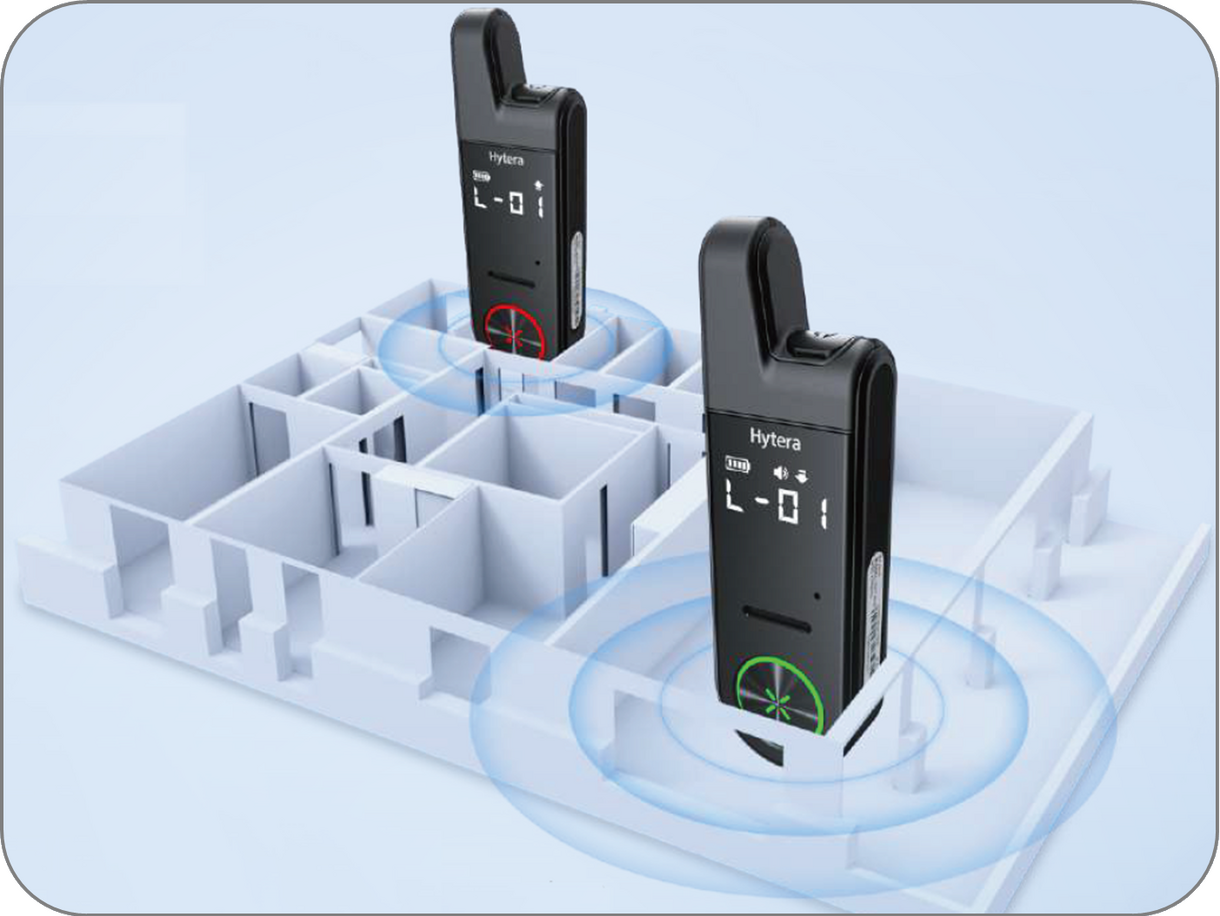

Stay Connected - Talk Freely
10,000 square meters of indoor communication range. The S1 mini/S1 mini LF delivers reliable, seamless communications to improve team coordination and collaboration in the workplace.
Chat Privately
10 g standard headset — ergonomically engineered with ultra-soft silicone for perfect fit and long-time comfort, adjustable for either ear and delivering clear and pristine audio.
Accessories for S1 mini
Included as standard with S1 mini
Charger & Power
Cables
Carrying
Audio
Related products that work with the S1 mini
Technical Specifications
General
- Model
- HYT-S10/HYT-S10 LF
- Frequency Range
- 400-440 MHz, 430-470 MHz/446 MHz
- Analog/Digital
- Analog
- Channel Capacity
- 16
- Zone Capacity
- 1
- Battery
- 750mAh Li-Polymer (Built-in)
- Battey Life (5/5/90 Duty Cycle, TX Power)
- With earpiece: 16 hrs (1W)/18 hrs (0.5W)
- Dimensions(H×W×D) mm
- 99×30×16 mm (Without belt clip)
- Weight
- 48 g
- Display
- 0.88 inch
- BT
- BLE (only data) 5.0
Receiver
- Sensitivity
- 0.14μV
- Rated Audio Power Output
- 0.5W
Transmitter
- Power Output
- 400-440 MHz, 430-470 MHz: 1W 446MHz: 0.5W
- Audio Response
- +1 to -3dB
- Audio Distortion
- ≤3%
Environment
- Operating Temperature
- -10°C ~ +55°C
- Storage Temperature
- -30°C ~ +70°C
- ESD
- ±4kV (Contact) ±8kV (Air)
