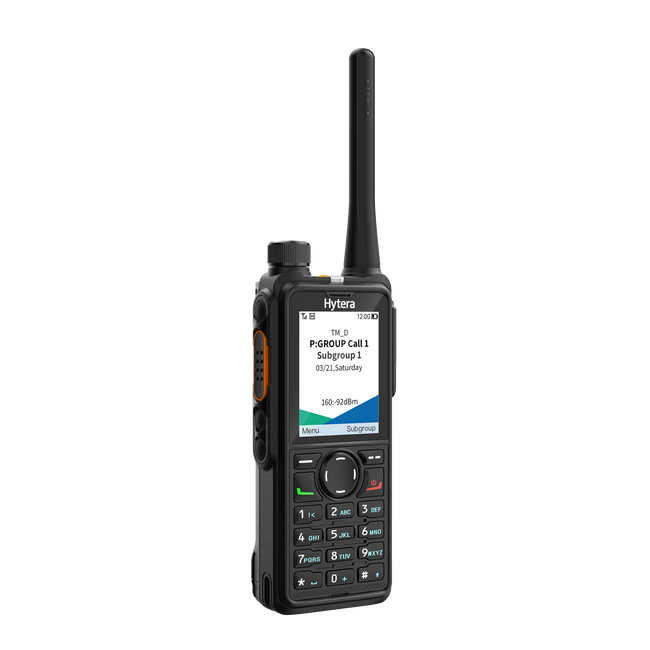

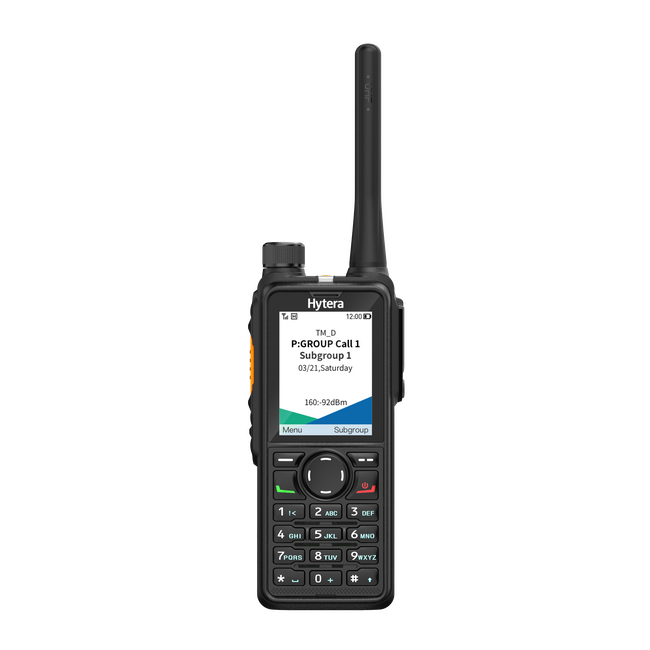

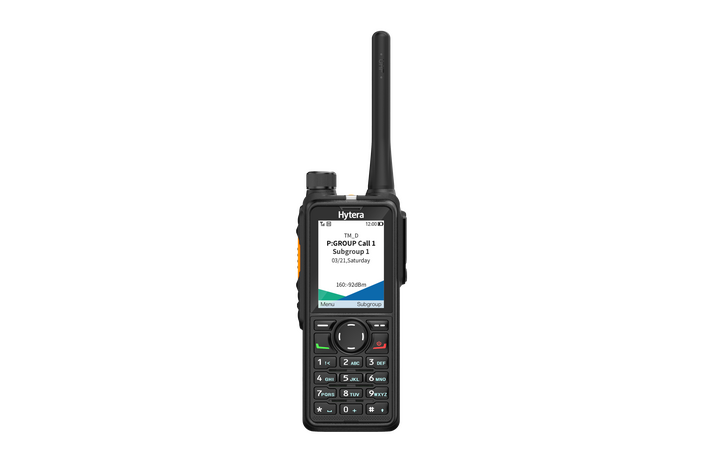

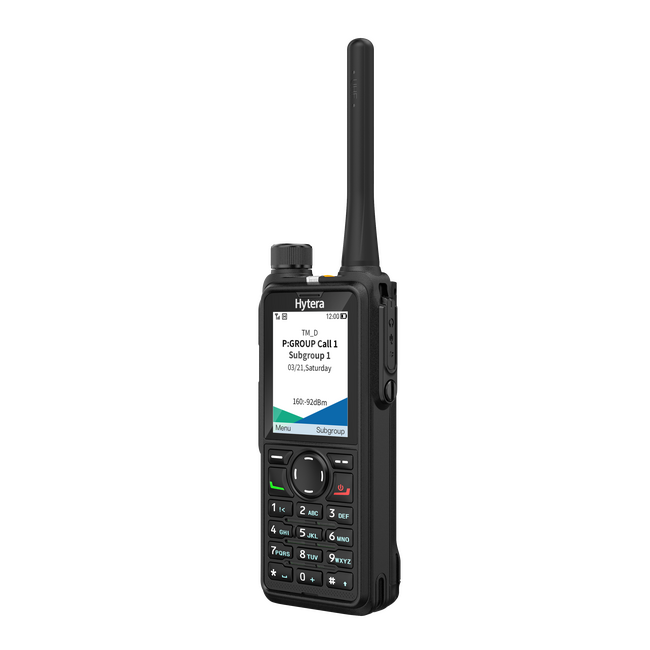

HP789

Handheld | DMR

Highlights

diagram indicating highlights of HP789

Thinner and Lighter

Compact design with 29.5mm in thicknesses, 310g in weight and large PPT for easy carrying and operation.

Longer battery life

Innovative and large capacity Li-polymer battery to realize a shift life of 24 hours on high transmit power in 5/5/90 mode.

More intuitive and efficient

2.4-inch colour display ,new intuitive Ul for you to quick access and get the critical info at first sight.

Louder and clearer audio

Al-based noise cancellation technology to decrease the unwanted background noise and howling, support water-porting to drain out water automatically.

Ehanced Coverage

High receiver sensitivity and transimitted power to ensure communication in weak signal area.

Easy Operation

Unified knob for channel and volume selection,360° smart knob and multiple programmble buttons for easy operation.

Functions

Created with Sketch. LOUDER AND CLEARER AUDIO

Hytera provides industry-leading audio quality through a large forward-facing optimized speaker, and AI-based voice enhancement with deep learning ability that can accurately extract voice from noise in real time and decreases unwanted background noises as loud as 30db.

Tier3 Created with Sketch. EXTENDED COVERAGE AND CONNECTIVITY

The HP789 extends radio range through increased Tx power efficiency, Rx sensitivity, improved antenna gain, and reduced attenuation. This produces a 25% increase in coverage distance and signal penetration through buildings. The enhanced coverage improves efficiency and reduces network infrastructure costs.

HP7降噪

Created with Sketch. CLEAR AND BRIGHT DISPLAY

The HP789 features a 2.4-inch, 240x300 HD TFT-LCD display with up to 10 lines of content and an intuitive nine-grid interface. The display supports 262,000 colors, and is clearly visible in sunlight.

Created with Sketch. BLUETOOTH AND MICROSD CARD

Optional built-in Bluetooth enables connectivity to wireless accessories. The MicroSD card provides additional capabilities like voice recording.

HP7 UI 2

Created with Sketch. THINNER AND LIGHTER

An optimized mechanical design with advanced materials and a lightweight lithium polymer battery delivers a compact radio only 29.5mm thick that weighs less than 310g.

Created with Sketch. LONGER BATTERY LIFE

The latest in lithium polymer technology is used to power the HP7 Series radios for excellent performance. The battery is light and small, achieving a shift life of 24 hours on high transmit power with a duty cycle of 5/5/90.

HP7电池2

Created with Sketch. HIGHER LEVEL OF RUGGEDNESS

The HP789 is fully compliant with the IP68 and MIL-STD- 810 G standards. It is dustproof, impervious to water jets, submersible to a depth of 2 meters for 4 hours, and can stand up to drop shock testing at 2 meters. The HP789 antimagnetic speaker does not attract magnetic metal dust and shavings.

Created with Sketch. ENHANCED WORKER SAFETY

The HP789 radios are designed for worker safety with an easy access emergency button, emergency calling, and priority interrupt. Lone Worker prompts the user to press a key or speak to indicate they are safe. Man Down allows the radio to automatically enter emergency mode when the radio is inclined at a pre-set angle or remains motionless.

HP7 IP68

Accessories for HP789

Included as standard with HP789 Included as standard with HP789

Systems that work with HP789

Technical Specifications

General Specs

Frequency Range
UHF: 350-470MHz VHF: 136-174MHz
RF Output Power
UHF: 1W/ 4W VHF: 1W/ 5W
Channel Capacity
1024(64 zones with 256 channels per zone)
Channel Spacing
12.5kHz / 20kHz / 25kHz
Digital Protocol
ETSI-TS102 361-1,-2,-3
Operating Voltage
7.7V (rated)
Battery
2400mAh Li-polymer anti-counterfeit
Battery Life (5/5/90, Digital, High TX Power)
24h (GNSS off), 20h (GNSS on)
Dimensions (H x W x D)
132 x 55 x 29.5mm
Weight (with antenna and battery)
310g
Display
LCD, 320×240 pixel, 262,000 colours, 2.4 inch, 10 rows
Keypad
Full kepad
Dedicated Emergency Button (Top Key)
Support
Bluetooth(Optional)
BT5.0BLE+EDR
GNSS(Optional)
GPS,GLONASS,BDS
Programmable Buttons
8
Dust & Water Intrusion
IP68
Receiver Sensitivity (Digital)
0.18 μV (5% BER)
Receiver Sensitivity (Analog)
0.18μV (12dB SIN AD) 0.16μV (Typical) (12dB SIN AD)

Key Features

Operation Mode
Analogue/DMR Conventional,IP multi-sites, XPT,DMR Simulcast, DMR Trunking(licensed)
Call type
Private Call, Group Call, All Call, Broadcast Call, Emergency Call, PSTN/PABX Call, Call Alert, Call Priority
Data Service
Text Message, Status Message, Quick Text Message
Safety
Emergency, Remote Monitor, Man Down, Lone Worker, Stun/Revive, Authentication, Air Interface Encryption, End-to End Encryption,
Analog
Scramble,2 Tone, HDC1200,CTCSS/CDCSS
