E-pole100
Digital Wireless Ad-Hoc Repeater

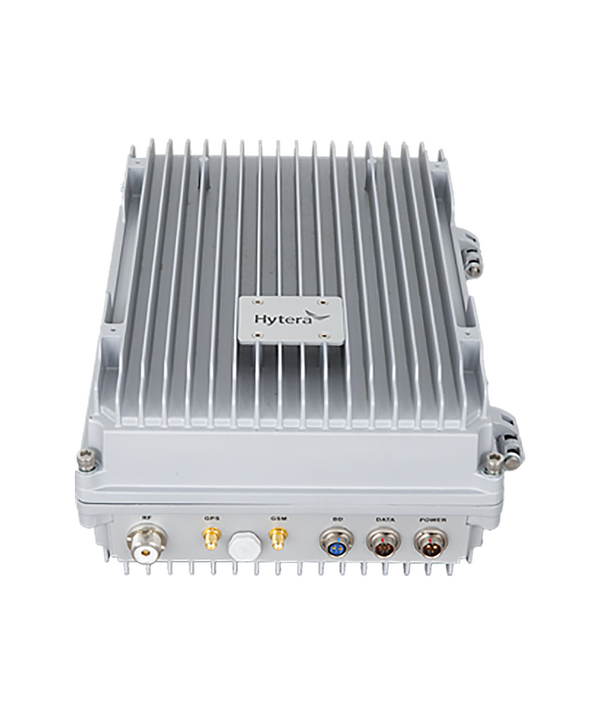

Hytera E-pole100 is a device for fixed narrowband voice wireless networking which can be mounted to poles, walls, street lamps, and buildings. It can provide wide and stable wireless communication coverage for a long time while avoiding the cabling problem in wired network construction.
Highlights
Functions
Flexible Installation
Support Pole-mounted or wall-mounted.
Fast Connection to E-pack100
Build up ad-hoc network with E-pack100 when powered on.
31-node Network
Support up to 31-node repeater networking and uses the wireless interconnection technology to avoid the cabling problem.
Accessories for E-pole100
Included as standard with E-pole100
Related products that work with the E-pole100
Technical Specifications
General
- Private network mode
- DMR Tier II
- Network Capacity
- 32
- Backup Battery Capacity
- 2Ah/10.8V
- Backup Battery Life
- 3~5 minutes
- Frequency Range
- 136-174MHz, 350-400MHz, 410-470MHz
- Channel Spacing
- 12.5kHz
- Frequency Stability
- ±0.5ppm
- Antenna Impedance
- 50Ω
- Dimensions(H×W×D) mm
- 316×223×133
- Weight
- 7.3Kg
Receiver
- Adjacent Channel Selectivity
- ETSI:60dB @ 12.5kHz / 70dB @ 25kHz
Transmitter
- Power Output
- 5W/10W/20W, adjustable
- Channel Power
- 60dB @ 12.5kHz, 70dB @ 25kHz
Environmental
- Vibration, Drop & Shock
- MIL-STD-810 C/D/E/F/G
- Dust & Water Intrusion
- IP56
