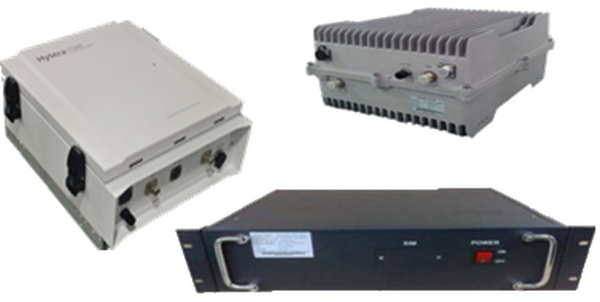

TS-9200
Bi-Directional Amplifier
As a Bi-Directional Amplifier (BDA), TS-9200 is used to provide bidirectional communication between radio terminals and the base station in order to fit in any kind of environment. It can be used outdoors to extend the coverage range of base station, making communication services available in areas with no or weak signals. Additionally, it can be used indoors as the signal source to improve signal strength. With a multichannel selecting unit, TS-9200 BDA can selectively amplify the signals, ensuring the frequency purity of repeated signals and the stability of output power. It has excellent compatibility and is now widely used in trunking communication systems such as TETRA, DMR, MPT-1327, APCO25 as well as conventional communication system.
Highlights
Functions
Modularized design, easy for maintenance
Flexible monitoring (GSM, ethernet or serial port), convenient for maintenance and management.
SDR (Software Definition Radio) technology, filtering irrelative and ensuring stable output power & clean spectrum output.
Function of Channel Switch. With this functions, the channel will automatically be shut down if there is no call in the coverage, which can strongly reduce the impact of base stations.
Dustproof, moistureproof & waterproof, with low requirements on installation environment;
With high-linearity power amplifier and high-rejection duplexer, capable of rejecting intermodulation and spurious signals;
Accessories for TS-9200
Included as standard with TS-9200
Related products that work with the TS-9200
Technical Specifications
Integrated RF BDA
- Frequency Range
- VHF/ 330-470MHz/800MHz
- Amplifier Type
- Band-selective / Channel-selective(8 channels)
- Protection
- Ip65
- Weight
- 25kg
- Dimension (W*H*L）
- 357mm×217mm×453mm
- Power Supply
- Standard:AC220V±20%，50±5HzOptional: DC-40～-55
- Connector Type
- N-connector (female)
- Environment Humidity
- ≤ 95% RH
- Operating Temperature
- -25℃～+55℃
- Input\Output Impedance
- 50Ω
- Signal Delay
- ≤ 12us (Channel-selective) ≤ 6us (Band-selective)
- Power Consumption
- ≤ 230W
- Downlink Gain
- 95±3dB(Channel-selective) 90±3dB(Band-selective)
- Downlink Max Input Level
- ≤-10dBm
- Downlink Max Output Power
- 40dBm( UHF/800M) 37dBm(VHF)
- Uplink Gain
- 95±3dB(Channel-selective) 90±3dB(Band-selective)
- Uplink Max Input Level
- ≤-10dBm
- Uplink Max Output Power
- 33dBm( UHF/800M) 30dBm (VHF)
Analog Fiber Optical BDA（Coupling by air） Frequency Range
- Frequency Range
- VHF/ 350-470MHz/800MHz
- Amplifier Type
- Band-selective / Channel-selective(8 channels)
- Protection
- Master Unit:IP40, Slave Unit:IP65
- Weight
- Master Unit≤25kg Slave Unit≤25kg
- Dimension (W*H*L）
- 400*200*530mm
- Power Supply
- Standard:AC220V±20%, 50±5Hz,Optional: DC-40～-55V
- Connector Type
- N-connector (female)
- Monitoring Mode
- Standard Interface:RS232 Optional: GSM/Ethernet
- Environment Humidity
- ≤ 95% RH
- Operating Temperature
- -25℃ ~+55℃
- Input\Output Impedance
- 50Ω
- Noise Factor
- ≤5dB
- Signal Delay
- ≤18us (Channel-selective) ≤ 6us (Band-selective)
- Power Consumption
- Master Unit≤90W, Slave Unit≤130W
- Downlink Gain
- 95±3dB(Channel-selective) 90±3dB(Band-selective)
- Downlink Max Input Level
- ≤-10dBm
- Downlink Max Output Power
- 37dBm
- Uplink Gain
- 90±3dB(Channel-selective) 85±3dB(Band-selective)
- Uplink Max Input Level
- ≤-10dBm
- Uplink Max Output Power
- 30dBm
Analog Fiber Optical BDA（Coupling directly）
- Frequency Range
- 350-470MHz/800MHz
- Amplifier Type
- Band-selective
- Protection
- Master Unit:IP40, Slave Unit:IP55
- Weight
- Master Unit≤8kg Slave Unit≤25kg
- Dimension (W*H*L)
- Master Unit:310*133*483mm Slave Unit:400*200*530mm
- Power Supply
- Standard:AC220V±20%, 50±5Hz, Optional: DC-40 ~-55V
- Connector Type
- N-connector (female)
- Monitoring Mode
- Standard Interface:RS232 Optional: GSM/Ethernet
- Environment Humidity
- ≤ 95% RH
- Operating Temperature
- -25℃～+55℃
- Input\Output Impedance
- 50Ω
- Noise Factor
- ≤5dB
- Signal Delay
- ≤ 18us (Channel-selective) ≤ 6us (Band-selective)
- Power Consumption
- Master Unit≤20W, Slave Unit≤130W
- Downlink Gain
- 55±3dB
- Downlink Max Input Level
- ≤10dBm
- Downlink Max Output Power
- 37dBm
- Uplink Gain
- 50±3dB
- Uplink Max Input Level
- ≤-10dBm
- Uplink Max Output Power
- -10dBm
Digital Fiber Optical BDA（Coupling by air）
- Frequency Range
- 350-470MHz/800MHz
- Amplifier Type
- 16 or 24 Channels selective
- Protection
- Master Unit:IP40 ,Slave Unit:IP55
- Weight
- Master Unit≤25kg, Slave Unit≤25kg
- Dimension (W*H*L）
- 400*200*530mm
- Power Supply
- Standard:AC220V±20%, 50±5Hz, Optional: DC-40～-55V
- Connector Type
- N-connector (female)
- Network
- Star, chain type, ring type
- Monitoring Mode
- Standard Interface:RS232 Optional: GSM/Ethernet
- Environment Humidity
- ≤ 95% RH
- Operating Temperature
- -25℃～+ 55℃
- Input\Output Impedance
- 50Ω
- Noise Factor
- ≤5dB
- Signal Delay
- ≤ 18us；Provide automatic and manual delay compensation function
- Power Consumption
- Master Unit≤90W, Slave Unit≤130W
- Downlink Gain
- 95±3dB(Channel-selective)
- Downlink Max Input Level
- ≤-10dBm
- Downlink Max Output Power
- 37dBm
- Uplink Gain
- 90±3dB(Channel-selective)
- Uplink Max Input Level
- ≤-10dBm
- Uplink Max Output Power
- 30dBm
Digital Fiber Optical BDA（Coupling directly）
- Frequency Range
- 350-470MHz
- Amplifier Type
- 16 Channels selective
- Protection
- Master Unit:IP40, Slave Unit:IP55
- Weight
- Master Unit≤8kg, Slave Unit≤25kg
- Dimension (W*H*L）
- Master Unit:310*133*483mm Slave Unit:400*200*530mm
- Power Supply
- Standard:AC220V±20%, 50±5Hz, Optional: DC-40～-55V
- Connector Type
- N-connector (female)
- Networking
- Star, chain type, ring type
- Monitoring Mode
- Standard Interface:RS232 Optional: GSM/Ethernet
- Environment Humidity
- ≤ 95% RH
- Operating Temperature
- Master Unit: -10℃～+ 50℃ Slave Unit: -25℃～+55℃
- Input\Output Impedance
- 50Ω
- Noise Factor
- ≤5dB
- Signal Delay
- ≤ 18us；Provide automatic and manual delay compensation function
- Power Consumption
- Master Unit≤90W, Slave Unit≤130W
- Downlink Gain
- 50dB(Channel-selective)
- Downlink Max Input Level
- ≤-10dBm
- Downlink Max Output Power
- 37dBm
- Uplink Gain
- 50dB(Channel-selective)
- Uplink Max Input Level
- ≤-10dBm
- Uplink Max Output Power
- -10dBm
