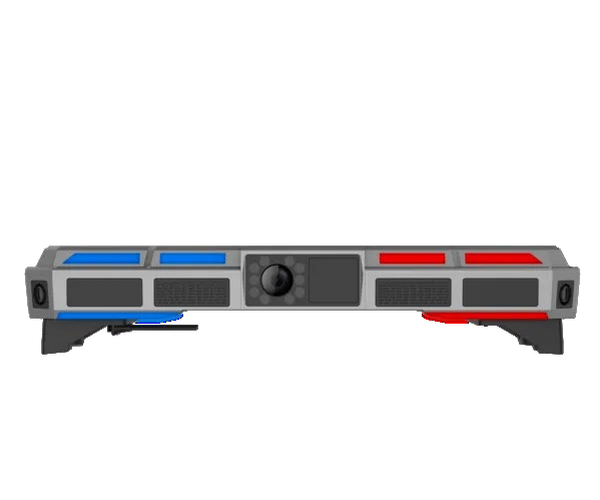

Intelligent Light Bar
Highlights
Functions
Accessories for Intelligent Light Bar
Included as standard with Intelligent Light Bar
Related products that work with the Intelligent Light Bar
Technical Specifications
Specification
- Camera
- Image Sensor
- Front Camera and Rear Camera:1/1.8'' Progressive Scan CMOS, Left Camera and Right
- Camera:1/3''
- Progressive Scan CMOS
- Max. Resolution
- Front Camera and Rear Camera:3840×2160, Left Camera and Right Camera:2688×1944
- Min. Illumination
- Color: 0.001 Lux @ (F1.2, AGC ON)
- Shutter Time
- 1/25 s to 1/100000 s
- Day & Night
- IR cut filter
- Lens
- Focal Length & FOV
- Front Camera and Rear Camera: 8 mm,horizontal FOV: 20.9°, vertical FOV: 37.3°, diagonal FOV:42.8°,
- Left Camera and Right Camera: 4 mm,horizontal FOV 43.7°, vertical FOV: 79.6°,
- diagonal FOV:93.8°
- Focus
- Fixed
- Iris Type
- Fixed iris
- Aperture
- Front Camera and Rear Camera: F1.6,Left Camera and Right Camera: F2.0
- Illuminator
- Built-in Supplement Light Type
- IR light(only Front Camera and Rear Camera)
- Built-in Supplement Light Range
- Up to 30 m
- IR Wavelength
- 850 nm
- Radar
- Working Frequency
- 76 to 77 GHz
- Modulation Waveform
- FMCW
- Horizontal Detection Angle
- ±60°
- Vertical Detection Angle
- ± 7°
- Detection Distance
- 120 m
- Distance Measurement Accuracy
- ≤ ±0.4 m
- Speed Measuring Range
- up to 250 km/h
- Speed Measuring Accuracy
- ± 2 km/h
- Max. Detectable Targets
- Up to 64
- Angle Resolution
- ±0.5°
- Video
- Main Stream
- Front Camera and Rear Camera: 50Hz(25fps)/60Hz(30fps):3840×2160,3392×2008,3072×1728,2688×1520,1920×1200,1
- 920×1080,1280×720,704×576,352×288
- Left Camera and Right Camera: 50Hz(25fps)/60Hz(30fps):2688×1944,1920×1080,1280×720,704×576,352×288
- Sub-Stream
- Front Camera and Rear Camera: 50Hz(25fps)/60Hz(30fps):1920×1080,1280×720,704×576,352×288
- Left Camera and Right Camera:
- 50Hz(25fps)/60Hz(30fps):1920×1080,1280×720,704×576,352×288
- Third Stream
- Front Camera and Rear Camera: 50Hz(25fps):1280×720,704×576,352×288 Front Camera and Rear Camera: 60Hz(30fps):1280×720,704×576,352×288
- Video Compression
- Main stream: H.264/ H.265/MJPEG,
- Sub-stream: H.264/ H.265/MJPEG, Third stream: H.264/ H.265/MJPEG
- Video Bit Rate
- 32 Kbps to 16 Mbps
- H.264 Type
- Baseline Profile,Main Profile,High Profile
- H.265 Type
- Main Profile
- Network
- Protocols
- TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,I
- GMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
- Simultaneous Live View
- Up to 6 channels
- API
- ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP
- User/Host
- Up to 32 users
- Security
- Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.1,Host authentication
- (MAC address)
- Network Storage
- Local storage,CVR,NVR,ANR,Micro SD/TF card (32 GB)
- Web Browser
- Chrome 89.0+, Edge
- Wireless (Mobile Communication)
- Frequency
- LTE FDD: Band 1/3/5/8 LTE TDD: Band 38/39/40/41 WCDMA/HSPA+: Band 1/8 TD-SCDMA: Band 34/39 GSM/GPRS/EDGE: 900/1800MHz
- Standard
- LTE-TDD,LTE-FDD,TD-SCDMA,EVDO,GPRS,CDMA
- SIM Card Type
- Nano SIM
- Image
- Image Settings
- Rotate mode,Saturation,Brightness,Contrast,Sharpness,Gain,White balance,Adjustable
- by client software or web browser.
- Day/Night Switch
- Auto,Schedule,Alarm Trigger
- Wide Dynamic Range (WDR)
- 140 dB
- Image Enhancement
- 3D DNR
- Supplement Detection (Satellite Positioning)
- Satellite Positioning
- GPS
- Interface
- Ethernet Interface
- 1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s)
- Alarm
- 1 input(s),1 output(s)
- USB
- 1 × USB 3.0 (5.0 V, 1.0 A)
- Event
- Basic Event
- HDD error,Network disconnected,IP address conflict
- Road Traffic and Vehicle Detection
- Coverage
- Up to 3 lane(s)
- Smart Function
- Front Camera and Rear Camera: License plate recognition, Vehicle type classification, color identification, no-plate vehicle capture, vehicle driving direction detection,
- Left Camera and Right Camera: License plate recognition,
- Motorcycle helmet detection and Manned motorcycle detection ( Optional )
- LPR Countries/Regions
- The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, ChinaTaiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan,
- Armenia, Turkmenistan, Tajikistan
- Accuracy (Under recommended installation and lighting conditions)
- Capture rate > 90%,
- Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 95%,
- Mistaken capture rate < 10%
- No License Plate Detection
- Supported
- Motorcycle LPR
- Supported
- Vehicle Type
- Car,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle,
- (Only the front and rear cameras support)
- Vehicle Color
- Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only.,
- (Only the front and rear cameras support)
- Vehicle Manufacturer
- 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino,
- Kia-Borrego, Chang‘an, Alfa, FORO,
- (Only the front and rear cameras support)
- Capture Speed Range
- up to 250 km/h (Only the front and rear cameras support)
- Face Detection
- Face Capture
- Detects up to 40 faces simultaneously,
- Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures
- Face Comparison
- Front Camera and Rear Camera:Up to 10 face libraries. Up to 10,000 faces for each library. 100,000 faces in total,
- Left Camera and Right Camera:Up to 1 face libraries. Up to 3,000 faces for each library. 3,000 faces in total,
- Supports face library encryption
- General
- Operating System
- Linux
- Power
- DC12V~DC14V, 18.3A,max. 220W,bare wire
- Material
- Aluminum alloy,PC plastics
- Dimension
- 1128.7 mm × 360 mm × 232 mm (44.4" × 14.2" × 9.1") (L × W × H)
- Package Dimension
- 1338 mm × 492 mm × 443 mm (52.7" × 19.4" × 17.5") (L × W × H)
- Weight
- Approx. 34.2 kg (75.4 lb.)
- With Package Weight
- Approx. 36.7 kg (80.91 lb.)
- Operating Condition
- -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
- Storage Condition
- -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing)
- General Function
- Password protection,One-key reset,Heartbeat
- Typical Application
- Al Aydy Al Amena products are classified into three levels according to their anti-corrosion performance. Refer to the following description to choose for your using environment.
- This model has NO SPECIFIC PROTECTION.
- Level
- Description
- Top-level protection
- Al Aydy Al Amena products at this level are equipped for use in areas where professional anti-corrosion protection is a must. Typical application scenarios include coastlines,
- docks, chemical plants, and more.
- Moderate protection
- Al Aydy Al Amena products at this level are equipped for use in areas with moderate anti-corrosion demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away from coastlines, as well as
- areas affected by acid rain.
- No specific protection
- Al Aydy Al Amena products at this level are equipped for
- use in areas where no specific anti-corrosion protection is needed.
