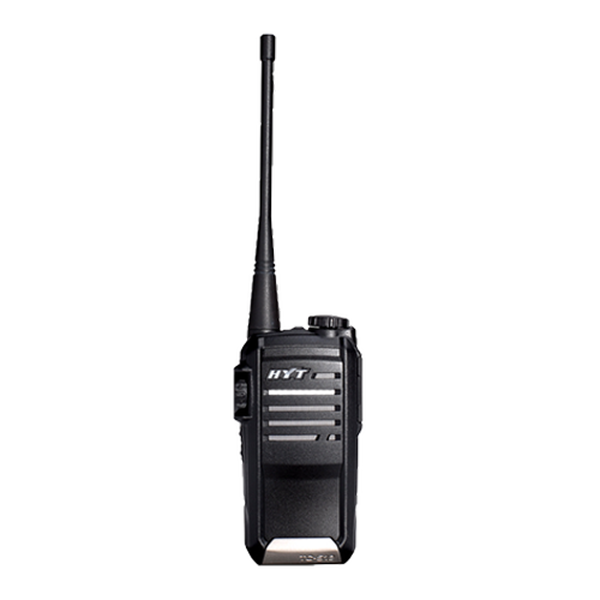

TC-518
Highlights
Functions
Accessories for TC-518
Battery
Antenna
Carrying
Charger & Power
Audio
Related products that work with the TC-518
Technical Specifications
General
- Frequency Range
- VHF: 136-174MHz UHF1: 400-470MHz
- Channel Capacity
- 16
- Channel Spacing
- 25KHz / 12.5KHz
- Operating Voltage
- 7.4V
- Battery
- 1300mAh Li-Ion
- Battery Life (5-5-90 Duty Cycle)
- 9 hours for 1300mAh Li-Ion Battery 14 hours for 2000mAh Li-Ion Battery
- Frequency Stability
- ±2.5ppm
- Operating Temperature
- -13°F to +149°F (-25°C to +65°C)
- Antenna impedance
- 50Ω
- Dimensions (HxWxD)
- 4.33" x 2.04" x 1.1" (110 x 52 x 28mm)
- Weight
- 8.4 ounces (240 grams)
Receiver
- Sensitivity
- ≤0.25uV/0.28uV
- Selectivity
- ≥70dB/55dB
- Intermodulation
- ≥60dB
- Spurious Response Rejection
- ≥70dB
- Signal to Noise
- ≥40/34dB
Transmitter
- Rated Audio Power Output
- 0.5W
- Rated Audio Distortion
- ≤5%
- RF Power Output
- VHF: 5W/2W UHF: 4W/2W
- Modulation
- F3E
- Spurious and Harmonics
- -36dBm (<1GHz), -30dBm (>1GHz)
- FM Noise
- 40dB/34dB
- Audio Distortion
- ≤5%
