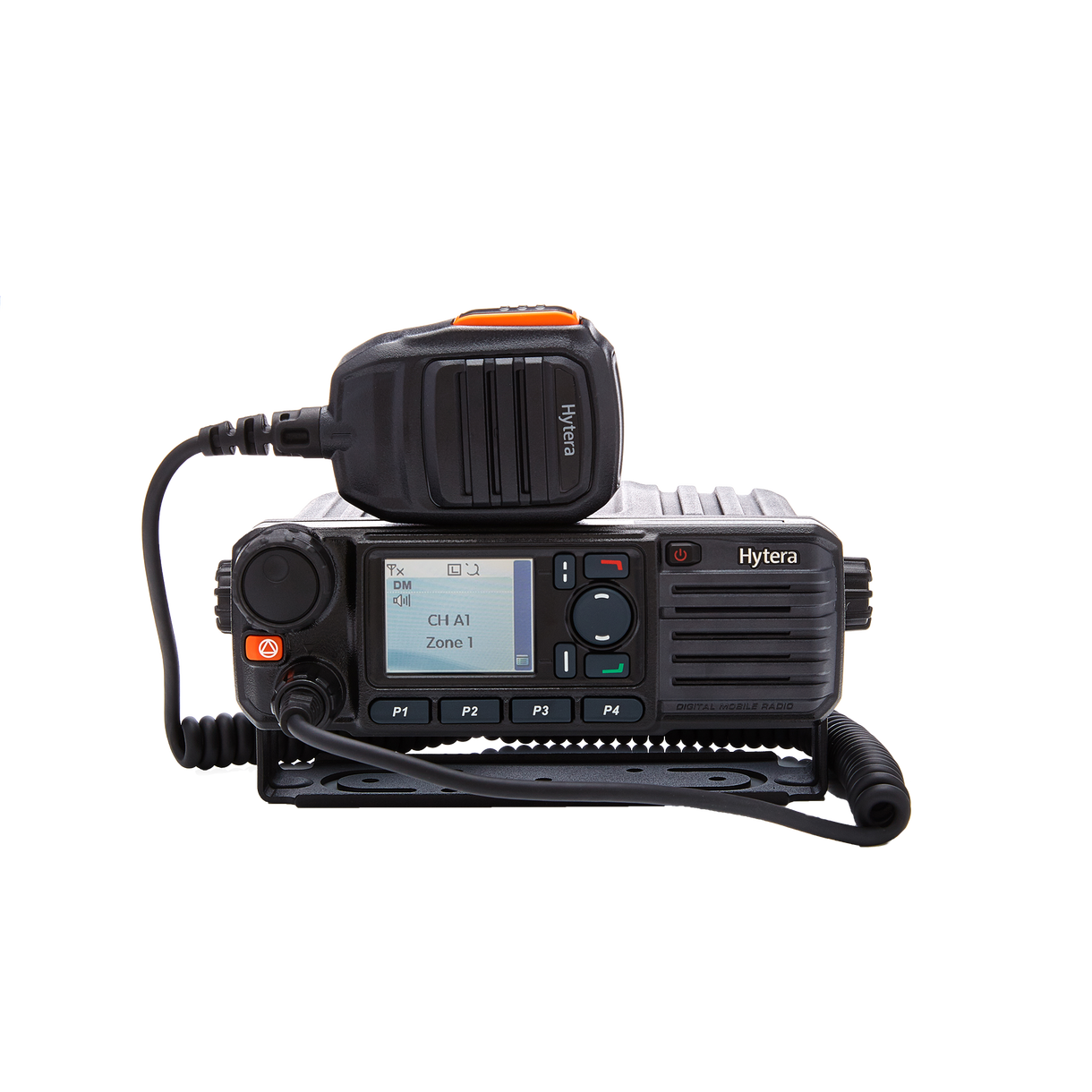

MD785i Full Duplex (Discontinuation Date: March 31st, 2024)
Highlights
Full Duplex Call
Send and receive communications simultaneously to enable a conversation, rather than a classic one-way transmission
Analogue or Digital
It is possible to configure both analogue and digital channels. This enables the user to utilise mix mode scan and switch between the two, making it simpler to migrate to digital
Packed with Functionality
Besides the traditional communication features, the MD785i Full Duplex offers numerous digital functions, including text messages, GPS (optional) and safety features such as lone worker alert and emergency call
Intuitive Operation
The high-resolution LCD screen offers a clear display, even under difficult light conditions. The large keyboard and ergonomic programmable keys facilitate efficient and productive communication
Versatile Applications
Combine the MD785i Full Duplex with your systems to automate actions (telemetry) or expand your communications solution with Hytera XPT Trunking (Tier III) to maximise your channel management
Functions
Full Duplex Calls
Have a conversation on a call rather than a classic one-way transmission
Priority Interrupt
Send a priority transmission to interrupt other calls, ideal for important, critical messages.
Intelligent Audio
Combining noise cancelling technology to remove nusiance noise from the transmission, delivering clear communications.
Priority Scan
Allows the radio to automatically scan and switch the user to receive a priority call if transmitted.
Pseudo Trunking
Using pseudo-trunking, a Hytera patented technology, slots can be shared to improve capacity usage with transmissions either direct to device or to a repeater.
XPT
Hytera XPT (Extended Pseudo Trunking) enables you to use limited spectrum resources more efficiently, dynamically assigning channel resource without needing a dedicated control channel.
Lone Worker
The Lone Worker feature uses a timer in the radio to measure inactivity. If the timer expires, a warning is issued, and if there is no response to that, the alarm is triggered.
Emergency Mode
Raise an alarm with top priority to a base station or to other radios with the pre-programmed emergency mode, identifying the ID of the person issuing the alarm.
GPS
(G) version only (via separate antenna), enabling location based services to improve safety and control.
Accessories for MD785i Full Duplex (Discontinuation Date: March 31st, 2024)
Included as standard with MD785i Full Duplex (Discontinuation Date: March 31st, 2024)
Audio
Mounting
Antenna
Cables
Other
Charger & Power
Related products that work with the MD785i Full Duplex (Discontinuation Date: March 31st, 2024)
DMR Applications
DMR Systems
Technical Specifications
General
- Frequency Range
- UHF1: 400-470MHz
- Channel Capacity
- 1024 (64 zones with 256 channels per zone)
- Digital Protocol
- ETSI-TS102 361-1,2 & 3
- Supply Voltage
- +13.6v ± 15%
- Dimensions(W×H×D)
- 60 x 174 x 200(mm)
- Weight
- 1.7Kg
- Display
- 2.0'' 4 rows 160*128 pixels 262200 colours
- Keypad
- NO (keypad microphone available)
- Programmable Buttons
- 7
Environmental Specifications
- Dust & Water Intrusion
- IP54 Standard
Features
- RRS
- YES
- GPS
- YES (via separate antenna)
- Option Board
- YES
- Intrinsically Safe Option
- NO
- Bluetooth Audio
- Optional (external adaptor)
- Data Services via Bluetooth
- N/A
- Stun / Unstun
- YES
- Remote Monitor
- YES
- IP Site Connect
- YES
- Roaming
- YES
- 5 Tone Signalling
- YES
- 2 Tone Signalling
- YES
- HDC1200 Signalling
- YES
- DTMF (Phone Patch)
- YES
- VOX
- YES
- GPS SMS
- (G) version only
- Priority Scan
- YES
- Emergency Mode
- YES
- Lone Worker
- YES
- Vibration
- NO
- Mandown
- NO
- Digital Encryption
- Basic encryption as standard (10, 32 & 64 character keys). 40 bit Enhanced Encryption as Standard (R7.5 firmware)Advanced encryption (Hytera or DMRA 128 bits and 256bits AES) available via chargeable licence file.
- Multiple Key Encryption Decode
- YES
- Multilanguage Menu
- YES
- Power on & off user logo programming
- YES
- Voice Interrupt
- Yes (TX Interrupt for voice call, emergency call, remote dekey, text message.)
- No of Contacts (Conventional)
- Digital 1024 Analogue 2-Tone 32 Analogue HDC1200 200 Analogue 5-Tone 255
- No of Contacts (Trunking)
- Private Contacts 512 Group Contacts 1024
- Text Messaging
- 256 characters (requires keypad microphone for free text)
- Quick Text Messages
- Up to 25 pre-programmed via CPS
- MPT1327 / 1343 Trunking
- Yes via free of charge licence key
- Tier 3 Trunking
- Available via chargeable licence file
- Over-the-Air Programming
- Yes via smartdispatch 4.0
- Analogue Only Version
- Not Available
- Mixed Mode Operation
- NO
- Full Duplex Calls
- NO
- Single Frequency Repeater
- NO
- Full Duplex Calls
- Tier II (R8.5 firmware) Tier III (R8.0 firmware)
- Single Frequency Repeater
- YES (R8.5 firmware upgrade & chargeable licence)
