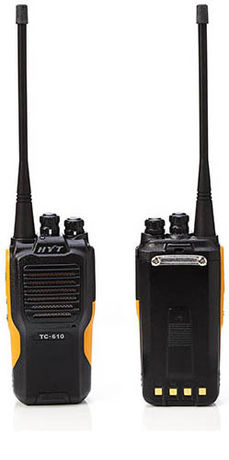

TC-610

Handheld | Analogue

Highlights

diagram indicating highlights of TC-610

Dust-proof and Waterproof

Certified IP66, the device is protected against ingress from dust and powerful water jets, ideal for construction sites or outdoor use.

Clear Communications

Superior audio quality, even in noisy environments, is delivered via a powerful loudspeaker and noise cancelling technology. Two-pin socket for audio accessories.

Rugged, Reliable Design

The TC-610 is equipped with the HYT battery latch to securely connect together the battery and the radio even during extended usage.

Increased Coverage

The user can define low or high transmitting power at the press of a button to save the battery or to cover a larger distance.

Intelligent Energy-saving

The battery save feature is automatically activated if there is no activity on the channel and no operation is performed after an extended period.

Functions

Accessories for TC-610

Included as standard with TC-610 Included as standard with TC-610

Battery

Antenna

Carrying

Charger & Power

Audio

Related products that work with the TC-610

Technical Specifications

General

Frequency Range
VHF: 136-174MHz UHF: 440-470Mhz, 450-470MHz, 470-490MHz
Channel Capacity
16
Battery Life (5-5-90 Duty Cycle)
1200mAh, 9hr
Dimensions
119 X 55 X 33 mm
Weight
Approx 270g
Display
NO
Keypad
NO
Programmable Buttons
2

Environmental Specifications

Dust & Water Intrusion
IP66 Standard

Features

5 Tone Signalling
NO
2 Tone Signalling
NO
HDC1200 Signalling
NO
HDC2400 Signalling
NO
VOX
YES
Channel Scan
YES
Priority Scan
YES
Scrambler
NO
Emergency Call
NO
Lone Worker
NO
Man Down
NO
Vibrate
NO
