WAYFARER

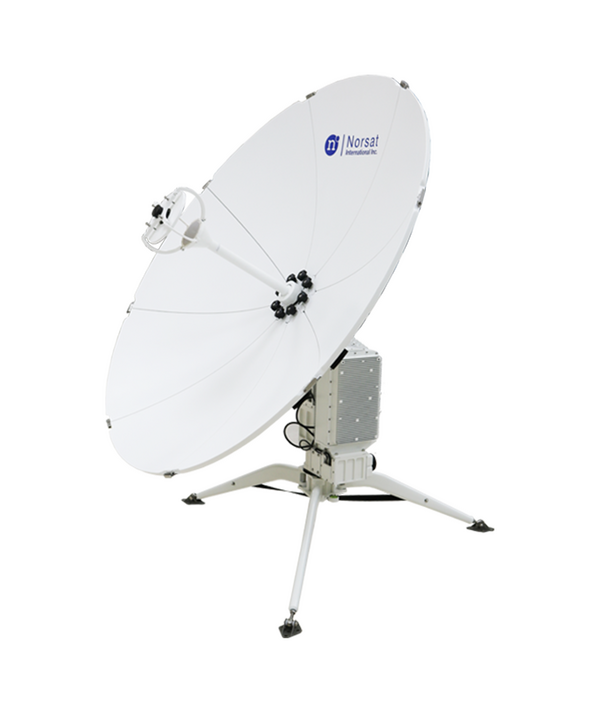

The Norsat WAYFARER commercial 1.2m fly-away antenna
The Norsat WAYFARER™ commercial 1.2m fly-away antenna is a fast deploying, easy-to-use, and compact SATCOM VSAT. This terminal is an excellent choice for commercial applications in various industries. Fly-away antenna offers excellent rugged and reliable satellite links. Ideally suited for remote enterprise, energy, emergency, and media applications.
Highlights
Functions
• Easy and intuitive web-based LinkControl™ Interface
• Rugged and lightweight pedestal design
• Lightweight and durable 6 segment carbon fiber reflector
• Fast, simple, tool-free deployment
• Automatic 3-axis acquisition
• Manual backup pointing operation
• 2-case packing solution
• Wide range of Norsat BUC and LNB configurations
• Set up in 5 minutes
Accessories for WAYFARER
Included as standard with WAYFARER
Related products that work with the WAYFARER
Technical Specifications
ELECTRICAL
- Reflector aperture
- 1.2m
- Reflector material
- Carbon fiber
- Feed configuration
- Center
- Tx frequency
- 13.75 to 14.50 GHz
- Rx frequency
- 10.70 to 12.75 GHz
- Tx gain
- 42.8 + 20log (f/14.125) dBi
- Rx gain
- 41.5 dBi + 20log (f/11.85) dBi
- Polarization
- Linear
- Cross polarization (On-Axis)
- ≥35 dB
- Tx/Rx isolation (port isolation)
- Tx: ≥ 85 dB; Rx: ≥ 40 dB
- Sidelobe
- First sidelobe -14 dB
- Azimuth range
- ± 200°
- Elevation range
- 10° to 90°
- Polarization range
- ± 90°
- Azimuth speed
- 0.1°/s to 3°/s
- Elevation speed
- 0.1°/s to 3°/s
- Polarization speed
- 0.1°/s to 1°/s
- Feed interface
- WR75
- Power supply
- AC110-230V 50/60Hz, rated 200W, 550W max
PACKAGING
- Fiberboard case
- Case 1
- Pedestal assembly Size: 66 cm (L) x 48 cm (W) x 46 cm (H); Weight: ≥26Kg
- Case 2
- Reflector / feed Size: 66 cm (L) x 48 cm (W) x 46 cm (H); Weight: ≥17Kg
- Ruggedized weatherproof case
- Case 1
- Pedestal assembly Size: 66 cm (L) x 48 cm (W) x 46 cm (H); Weight: ≥29Kg
- Case 2
- Reflector / feed Size: 66 cm (L) x 48 cm (W) x 46 cm (H); Weight: ≥20Kg
ENVIRONMENTAL
- Wind load - operational
- 36 km/h
- Wind load - survival
- 61 km/h
- Temperature
- -40°C to +60°C
- Humidity
- 0-95%
- Water ingress
- IP 65 (antenna only)
