Journey Manpack Terminal
Norsat's latest series of ultra-portable satellite terminal

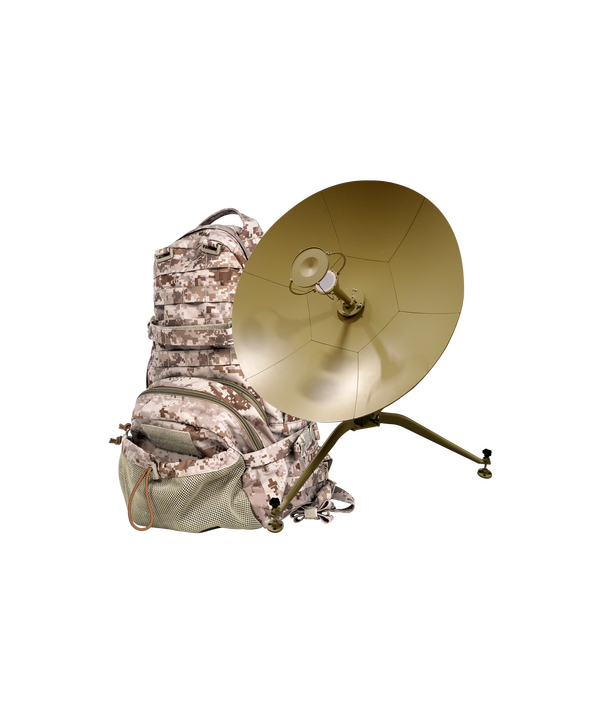

The 0.9m Journey Manpack is a high-performance, ultra-portable satellite terminal designed for military and commercial applications. The Journey Manpack comes in a lightweight, airline checkable, single backpack and provides unmatched durability, maximum portability, HD video and IP transmission and 4+hours of continuous runtime with battery pack.
Highlights
Functions
Unmatched durability
Maximum portability
HD video and IP transmission
4+ hours continuous runtime with battery pack
Optionally equipped with Norsat's Satellite Acquisition Assistant, tools including Spectrum analyzer/GPS/Inclinometer/Compass/Narrow Band Power Meter/DVB S2 receiver/ LinkControl software
Accessories for Journey Manpack Terminal
Included as standard with Journey Manpack Terminal
Related products that work with the Journey Manpack Terminal
Technical Specifications
System - Ku-Band
- G/T (Midband, 20°)
- 17.3 dB/K
- Antenna
- 0.9m Carbon Fiber, Six segments, Parabolic Single Offset
- Tripod
- Elevation/Azimuth
- Antenna Travel
- Azimuth
- +/- 180°
- Elevation
- 10 - 90°
- Polarization
- +/- 90°
- Optional Pointing Tools
Antenna
- Rx Tx
- Frequency
- 10.70 - 12.75 GHz 12.75 - 13.25 GHz, 13.75 - 14.5 GHz
- Midband Gain
- 39 dBi 40 dBi
- Axil Ratio
- -
- Cross-Pol Isolation
- <33 dB on axis
Transmit
- Output Frequency
- 13.75 - 14.5 GHz
- Reference
- 10 MHz
- Reference Level
- 0 +/- 5 dBm
- Gain (typical)
- 75 dB
- Spectral Regrowth
- -26dBc @ 46 dBm
Packaging
- Ku-Band System Weight
- <14 kg
- Backpack
- < 4 kg
Environmental
- Operating Temp
- -40 to +55 °C
- Humidity
- 100%
- Wind Load
- 36 km/h (free-standing) 65 km/h (anchored)
