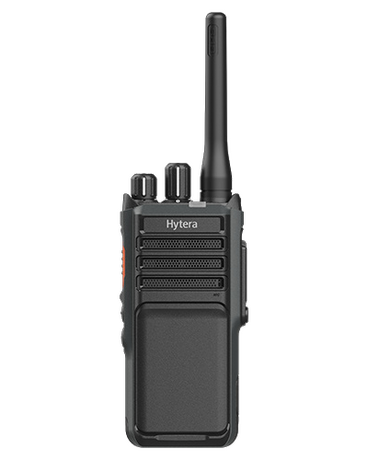

HP509
Professional DMR Portable Two-way Radio
Hytera HP509 is a new-gen professional portable two-way radio that provides reliable voice communications for high-end office buildings, stadiums, industrial parks, schools, hospitals, and more. The universal Type-C port makes programming, upgrading, and charging more convenient than ever before. Durable enough to withstand dust, heat, shock, and water submersion, the HP509 is IP67 and MIL-STD-810H certified.
Highlights
High Sensitivity
With the 0.18µV (-122dBm) sensitivity, the HP5 Series ensures stable push-to-talk voice calls even at the far edge of coverage.

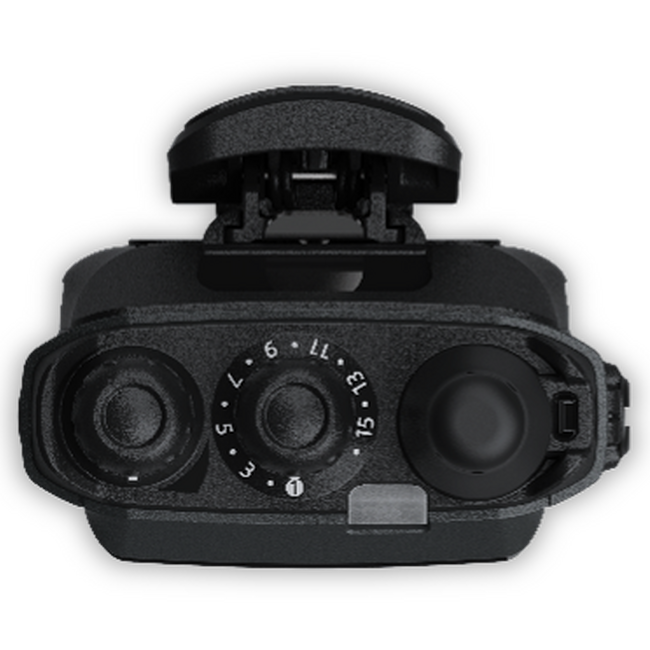

Two knobs on top
Separate knobs for channel selection and on/off/volume
GPS Antenna
Due to the built-in GPS antenna, only a simple baseband antenna is required.
Powerful Speaker
for a high volume that still makes communication possible even with strong ambient noise levels

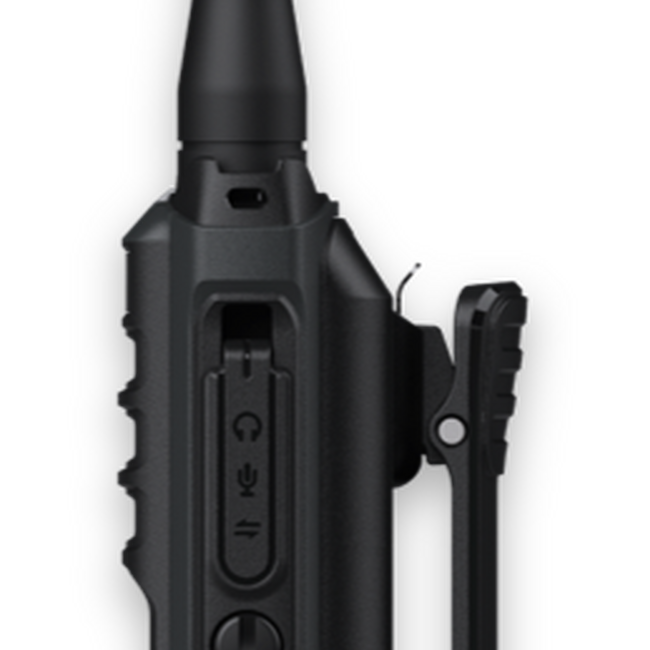

Accessory Connector
Anti-counterfeit 13-pin flat connector
High Reliability
HP5 series is IP67-graded water-proof and dust-proof and meets stringent MIL-STD-810G military requirements for protection against vibration, 1.5-meter drops, extreme temperature, etc

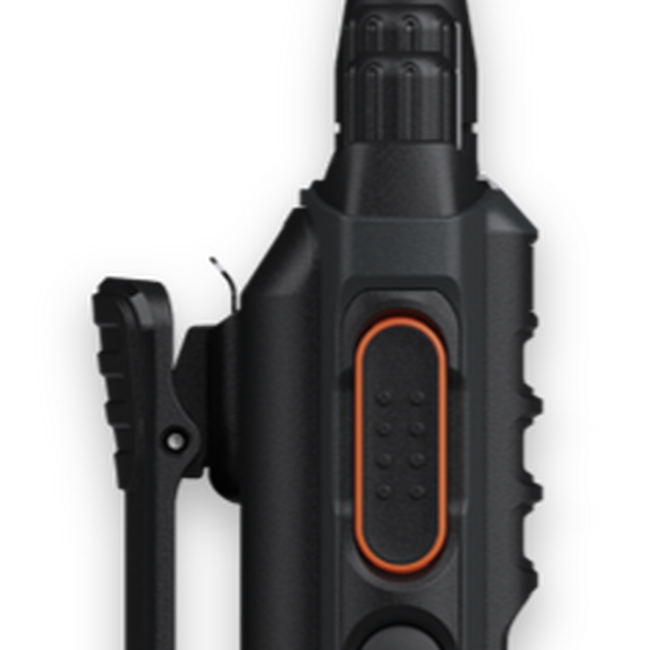

Durable Plastic Rubber Keys
with excellent abrasion and heat resistance
Universal Type-C Port
Recharge the battery using a standard USB cable and power adapter, power bank or car charger. The radio is also programmed and upgraded via this port.
Functions
Crisp, Clear Audio
Purify your voice, and eliminate the noise. The HP509 delivers crystal-clear audio in any environment, thanks to AI-based noise cancellation. This technology suppresses any annoying feedback howling and filters out unwanted ambient noises. So you can feel like talking face to face in every call no matter where you are.
Break Through the Distance
When you go further out, you may encounter degraded communications due to a weak radio signal. With the 0.18μV (‒122dBm) sensitivity, the HP509 provides exceptional communication coverage. It ensures reliable communications even at the far edge of coverage with a weak signal. Wherever you go in the workplace, you can always keep connected.
Versatile Type-C Port
Just share the same USB data cable with your smartphone, then you can charge your radio with a power bank or car charger, or program and upgrade your radio. All of these benefit from the universal Type-C port.
BT, Wirelessly, Conveniently
The HP509 has optional BT 5.2 capability, so you can experience total freedom with no cords when using BT audio accessories. This feature also allows you to pair the radio with your smartphone, and then get radio programming done by the HyTool Radio Manager app on your smartphone.
Track Your People and Device Anywhere
Location tracking is crucial for personal safety especially in emergency situations. The HP509 provides location updates to the dispatcher, thanks to the optional GPS and GLONASS positioning systems. The dispatcher can receive the radio location that is automatically sent with the emergency call, and then allot resources for quick assistance or rescue.
Easier to Use

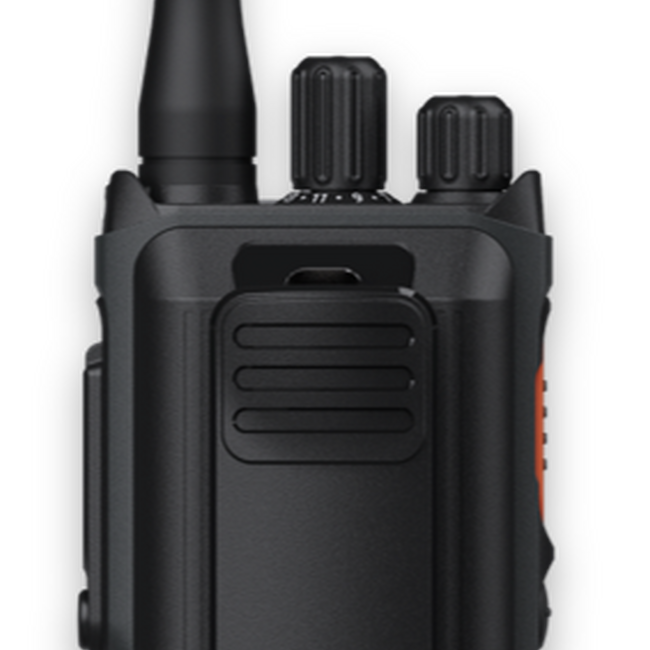

The HP509 has dedicated dual knobs for volume and channel controls, improving your efficiency. The U-shaped slot on the back of the battery allows you to install or remove the belt clip more easily. The enlarged LED indicator makes you know the radio status at a glance, no matter whether the radio is in your hand, on your shoulder, or waist.
Rugged Reliability
The HP509 is built to withstand the harsh conditions that come with all kinds of industry fieldwork. The radio housing is made of polycarbonate with excellent abrasion and heat resistance. And the texture on the back of the radio is a non-slip design. More importantly, this tough radio is IP67-rated and meets stringent MIL-STD-810H military standards for protecting against dust, water, vibrations, 1.5-meter drops, extreme temperatures, and more.
Accessories for HP509
Included as standard with HP509
Antenna
Charger & Power
Mounting
Carrying
Audio
Cables
Related products that work with the HP509
Technical Specifications
General
- Frequency Range
- UHF: 400-470 MHz;VHF: 136-174 MHz
- Channel Capacity
- 256
- Zone Capacity
- 16
- Channel Spacing
- 12.5 kHz/20 kHz/25 kHz
- Operating Voltage
- 7.4 V (rated)
- Battery
- 1500 mAh
- Battey Life(5/5/90 Duty Cycle,High TX Power)
- 15 h (GNSS OFF); 13 h (GNSS ON)
- Dimensions(H×W×D) mm
- 119 mm x 55 mm x 30.5 mm
- Weight
- 265 g
- BT
- BT 5.2 BLE+EDR
Receiver
- Sensitivity
- Analogue: 0.18µV (12dB SINAD)
- Analogue: 0.16µV (12dB SINAD) (typical)
- Digital: 0.18µV / BER 5%
- Selectivity
- TIA-603: 60dB @12.5kHz / 70dB @20/25kHz
- ETSI: 60 dB @12.5kHz / 70dB @20/25kHz
- Intermodulation
- TIA-603: 70 dB
- ETSI: 65 dB
- Spurious response rejection
- TIA-603: 70 dB
- ETSI: 70 dB
- Blocking
- TIA-603: 80 dB
- ETSI: 84 dB
- Hum and noise
- 40 dB @12.5kHz
- 43 dB @20kHz
- 45 dB @25kHz
- Rated audio power output
- 0.5 W
- Rated audio distortion
- <3%
- Audio response
- +1 to -3 dB
- Conducted spurious emission
- < -57 dBm
Transmitter
- RF power output
- UHF: 1W / 4W
- VHF: 1W / 5W
- FM modulation
- 11K0F3E @12.5kHz
- 14K0F3E @20kHz
- 16K0F3E @25kHz
- 4FSK digital modulation
- 12.5kHz data only: 7K60FXD
- 12.5kHz data and voice: 7K60FXW
- Conducted/radiated emission
- -36dBm @<1GHz; -30dBm @>1GHz
- Modulation limiting
- ±2.5kHz @12.5kHz; ±4.0kHz @20kHz; ±5.0kHz @25kHz
- FM hum and noise
- 40dB @12.5kHz; 43dB @20kHz; 45dB @25kHz
- Adjacent channel power
- 60dB @12.5kHz; 70dB @20/25kHz
- Audio distortion
- <3%
- Digital vocoder type
- AMBE+2™
- Digital protocol
- ETSI-TS102 361-1,-2,-3
Environmental Specifications
- Operating Temperature
- -30 ℃ to +60 ℃ (Radio only - Battery -20 ℃)
- Storage Temperature
- -40 ℃ to +85 ℃
Location Service
- GNSS
- GPS, GPS+GLONASS, GPS+BDS
- TTFF (time to first fix) cold start
- < 1 minute
- TTFF (time to first fix) hot start
- < 10 seconds
- Horizontal accuracy
- < 5 meters
