30030000000141 - SM25A3

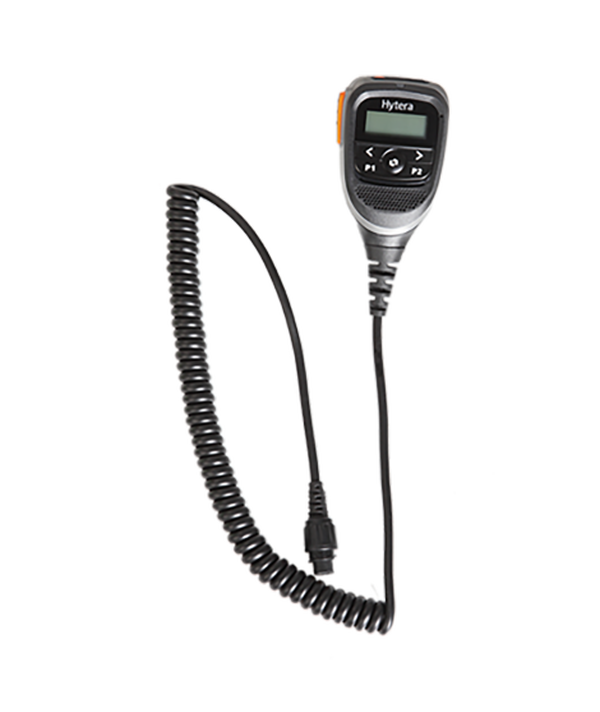

Remote Speaker Microphone
It can control functions of digital wireless ad hoc network repeaters such as power on and off, audio output and input, emergency alarm, display and configuration parameters (status information display, volume adjustment, power switching, frequency switching, etc.)
Highlights
Functions
Technical Specifications
Specifications
- Dimensions (mm)
- 92.8 x 62.5 x 32.1 mm
- Weight
- about 160g
- Colour
- black
- PTT key
- available
- Emergency key
- available
- Connector
- 10-pin connector
- Cable length
- max. 2.2 m (fully stretched coiled cord)
- Microphone sensitivity
- –42±3 dB @ 1 kHz 3.0 V 2.2 K, 0 dB = 1 V/Pa
- Speaker power
- 2 W (rated); 3 W (max.)
- Speaker impedance
- 20 Ω ±15% @ 1.5 kHz
- Speaker frequency response
- 97 ±3 dB @ 1 kHz 2 W/30 cm
- Ingress protection
- IP54
- Operating temperature
- -30°C to 65°C
- Storage temperature
- -40°C to 85°C
- PTT cycles
- ≥ 100,000
- Applicable devices
- E-pack100, E-pack200, E-center
